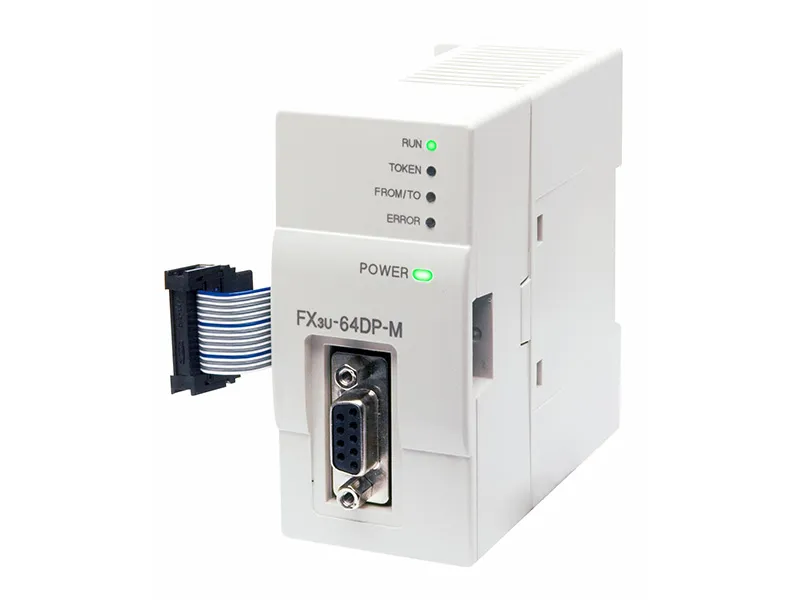

What is the Mitsubishi Electric FX3U-64DP-M?

The Mitsubishi Electric FX3U-64DP-M is a data link/Communication in the MELSEC-F (FX) Series. FX3U-64DP-M PROFIBUS-DP Master Block. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryData link/Communication
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineFX3U-64DP-M PROFIBUS-DP Master Block

Specifications

Applicable PLC[FX3U/FX3UC] The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3UC PLC. Cannot connect to the FX3UC-32MT-LT(-2).
Mass (weight)Approx. 0.2 kg
Transmission TypeBus network
Unit typePROFIBUS-DP master Class 1
Transmission Data (Maximum Exchanged Data Length)Normal service mode: 32 bytes/slave Extended service mode (default): 244 bytes/slave
Number of connectable units to the main unit1 module
Maximum Number of FX3U-64DP-M at one PROFIBUS-DP Network3 units In case of multi master configuration, all master stations must be FX3U-64DP-M.
Supported transmission speed (bps) and bus length: 9.6k, 19.2k, 93.75k1,200 m/segment
Supported transmission speed (bps) and bus length: 187.5k1,000 m/segment
Supported transmission speed (bps) and bus length: 500k400 m /segment
Supported transmission speed (bps) and bus length: 1.5M200 m/segment
Supported transmission speed (bps) and bus length: 3M, 6M, 12M100 m/segment
Maximum Number of Repeaters/Communication Path3
Maximum number of stations/segment32 stations
Maximum Number of Slaves/Master64 slaves
PNO-IDF364h
Connector: PROFIBUS-DP networkPort for PROFIBUS-DP network (9 pin D-SUB Connector)
Global controlSynchronization, unsynchronization, freeze and unfreeze modes are supported
Terminal resistorNot built in.
LED Name: RUN: LED color: GreenLit: During normal operation
LED Name: TOKEN: LED color: GreenLit when token is maintained.
LED Name: FROM/TO: LED color: GreenLit when accessing from PLC by FROM/TO instruction.
LED Name: ERROR: LED color: RedUnlit: During normal operation Otherwise: An error occurs.
LED Name: POWER: LED color: GreenLit while 24 V DC power is properly supplied from PLC.

Power supply specifications

Internal power supply155 mA at 24 V DC is supplied from the internal power supply in main unit

Specifications

Ambient temperature0 to 55°C (32 to 131°F) when operating and -25 to 75°C (-13 to 167°F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage: 500 V AC for one minuteBetween communication connector frame and ground terminal of PLC main unit
Insulation resistance: 5 MΩ or higher by 500 V DC insulation resistance testerBetween communication connector frame and ground terminal of PLC main unit
GroundingClass D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dust
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.

FX3U-64DP-M: frequently asked questions

When can FX3U-64DP-M be shipped?

FX3U-64DP-M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-64DP-M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-64DP-M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-64DP-M, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric FX3U-4DA-ADP – Mitsubishi MELSEC-F (FX) Series Analog
Mitsubishi Electric
FX3U-4DA-ADP

Mitsubishi MELSEC-F (FX) Series Analog

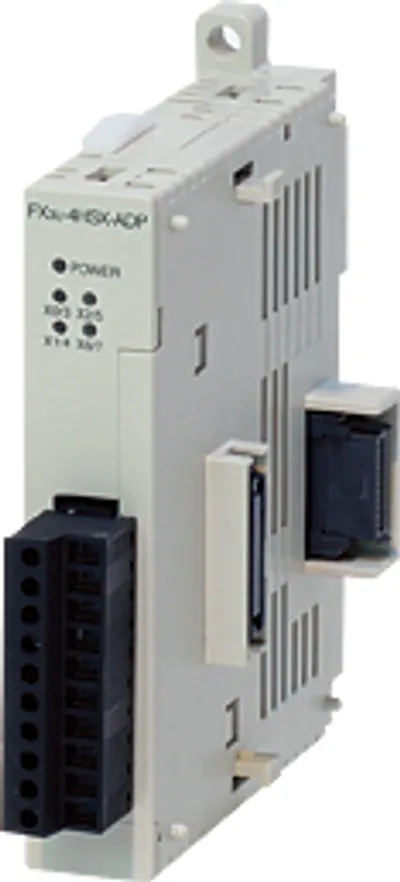

Mitsubishi Electric FX3U-4HSX-ADP – Mitsubishi MELSEC-F (FX) Series High-speed counter
Mitsubishi Electric
FX3U-4HSX-ADP

Mitsubishi MELSEC-F (FX) Series High-speed counter

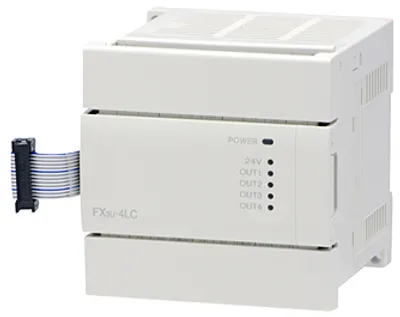

Mitsubishi Electric FX3U-4LC – Mitsubishi MELSEC iQ-F Series Analog input/output module
Mitsubishi Electric
FX3U-4LC

Mitsubishi MELSEC iQ-F Series Analog input/output module

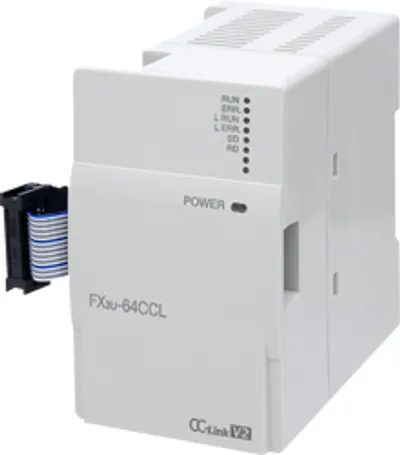

Mitsubishi Electric FX3U-64CCL – Mitsubishi MELSEC iQ-F Series Network/communication module
