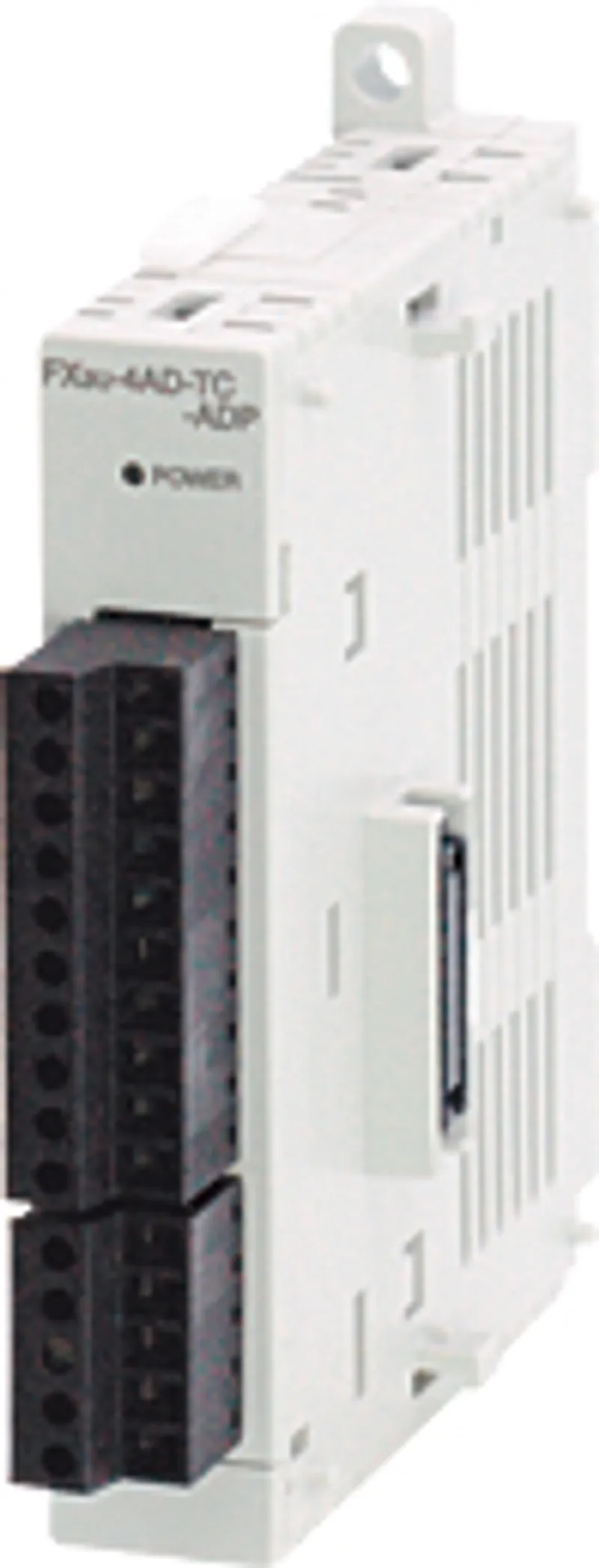

The Mitsubishi Electric FX3U-4AD-TC-ADP is a analog in the MELSEC-F (FX) Series. Thermocouple thermometer input: 4ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Outline	Thermocouple thermometer input: 4ch

Specifications

Applicable PLC	FX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT is Ver.1.30 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2).
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)	0.1 kg
Temperature sensor/Temperature control: Number of input channels	4 channels
Temperature sensor/Temperature control: Input signal	Thermocouple type K or J JIS C 1602-1995 Note that the same type of thermocouple must be used for all channels.
Temperature sensor/Temperature control: Rated temperature range: Type K	-100℃ to +1000℃ (-148°F to +1832°F)
Temperature sensor/Temperature control: Rated temperature range: Type J	-100℃ to +600℃ (-148°F to +1112°F)
Temperature sensor/Temperature control: Digital output: Type K	-1000 to +10000 (-1480 to +18320) Digital values for Celsius setting are given in parentheses.
Temperature sensor/Temperature control: Digital output: Type J	-1000 to +6000 (-1480 to +11120) Digital values for Celsius setting are given in parentheses.
Temperature sensor/Temperature control: Resolution: Type K	0.4℃ (0.72°F)
Temperature sensor/Temperature control: Resolution: Type J	0.3℃ (0.54°F)
Temperature sensor/Temperature control: Overall accuracy, Measurement accuracy	±0.5% for +1°C full scale
Temperature sensor/Temperature control: Conversion speed: FX3U/FX3UC Series PLC	200 μs (The data will be updated at every scan time.)
Temperature sensor/Temperature control: Conversion speed: FX3S/FX3G/FX3GC Series PLC	250 μs (The data will be updated at every scan time.)
Temperature sensor/Temperature control: Control system	In accordance with a sequence program
Temperature sensor/Temperature control: Isolation method	・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC 15 mA (internal power supply from PLC main unit) 24 V DC +20% -15% 45 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
