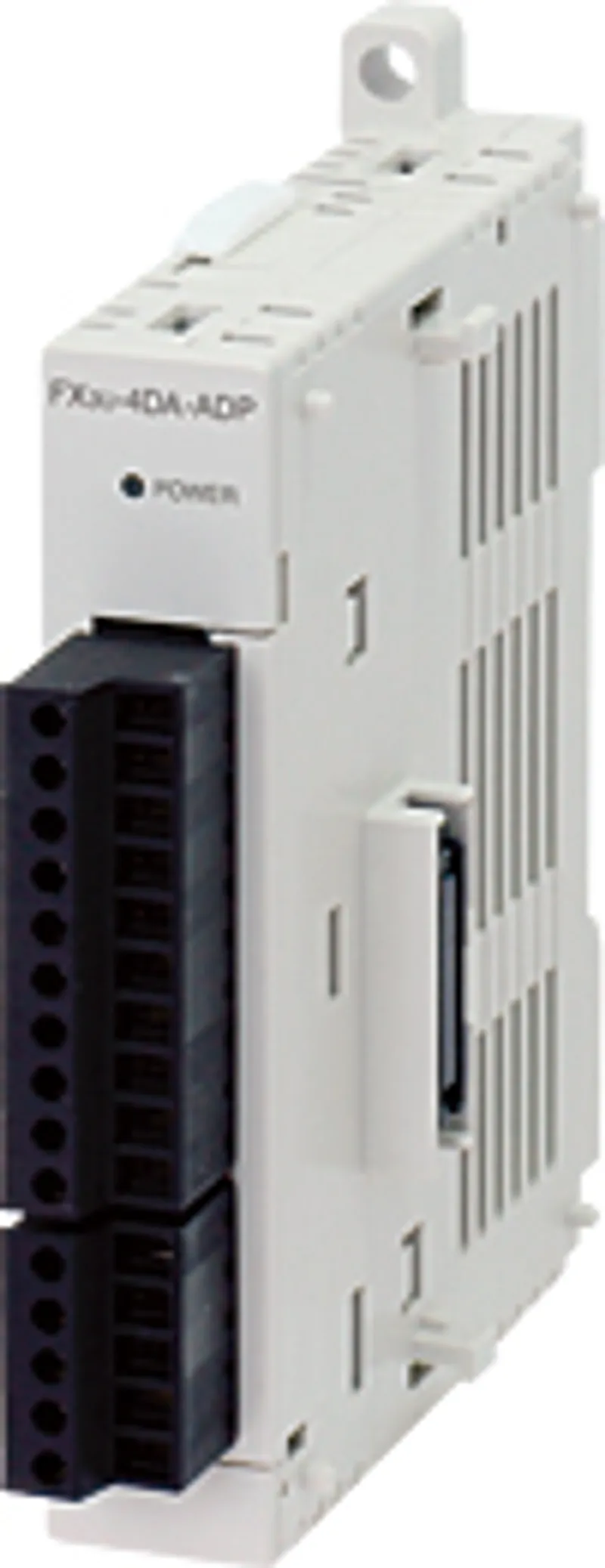

FX3U-4DA-ADP Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX3U-4DA-ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX3U-4DA-ADP be shipped?

FX3U-4DA-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-4DA-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-4DA-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-4DA-ADP, subject to availability and destination.

The Mitsubishi Electric FX3U-4DA-ADP is a analog in the MELSEC-F (FX) Series. Analog output: 4 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Outline	Analog output: 4 ch

Specifications

Applicable PLC	FX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT is Ver.1.20 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2).
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)	0.1 kg
Analog output: Analog output range: Voltage output	0 V to 10 V DC (External load: 5 kΩ to 1 MΩ)
Analog output: Analog output range: Current output	4 mA to 20 mA DC (External load: 500 Ω or less)
Analog output: No. of output channels	4 channels
Analog output: Output characteristics	The output mode (voltage/current output) can be set for each channel.
Analog output: Digital input	12 bits, binary
Analog output: Resolution: Voltage output	2.5 mV (10 V × 1/4000)
Analog output: Resolution: Current output	4 μA (16 mA × 1/4000)
Analog output: Total accuracy: Voltage output	Ambient temperature: 25°C±5°C ±0.5% (±50 mV) for 10 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±100 mV) for 10 V full scale If the external load resistance (Rs) is less than 5 kΩ, the accuracy increases as shown in the following formula: (Increase: 100 mV per 1%) (47 × 100) ÷ (Rs + 47) - 0.9 (%)
Analog output: Total accuracy: Current output	Ambient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale
Analog output: Time required for D/A conversion: FX3U/FX3UC Series PLC	200 μs (The data will be updated at every scan time.)
Analog output: Time required for D/A conversion: FX3S/FX3G/FX3GC Series PLC	250 μs (The data will be updated at every scan time.)
Analog output: Isolation method	・The photocoupler is used to insulate the analog output area from the PLC. ・The DC/DC converter is used to insulate the analog output area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC, 15 mA (internal power supply from PLC main unit) 24 V DC +20% -15% 150 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
