Home / Mitsubishi Electric (Factory Automation) / Mitsubishi MELSEC-F (FX) Series – Positioning / FX2N-1PG Mitsubishi MELSEC-F (FX) Series Positioning

Available on request

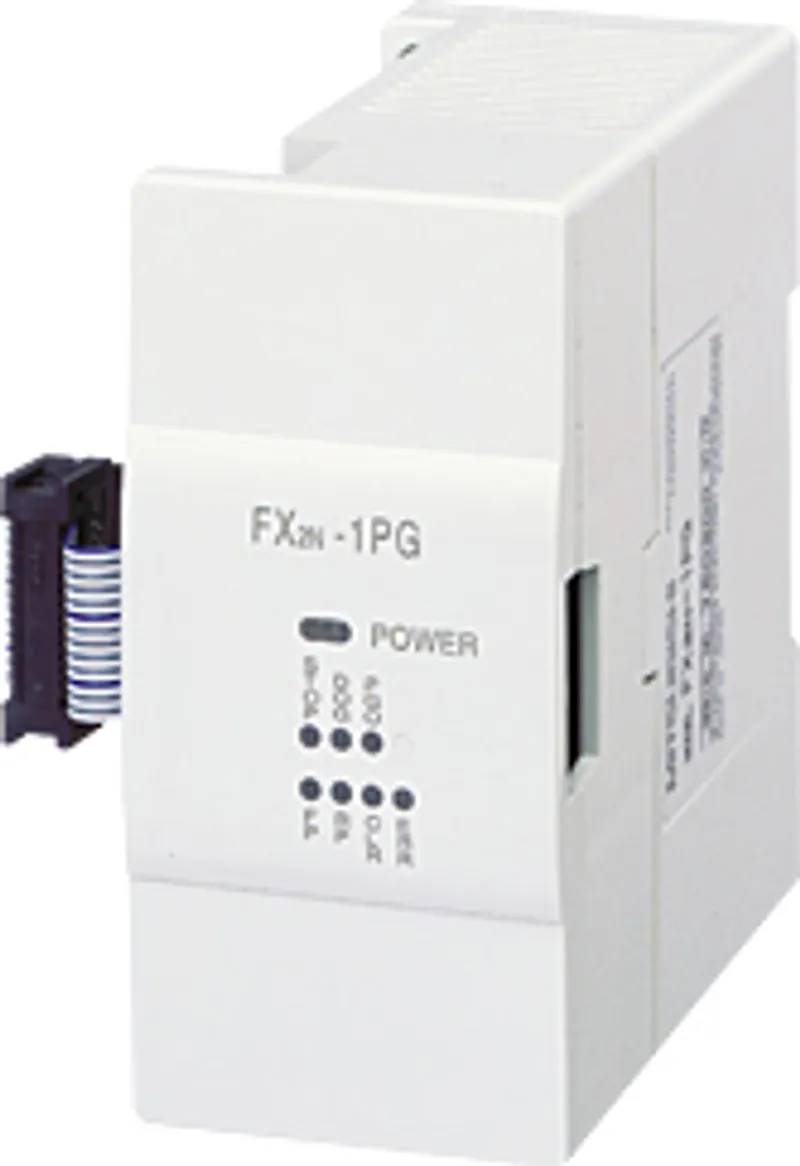

FX2N-1PG Mitsubishi MELSEC-F (FX) Series Positioning

MPN: FX2N-1PG · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-1PG (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Positioning
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-1PG now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-1PG, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-1PG be shipped?

FX2N-1PG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-1PG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-1PG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-1PG, subject to availability and destination.

The Mitsubishi Electric FX2N-1PG is a positioning in the MELSEC-F (FX) Series. Pulse output: 1-axis (independent). Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Positioning
Sales status	2015/12 Discontinued (Mitsubishi Electric)
Outline	Pulse output: 1-axis (independent)

Specifications

Applicable PLC	FX2N, FX3U, FX2NC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3UC.
Number of occupied I/O points	Number of I/O occupied 8 points (taken from either the input or output points of the PLC)
Mass (weight)	0.3 kg
Programming language	Sequence program (BFM can be specified directly with the operand of the FROM/TO instruction or the applied instruction.)
Pulse output system	Open collector system
Pulse output form	Pulse train + Direction, Forward/reverse pulse train
Number of control axes	1 independent axis
Maximum frequency	100 kHz
Acceleration/deceleration process	Trapezoidal ac-/deceleration control
Control unit	pulse, μm, 10 -4 inch, mdeg
Detection of absolute position (Reads out the current value of ABS.)	Using the ABS instruction of the PLC
Positioning range	-999,999 to +999,999 [× (Position data magnification) pulse] -999,999 to +999,999 [× (Position data magnification) μm] -999,999 to +999,999 [× (Position data magnification) × 10 -4 inch] -999,999 to +999,999 [× (Position data magnification) mdeg] The position data magnification sets the 1, 10,10 2 or 10 3 in parameters.
Position data	1 point (set in sequence program)

Power supply specifications

Power supply voltage

5 V DC 55 mA (internal power supply from PLC main unit) 24 V DC ±10% 40 mA (External power supply)

Input specifications

Control input	3 points (STOP, DOG, PG0)
Input signal voltage: STOP, DOG	24 V DC
Input signal voltage: PG0	5 to 24 V DC
Input signal form	Contact or open collector transistor
Input signal current: STOP, DOG	7 mA
Input signal current: PG0	20 mA or less
Input ON sensitivity: STOP, DOG	4.5 mA or more
Input ON sensitivity: PG0	4 mA or more
Input OFF sensitivity: STOP, DOG	1.5 mA or less
Input OFF sensitivity: PG0	0.5 mA or less
Input receiving speed: DOG	1 ms
Input receiving speed: STOP	4 ms
Input receiving speed: PG0	4 μs
Insulation of circuit	Photocoupler insulation
Indication of input operation	LED is lit when input is on

Output specifications

No. of output points	3 points (FP, RP, CLR)
Output form: Pulse output section (FP/RP)	5 to 24 V DC (Power supplied from VIN terminal)
Rated load voltage: Clear signal (CLR)	5 to 24 V DC
Maximum load current: Pulse output section (FP/RP)	20 mA or less
Maximum load current: Clear signal (CLR)	20 mA or less
VIN current consumption: Pulse output section (FP/RP)	35 mA or less
Output frequency	100 kHz
Indication of output operation	LED is lit when output is on

Specifications

Ambient temperature	0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between all external terminals and ground terminal of PLC main unit: 500 V AC for 1 min
Insulation resistance	Between all external terminals and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
