What is the Mitsubishi Electric AJ65SBT-RPT?

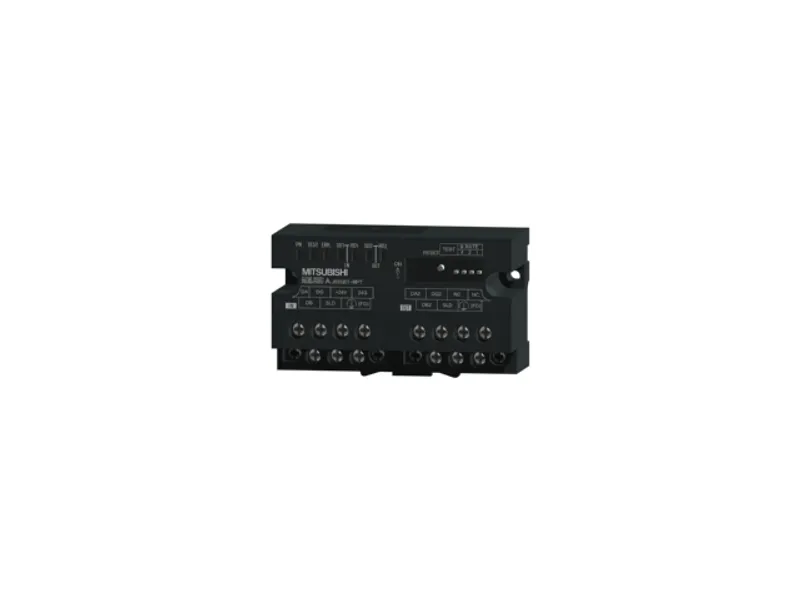

The Mitsubishi Electric AJ65SBT-RPT is a bridge/repeater in the MELSEC network modules. T-junction module with repeater function. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryBridge/repeater
TypeRepeater
SubtypeT-junction repeater
OutlineT-junction module with repeater function

CC-Link specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum number of stages connected to configure segmentAJ65SBT-RPT only: 10 stage Combination of AJ65SBT-RPT and AJ65SBT-RPS: 4th stage Combination of AJ65SBT-RPT and one of AJ65FBTA-RPH, AJ65BTS-RPH, AJ65SBT-RPG, or AJ65BT-RPI: 3rd stage
Maximum transmission distance of each segmentVaries according to transmission rate
Station numberNone
Maximum number of connected stations64
Number of occupied stations0 (none)

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3.5 screw)
Module power supply: Voltage20.4...26.4 V DC
Module power supply: Current60.0 mA (at TYP. 24 V DC)
External dimensions: Height50 mm
External dimensions: Width87.3 mm
External dimensions: Depth40 mm
Weight0.2 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65SBT-RPT: frequently asked questions

When can AJ65SBT-RPT be shipped?

AJ65SBT-RPT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBT-RPT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBT-RPT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBT-RPT, subject to availability and destination.
