AJ65SBT2B-64DA Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65SBT2B-64DA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65SBT2B-64DA be shipped?

AJ65SBT2B-64DA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBT2B-64DA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBT2B-64DA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBT2B-64DA, subject to availability and destination.

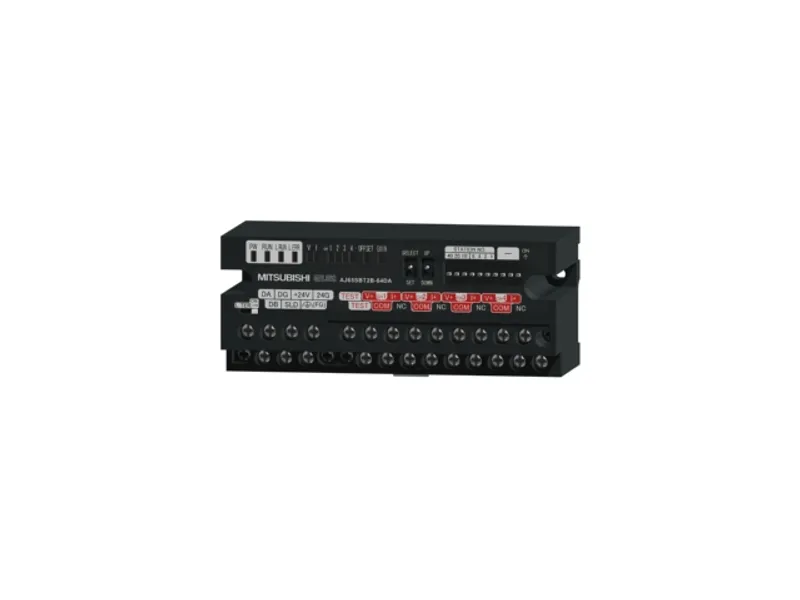

The Mitsubishi Electric AJ65SBT2B-64DA is a remote I/O in the MELSEC network modules. 4 channels, input (resolution): 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 200 µs/channel, 2-piece terminal block type, number of occupied stations: 1. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Analog I/O
Subtype	Analog output
Outline	4 channels, input (resolution): 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 200 µs/channel, 2-piece terminal block type, number of occupied stations: 1

Specifications

Number of analog output points	4 points (4 channels)
Digital input	-12288...+12287, -16384...+16383, -288...+12287
Analog output: Voltage	-10...+10 V DC (external load resistance 1 kΩ...1 MΩ)
Analog output: Current	0...20 mA DC (external load resistance 0...600 Ω)
I/O characteristics, resolution: Output range	Digital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 V	0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage output: 1...5 V	0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage output: -10...10 V	-16000...16000 (0.625 mV)
I/O characteristics, resolution: Voltage output: User range setting 2 (-10...10 V)	-12000...12000 (0.333 mV)
I/O characteristics, resolution: Current output: 0...20 mA	0...12000 (1.66 µA)
I/O characteristics, resolution: Current output: 4...20 mA	0...12000 (1.33 µA)
I/O characteristics, resolution: Current output: User range setting 1 (0...20 mA)	0...12000 (0.95 µA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC	±0.2 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC	±0.3 %
D/A conversion speed	200 µs/channel
Output short protection	Protected
Isolation method	Between communication system terminals and analog outputs: Photocoupler Between power supply system terminals and analog outputs: Photocoupler Between channels: Non-isolation
Dielectric withstand voltage	Between all power supply and communication system terminals and all analog output terminals: 500 V AC for 1 minute
Station type	Remote device station (Ver. 1 remote device station)
Number of occupied stations	1 station
Module power supply: Voltage	24 V DC (20.4...28.8 V DC)
Module power supply: Current	0.24 A (at 24 V DC)
Module power supply: Inrush current	2.6 A, 3.2 ms or less
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O part: 18-point two-piece terminal block (M3 screw)
External dimensions: Height	50 mm
External dimensions: Width	122 mm
External dimensions: Depth	54 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
