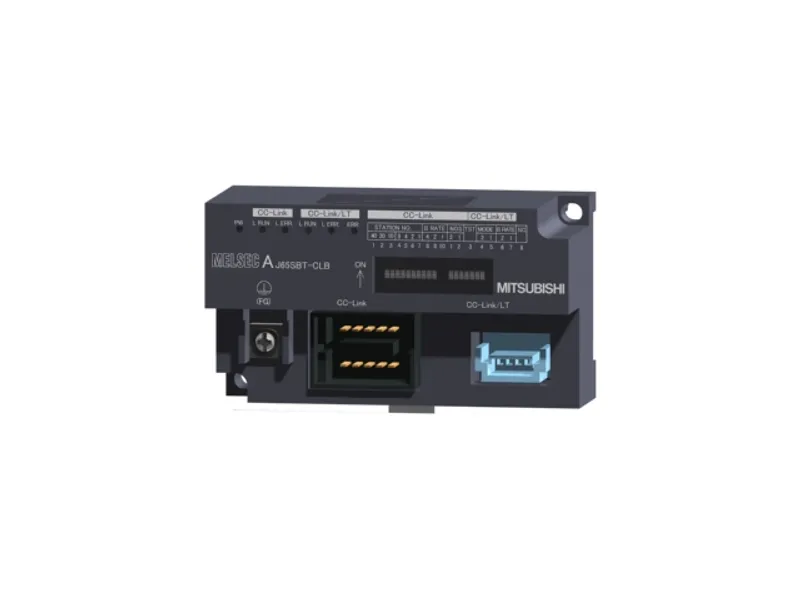

AJ65SBT-CLB Mitsubishi MELSEC network modules Bridge/repeater

MPN: AJ65SBT-CLB · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65SBT-CLB (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AJ65SBT-CLB now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65SBT-CLB, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65SBT-CLB be shipped?

AJ65SBT-CLB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBT-CLB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBT-CLB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBT-CLB, subject to availability and destination.

The Mitsubishi Electric AJ65SBT-CLB is a bridge/repeater in the MELSEC network modules. CC-Link - CC-Link/LT bridge module, number of occupied stations: 2/4/8 (4 stations x 2) stations. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge/repeater
Type	Bridge
Subtype	CC-Link/LT bridge
Sales status	2025/03 Discontinued (Mitsubishi Electric)
Outline	CC-Link - CC-Link/LT bridge module, number of occupied stations: 2/4/8 (4 stations x 2) stations

Specifications

CC-Link side: CC-Link station type	Remote device station (Ver. 1 remote device station)
CC-Link side: CC-Link version	Ver. 1.10
CC-Link side: Number of occupied stations: 2 stations	64 points each for RX and RY (16 points are used in the system) 8 points each for RWr and RWw
CC-Link side: Number of occupied stations: 4 stations	128 points each for RX and RY (16 points are used in the system) 16 points each for RWr and RWw
CC-Link side: Number of occupied stations: 8 stations (4 occupied stations × 2 modules)	256 points each for RX and RY (32 points are used in the system) 32 points each for RWr and RWw
CC-Link side: AJ65SBT-CLB connection position	No restrictions
CC-Link side: External wiring Connection system	One-touch connector for communication (sold separately)
CC-Link/LT side: Control specifications: Maximum number of link points. Number in parentheses assumesuse of the same I/O addresses	224 points (448 points)
CC-Link/LT side: Control specifications: Number of link points per station. Number in parentheses assumes use of the same I/O addresses	4-point mode: 4 points (8 points) 8-point mode: 8 points (16 points) 16-point mode: 16 points (32 points)
CC-Link/LT side: Communication specifications: Transmission speed	2.5 Mbps/625 kbps/156 kbps
CC-Link/LT side: Communication specifications: Communication method	Broadcast polling method
CC-Link/LT side: Communication specifications: Network topology	T-branch system
CC-Link/LT side: Communication specifications: Error control system	CRC
CC-Link/LT side: Communication specifications: Number of connected modules	56 modules
CC-Link/LT side: Communication specifications: Remote station number	1...56
CC-Link/LT side: Communication specifications: AJ65SBT-CLB connection position	Connected at the end of the trunk line
CC-Link/LT side: Communication specifications: Connection cable	Dedicated flat cable (0.75mm 2 ×4), VCTF cable, high flexible cable
Protection degree	IP2X
Module power supply: Voltage	24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %)
Module power supply: Current	0.075 A (at 24 V DC)
Module power supply: Current on startup	0.165 A (at 24 V DC)
External dimensions: Height	49 mm
External dimensions: Width	87 mm
External dimensions: Depth	40 mm
Weight	0.09 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
