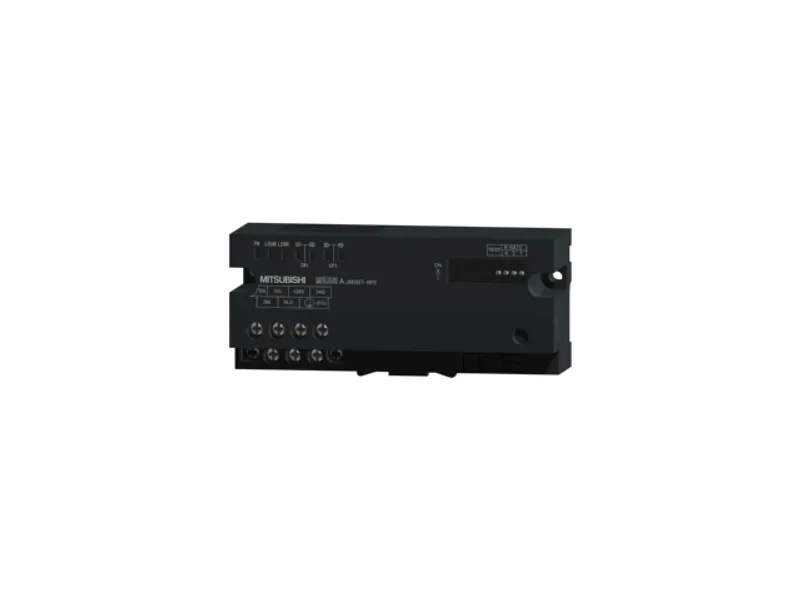

AJ65SBT-RPS Mitsubishi MELSEC network modules Bridge/repeater

MPN: AJ65SBT-RPS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65SBT-RPS be shipped?

AJ65SBT-RPS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBT-RPS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBT-RPS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBT-RPS, subject to availability and destination.

The Mitsubishi Electric AJ65SBT-RPS is a bridge/repeater in the MELSEC network modules. For SI/QSI optical fiber cables (using two of the same product). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge/repeater
Type	Repeater
Subtype	Optical repeater
Outline	For SI/QSI optical fiber cables (using two of the same product)

Optical communication specification

Communication cable	SI optical cables, H-PCF optical cables, Broad-band H-PCF Optical Cables, QSI optical cables
Applicable connector	2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Maximum transmission distance of optical fiber cable between repeaters	SI optical fiber cable: 500 m H-PCF/Broadband H-PCF/QSI optical fiber cable: 1000 m

CC-Link specifications

Transmission speed	156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum number of stages connected to configure segment	AJ65BT-RPS only: 3rd stage Combination of AJ65SBT-RPS and AJ65SBT-RPG: 2nd stage Combination of AJ65SBT-RPG/AJ65SBT-RPS and one of AJ65FBTA-RPH, AJ65BTS-RPH, or AJ65BT-RPI: 2nd stage Combination of AJ65SBT-RPS and AJ65SBT-RPT: 4th stage
Maximum transmission distance of each segment	Varies according to transmission rate
Maximum number of connected stations	64
Number of occupied stations	0 (none)

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw)
Module power supply: Voltage	20.4...26.4 V DC
Module power supply: Current	60.0 mA (at TYP. 24 V DC)
External dimensions: Height	50 mm
External dimensions: Width	118 mm
External dimensions: Depth	40 mm
Weight	0.2 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
