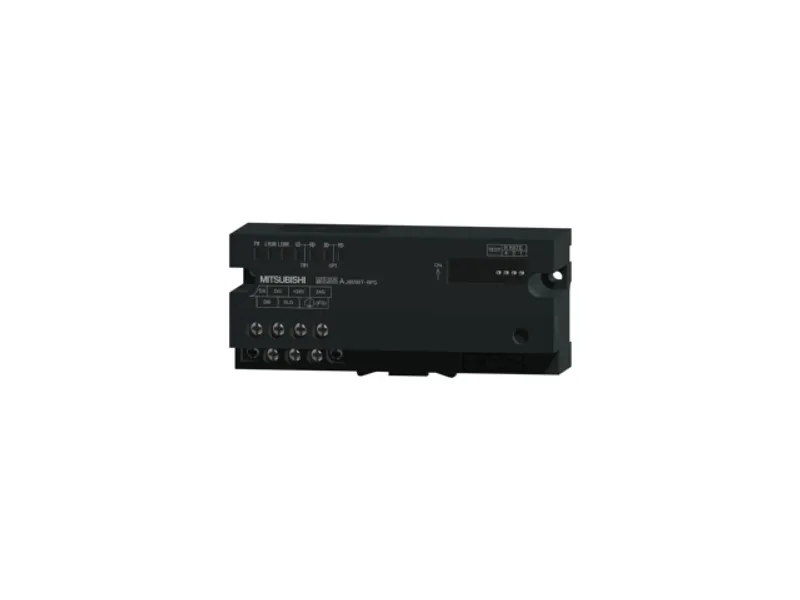

What is the Mitsubishi Electric AJ65SBT-RPG?

The Mitsubishi Electric AJ65SBT-RPG is a bridge/repeater in the MELSEC network modules. For GI optical fiber cables (using two of the same product). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryBridge/repeater
TypeRepeater
SubtypeOptical repeater
OutlineFor GI optical fiber cables (using two of the same product)

Optical communication specification

Communication cableGI-50/125 optical cables
Applicable connector2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Maximum transmission distance of optical fiber cable between repeaters2000 m

CC-Link specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum number of stages connected to configure segmentAJ65BT-RPG only: 2nd stage Combination of AJ65SBT-RPS and AJ65SBT-RPG: 2nd stage Combination of AJ65SBT-RPG/AJ65SBT-RPS and one of AJ65FBTA-RPH, AJ65BTS-RPH, or AJ65BT-RPI: 2nd stage Combination of AJ65SBT-RPG and AJ65SBT-RPT: 3rd stage
Maximum transmission distance of each segmentVaries according to transmission rate
Maximum number of connected stations64
Number of occupied stations0 (none)

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw)
Module power supply: Voltage20.4...26.4 V DC
Module power supply: Current60.0 mA (at TYP. 24 V DC)
External dimensions: Height50 mm
External dimensions: Width118 mm
External dimensions: Depth40 mm
Weight0.2 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
