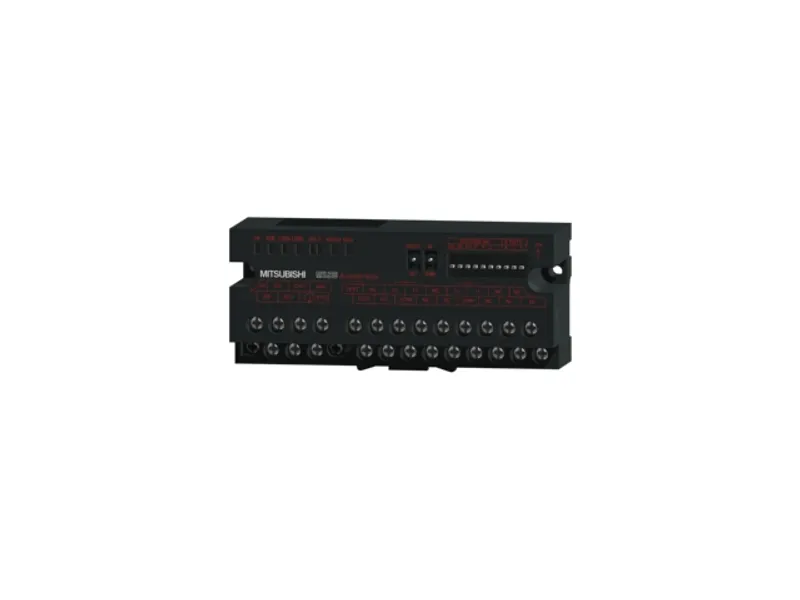

What is the Mitsubishi Electric AJ65SBT-62DA?

The Mitsubishi Electric AJ65SBT-62DA is a remote I/O in the MELSEC network modules. 2 channels, input (resolution): 0...4000, -4000...4000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 1 ms/channel, terminal block type, number of occupied stations: 1. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeAnalog I/O
SubtypeAnalog output
Outline2 channels, input (resolution): 0...4000, -4000...4000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 1 ms/channel, terminal block type, number of occupied stations: 1

Specifications

Number of analog output points2 points (2 channels)
Digital inputVoltage: -4096...+4095 Current: 0...4095
Analog output: Voltage-10...+10 V DC (external load resistance 2 kΩ...1 MΩ)
Analog output: Current0...20 mA DC (external load resistance 0...600 Ω)
I/O characteristics, resolution: Output rangeDigital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 V0...4000 (1.25 mV)
I/O characteristics, resolution: Voltage output: 1...5 V0...4000 (1 mV)
I/O characteristics, resolution: Voltage output: -10...10 V-4000...4000 (2.5 mV)
I/O characteristics, resolution: Voltage output: User range setting 1 (-10...10 V)-4000...4000 (2.5 mV)
I/O characteristics, resolution: Voltage output: User range setting 2 (0...5 V)0...4000 (1 mV)
I/O characteristics, resolution: Current output: 0...20 mA0...4000 (5 µA)
I/O characteristics, resolution: Current output: 4...20 mA0...4000 (4 µA)
I/O characteristics, resolution: Current output: User range setting 3 (0...20 mA)0...4000 (4 µA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ゚C±0.2 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ゚C±0.4 %
D/A conversion speed1 ms/channel
Absolute maximum output: Voltage±12 V
Absolute maximum output: Current21 mA
Output short protectionProtected
Isolation methodBetween communication system terminals and analog outputs: Photocoupler Between power supply system terminals and analog outputs: Transformer Between channels: Non-isolation
Dielectric withstand voltageBetween all power supply and communication system terminals and all analog output terminals: 500 V AC for 1 minute
Station typeRemote device station (Ver. 1 remote device station)
Number of occupied stations1 station
Module power supply: Voltage24 V DC (20.4...26.4 V DC)
Module power supply: Current0.16 A (at 24 V DC)
Module power supply: Inrush current8.2 A, 2.1 ms or less
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O part: 18-point direct-mount terminal block (M3 screw)
External dimensions: Height50 mm
External dimensions: Width118 mm
External dimensions: Depth40 mm
Weight0.20 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
