What is the Mitsubishi Electric AJ65DBTB1-32DT1?

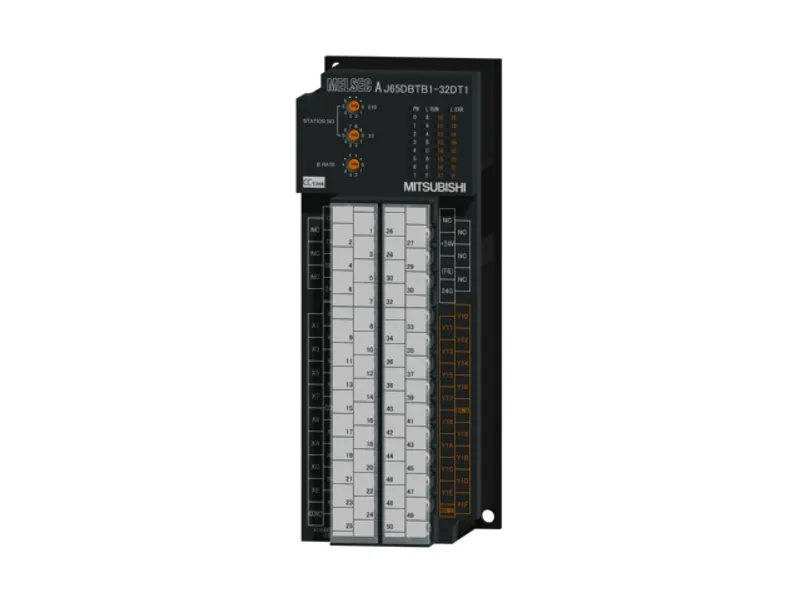

The Mitsubishi Electric AJ65DBTB1-32DT1 is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC, 5 mA, response time: 10 ms or less, 16 points/common, positive common type, 1-wire, transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire, A2C terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has announced its discontinuation (2027/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeI/O
Sales status2027/02 To be end of order (Mitsubishi Electric)
OutlineDC input: 16 points, 24 V DC, 5 mA, response time: 10 ms or less, 16 points/common, positive common type, 1-wire, transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire, A2C terminal block type, number of occupied stations: 1 station

Input specifications

Input typeDC input (positive common type)
Number of input points16 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...31.2 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 % (at 26.4 V DC)
ON voltage/ON current15 V or more/3 mA or more
OFF voltage/OFF current5 V or less/1.5 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON10 ms or less (24 V DC)
Input response time: ON to OFF10 ms or less (24 V DC)
Input common terminal arrangement16 points/common (1-wire, terminal block type)
Input isolation methodPhotocoupler

Output specifications

Output typeTransistor output (sink type)
Number of output points16 points
Rated load voltage12/24 V DC
Operating load voltage range10.2...31.2 V DC (ripple ratio: within 5 %)
Maximum load current0.5 A/point, 4 A/common (2 A/terminal)
Maximum inrush current1.2 A, 10 ms or less
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.3 V DC or less (TYP.) 0.5 A, 0.6 V DC or less (MAX.) 0.5 A
Output response time: OFF to ON0.5 ms or less
Output response time: ON to OFF1.5 ms or less (resistive load)
Surge suppressorZener diode
External power supply for output part: Voltage10.2...31.2 V DC (ripple ratio: within 5 %)
External power supply for output part: Current30 mA or less (at 24 V DC and all points ON), excluding external load current
Output common terminal arrangement16 points/common (1-wire, terminal block type)
Output isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current55 mA or less (at 24 V DC, all points ON)
External interface50-point terminal block (M3.5 screw)
External dimensions: Height170 mm
External dimensions: Width64 mm
External dimensions: Depth70 mm
Weight0.65 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65DBTB1-32DT1: frequently asked questions

When can AJ65DBTB1-32DT1 be shipped?

AJ65DBTB1-32DT1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65DBTB1-32DT1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65DBTB1-32DT1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65DBTB1-32DT1, subject to availability and destination.
