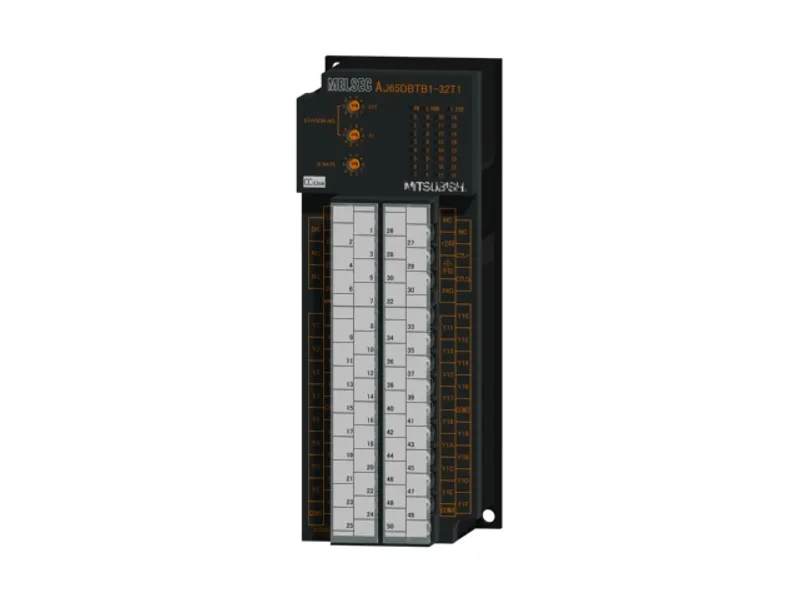

What is the Mitsubishi Electric AJ65DBTB1-32T1?

The Mitsubishi Electric AJ65DBTB1-32T1 is a remote I/O in the MELSEC network modules. Transistor output: 32 points, 12/24 V DC, 0.5 A/point, 8 A/common, response time: 1.5 ms, 32 points/common, sink type, 1-wire A2C terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has announced its discontinuation (2027/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeOutput
Sales status2027/02 To be end of order (Mitsubishi Electric)
OutlineTransistor output: 32 points, 12/24 V DC, 0.5 A/point, 8 A/common, response time: 1.5 ms, 32 points/common, sink type, 1-wire A2C terminal block type, number of occupied stations: 1 station

Output specifications

Output typeTransistor output (sink type)
Number of output points32 points
Rated load voltage12/24 V DC
Operating load voltage range10.2...31.2 V DC (ripple ratio: within 5 %)
Maximum load current0.5 A/point, 8 A/common (2 A/terminal)
Maximum inrush current1.2 A, 10 ms or less
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.3 V DC or less (TYP.) 0.5 A, 0.6 V DC or less (MAX.) 0.5 A
Output response time: OFF to ON0.5 ms or less
Output response time: ON to OFF1.5 ms or less (resistive load)
Surge suppressorZener diode
External power supply for output part: Voltage10.2...31.2 V DC (ripple ratio: within 5 %)
External power supply for output part: Current50 mA or less (at 24 V DC and all points ON), excluding external load current
Output common terminal arrangement32 points/common (1-wire, terminal block type)
Output isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current65 mA or less (at 24 V DC, all points ON)
External interface50-point terminal block (M3.5 screw)
External dimensions: Height170 mm
External dimensions: Width64 mm
External dimensions: Depth70 mm
Weight0.7 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
