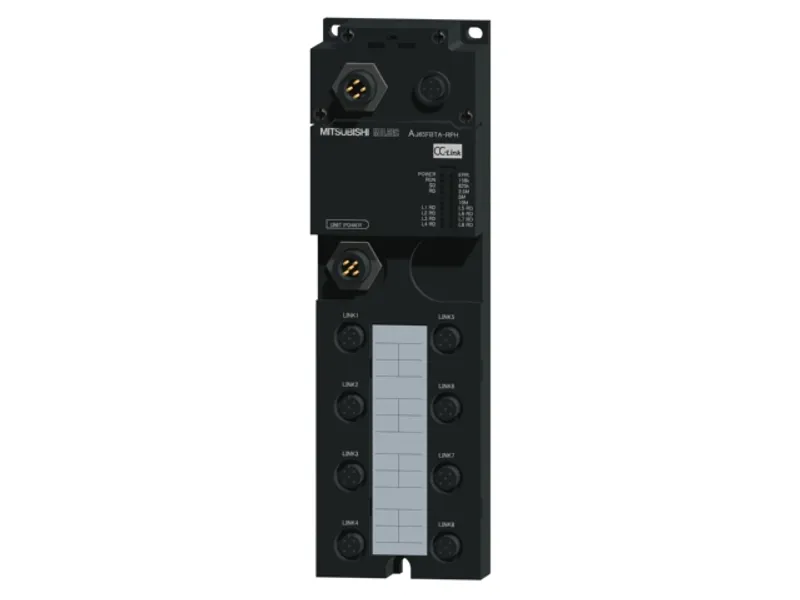

AJ65FBTA-RPH Mitsubishi MELSEC network modules Bridge/repeater
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65FBTA-RPH (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65FBTA-RPH now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65FBTA-RPH, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65FBTA-RPH be shipped?
AJ65FBTA-RPH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65FBTA-RPH in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65FBTA-RPH and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65FBTA-RPH, subject to availability and destination.
The Mitsubishi Electric AJ65FBTA-RPH is a bridge/repeater in the MELSEC network modules. Repeater hub module, star-topology wiring with up to 8 branch lines, IP67 compliant. Mitsubishi Electric has discontinued it (2023/08 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Bridge/repeater |
| Type | Repeater |
| Subtype | Repeater hub |
| Sales status | 2023/08 Discontinued (Mitsubishi Electric) |
| Outline | Repeater hub module, star-topology wiring with up to 8 branch lines, IP67 compliant |
CC-Link specifications
| Transmission speed | 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable) |
| Number of connectable slave stations | The total number of modules connected to a trunk line and branch line shall conform to the maximum number of connectable modules of the master module used. |
| Maximum number of modules connected to the trunk line | 64 |
| Connection position: Trunk line side | No restriction (compliant with the CC-Link specifications) |
| Connection position: Branch line side | Connect to the end of the branch line (segment end) |
| Maximum number of stages connected to configure segment | AJ65FBTA-RPH only: 2nd stage Combination of AJ65FBTA-RPH and AJ65BTS-RPH: 3rd stage Combination of AJ65FBTA-RPH and AJ65BTS-RPH, AJ65SBT-RPS/RPG, or AJ65BT-RPI: 2nd stage |
| Maximum transmission distance of each segment | Varies according to transmission rate |
| Station number | None |
| Terminating resistor: Trunk line side | No resistor, 110Ω, or 130Ω can be selected. |
| Terminating resistor: Branch line side | 110Ω (built-in) |
Common specifications
| External interface | M12 waterproof connector (IEC947-5-2) |
| Protection degree | IP67 |
| Module power supply: Voltage | 24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %) |
| Module power supply: Current | 0.30 A (at TYP. 24 V DC) |
| External dimensions: Height | 200 mm |
| External dimensions: Width | 60.3 mm |
| External dimensions: Depth | 48 mm |
| Weight | 0.31 kg |
Specifications
| Operating ambient temperature | 0...45 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | Compliant with IP67 |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel (It can also be used in an environment other than on the control panel if the conditions such as usage ambient temperature and humidity are satisfied.) |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link System Low Profile Waterproof Type Repeater Hub Module User's Manual (IB-0800288E-G) | PDF · 0.47MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestAJ65DBTB1-32DR Mitsubishi MELSEC network modules Remote I/O

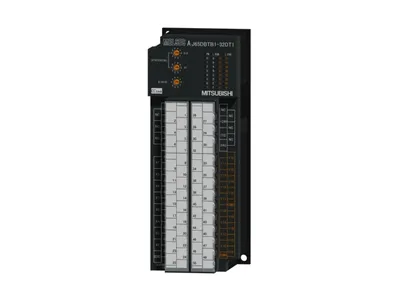

Available on requestAJ65DBTB1-32DT1 Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65DBTB1-32R Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65DBTB1-32T1 Mitsubishi MELSEC network modules Remote I/O

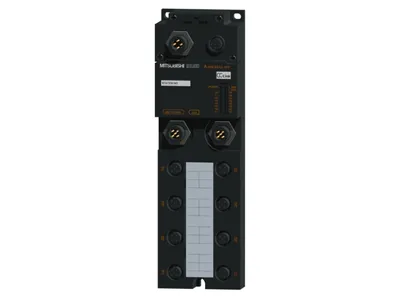

Available on requestAJ65FBTA2-16T Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65FBTA2-16TE Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65FBTA4-16D Mitsubishi MELSEC network modules Remote I/O

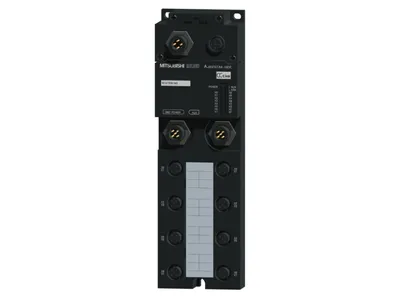

Available on requestAJ65FBTA4-16DE Mitsubishi MELSEC network modules Remote I/O
