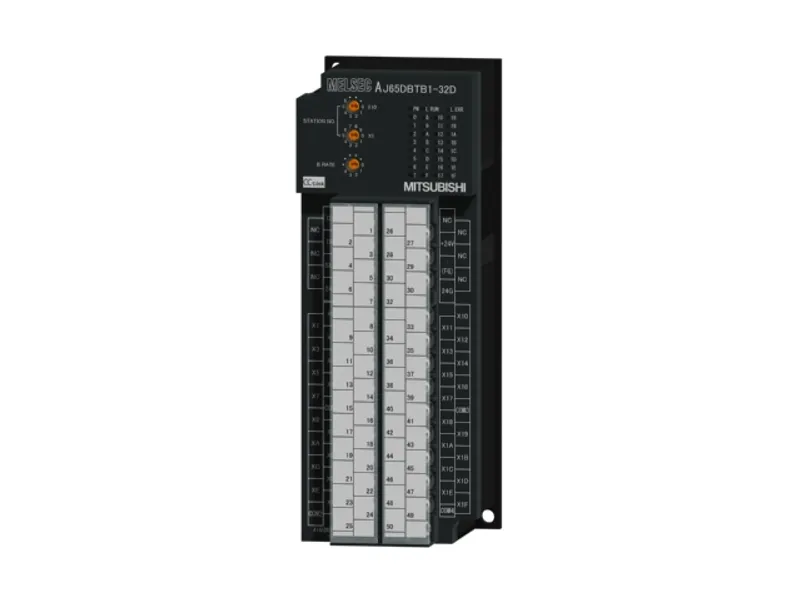

The Mitsubishi Electric AJ65DBTB1-32D is a remote I/O in the MELSEC network modules. DC input: 32 points, 24 V DC 5 mA, response time: 10 ms or less, 16 points/common, positive/negative common shared type, 1-wire A2C terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has announced its discontinuation (2027/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Subtype | Input |
| Sales status | 2027/02 To be end of order (Mitsubishi Electric) |
| Outline | DC input: 32 points, 24 V DC 5 mA, response time: 10 ms or less, 16 points/common, positive/negative common shared type, 1-wire A2C terminal block type, number of occupied stations: 1 station |
Input specifications
| Input type | DC input (positive/negative shared common type) |
| Number of input points | 32 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...31.2 V DC) |
| Rated input current | Approx. 5 mA |
| Maximum number of simultaneous input points | 100 % (at 26.4 V DC) |
| ON voltage/ON current | 15 V or more/3 mA or more |
| OFF voltage/OFF current | 5 V or less/1.5 mA or less |
| Input resistance | Approx. 4.7 kΩ |
| Input response time: OFF to ON | 10 ms or less (24 V DC) |
| Input response time: ON to OFF | 10 ms or less (24 V DC) |
| Input common terminal arrangement | 16 points/common (1-wire, terminal block type) |
| Input isolation method | Photocoupler |
Common specifications
| Dielectric withstand voltage | Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP2X |
| Station type | Remote I/O station |
| Number of occupied stations | 1 station |
| Module power supply: Voltage | 20.4...26.4 V DC (ripple ratio: within 5 %) |
| Module power supply: Current | 45 mA or less (at 24 V DC, all points ON) |
| External interface | 50-point terminal block (M3.5 screw) |
| External dimensions: Height | 170 mm |
| External dimensions: Width | 64 mm |
| External dimensions: Depth | 70 mm |
| Weight | 0.6 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011 | Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link System Compact Type Remote I/O Module User's Manual (SH-4007-AM) | PDF · 42.40MB |
| AJ65DBTB1-32D CC-Link System Compact Type Remote I/O Module User's Manual (IB-0800375E-F) | PDF · 1.50MB |
