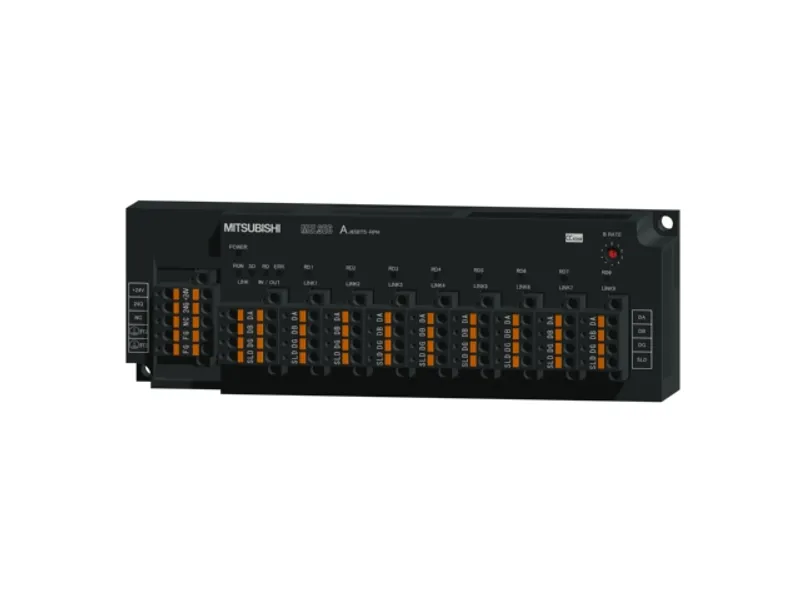

Mitsubishi Electric AJ65BTS-RPH

Mitsubishi MELSEC network modules Bridge/repeater

MPN
AJ65BTS-RPH
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65BTS-RPH?

The Mitsubishi Electric AJ65BTS-RPH is a bridge/repeater in the MELSEC network modules. Repeater hub module, star-topology wiring with up to 8 branch lines, spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryBridge/repeater
TypeRepeater
SubtypeRepeater hub
OutlineRepeater hub module, star-topology wiring with up to 8 branch lines, spring-clamp terminal block type

CC-Link specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Number of connectable slave stationsThe total number of modules connected to a trunk line and branch line shall conform to the maximum number of connectable modules of the master module used.
Maximum number of modules connected to the trunk line64
Connection position: Trunk line sideNo restriction (compliant with the CC-Link specifications)
Connection position: Branch line sideConnect to the end of the branch line (segment end)
Maximum number of stages connected to configure segmentAJ65BTS-RPH only: 2nd stage Combination of AJ65BTS-RPH and AJ65SBT-RPT: 3rd stage Combination of AJ65BTS-RPH and one of AJ65FBTA-RPH, AJ65SBT-RPS/RPG, or AJ65BT-RPI: 2nd stage
Maximum transmission distance of each segmentVaries according to transmission rate
Station numberNone
Terminating resistor: Trunk line side110Ω, or 130Ω can be selected.
Terminating resistor: Branch line side110Ω (built-in)

Common specifications

External interfaceSpring clamp terminal block
Protection degreeIP2X
Module power supply: Voltage24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %)
Module power supply: Current0.36 A (at TYP. 24 V DC)
External dimensions: Height65 mm
External dimensions: Width197.5 mm
External dimensions: Depth65.8 mm
Weight0.37 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65BTS-RPH: frequently asked questions

When can AJ65BTS-RPH be shipped?

AJ65BTS-RPH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BTS-RPH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BTS-RPH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BTS-RPH, subject to availability and destination.
