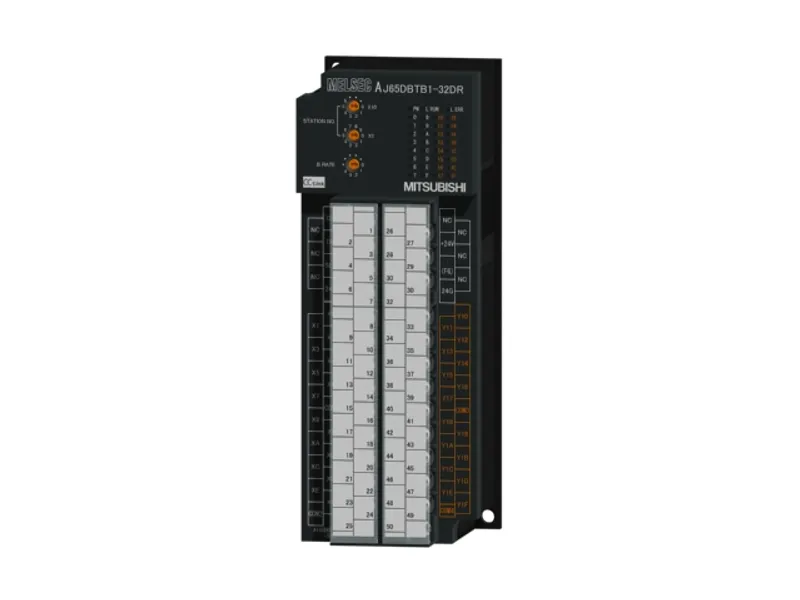

What is the Mitsubishi Electric AJ65DBTB1-32DR?

The Mitsubishi Electric AJ65DBTB1-32DR is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC, 5 mA, response time: 10 ms, 16 points/common, positive/negative common shared type, 1-wire, contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 4 A/common, response time: 12 ms, 8 points/common, 1-wire A2C terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has announced its discontinuation (2027/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeI/O
Sales status2027/02 To be end of order (Mitsubishi Electric)
OutlineDC input: 16 points, 24 V DC, 5 mA, response time: 10 ms, 16 points/common, positive/negative common shared type, 1-wire, contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 4 A/common, response time: 12 ms, 8 points/common, 1-wire A2C terminal block type, number of occupied stations: 1 station

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points16 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...31.2 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 % (at 26.4 V DC)
ON voltage/ON current15 V or more/3 mA or more
OFF voltage/OFF current5 V or less/1.5 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON10 ms or less (24 V DC)
Input response time: ON to OFF10 ms or less (24 V DC)
Input common terminal arrangement16 points/common (1-wire, terminal block type)
Input isolation methodPhotocoupler

Output specifications

Number of output points16 points
Rated switching voltage, current24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 4 A/common
Minimum switching load5 V DC, 1 mA
Maximum switching voltage264 V AC, 125 V DC
Life: Mechanical20 million times or more
Life: ElectricalRated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times
Maximum switching frequency3600 times/hour
Output response time: OFF to ON10 ms or less
Output response time: ON to OFF12 ms or less
Surge suppressorNone
External power supply for output part: Voltage24 V DC ±10 % (ripple voltage: 4 Vp-p or lower)
External power supply for output part: Current90 mA or less (at 24 V DC and all points ON)
Output common terminal arrangement8 points/common (1-wire, terminal block type)
Output isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all AC external terminals and ground: 1500 V AC for 1 minute Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP1X
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current60 mA or less (at 24 V DC, all points ON)
External interface50-point terminal block (M3.5 screw)
External dimensions: Height170 mm
External dimensions: Width64 mm
External dimensions: Depth70 mm
Weight0.65 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
