AJ65BT-64DAV Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65BT-64DAV · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-64DAV (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AJ65BT-64DAV now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-64DAV, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65BT-64DAV be shipped?

AJ65BT-64DAV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BT-64DAV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BT-64DAV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-64DAV, subject to availability and destination.

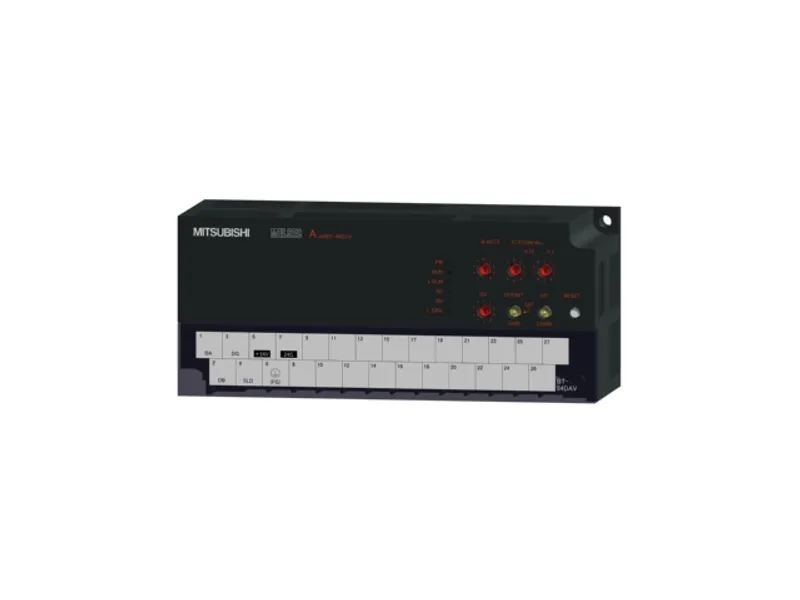

The Mitsubishi Electric AJ65BT-64DAV is a remote I/O in the MELSEC network modules. 4 channels, input (resolution): -2000...2000, output: -10...10 V DC, conversion speed: 1ms/channel, 2-piece terminal block type, number of occupied stations: 2 stations. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Analog I/O
Subtype	Analog output
Sales status	2021/09 Discontinued (Mitsubishi Electric)
Outline	4 channels, input (resolution): -2000...2000, output: -10...10 V DC, conversion speed: 1ms/channel, 2-piece terminal block type, number of occupied stations: 2 stations

Specifications

Number of analog output points	4 points (4 channels)
Digital input	-2048...+2047
Analog output: Voltage	-10...+10 V DC (external load resistance 2 kΩ...1 MΩ)
I/O characteristics, resolution: Output range	Digital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: -10...10 V	-2000...2000 (5 mV)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC	±1 %
D/A conversion speed	1 ms/channel
Output short protection	Protected
Isolation method	Between external power supply and analog output channels: Transformer Between output channels: Non-isolation
Dielectric withstand voltage	Between all power supply and communication system terminals and all analog output terminals: 500 V AC for 1 minute
Insulation resistance	Between all power supply and communication system terminals and all analog output terminals: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote device station (Ver. 1 remote device station)
Number of occupied stations	2 stations
Module power supply: Voltage	24 V DC (20.4...26.4 V DC)
Module power supply: Current	0.18 A (at 24 V DC)
Module power supply: Inrush current	1.5 A, 0.67 ms or less
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O part: 27-point two-piece terminal block (M3.5 screw)
External dimensions: Height	65 mm
External dimensions: Width	151.9 mm
External dimensions: Depth	63 mm
Weight	0.4 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Amplitude: 3.5 mm Frequency: 8.4...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Amplitude: 1.75 mm Frequency: 8.4...150 Hz, Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Digital-Analog Converter Module type AJ65BT-64DAV/DAI User's Manual (SH-3615-G)	PDF · 5.51MB
Digital-Analog Conversion Module Type AJ65BT-64DAV/DAI User's Manual (Hardware) (IB-66750-I)	PDF · 2.00MB
