Mitsubishi Electric AJ65BT-64AD

Mitsubishi MELSEC network modules Remote I/O

MPN
AJ65BT-64AD
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-64AD (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65BT-64AD?

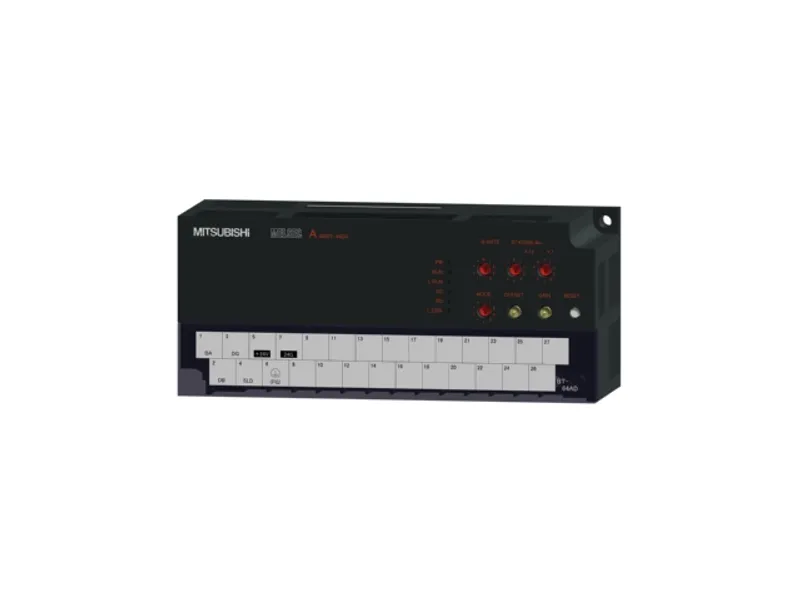

The Mitsubishi Electric AJ65BT-64AD is a remote I/O in the MELSEC network modules. 4 channels, input: -10...10 V DC, -20...20 mA DC, output (resolution): 0...4000, -2000...2000, conversion speed: 1 ms/channel, 2-piece terminal block type, number of occupied stations: 2 stations. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeAnalog I/O
SubtypeAnalog input
Sales status2021/09 Discontinued (Mitsubishi Electric)
Outline4 channels, input: -10...10 V DC, -20...20 mA DC, output (resolution): 0...4000, -2000...2000, conversion speed: 1 ms/channel, 2-piece terminal block type, number of occupied stations: 2 stations

Specifications

Number of analog input points4 points (4 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current-20...+20 mA DC (input resistance 250 Ω)
Digital output0...4000, -2000...+2000
I/O characteristics, resolution: Input rangeDigital output value (maximum resolution)
I/O characteristics, resolution: Voltage input: 0...10 V0...4000 or -2000...2000 (2.5 mV)
I/O characteristics, resolution: Voltage input: 0...5 V0...4000 or -2000...2000 (1.25 mV)
I/O characteristics, resolution: Voltage input: 1...5 V0...4000 or -2000...2000 (1.0 mV)
I/O characteristics, resolution: Voltage input: -10...10 V0...4000 or -2000...2000 (5 mV)
I/O characteristics, resolution: Current input: 0...20 mA0...4000 or -2000...2000 (10 µA/5 µA)
I/O characteristics, resolution: Current input: 4...20 mA0...4000 or -2000...2000 (4 µA)
I/O characteristics, resolution: Current input: -20...20 mA0...4000 or -2000...2000 (20 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚C±1 %
A/D conversion speed1 ms/channel
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA
Isolation methodBetween all power supply and communication system terminals and all analog inputs: Photocoupler Between channels: Non-isolation
Dielectric withstand voltageBetween all power supply and communication system terminals and all analog input terminals: 500 V AC for 1 minute
Insulation resistanceBetween all power supply and communication system terminals and all analog input terminals: 10 MΩ or higher by 500 V DC insulation resistance tester
Station typeRemote device station (Ver. 1 remote device station)
Number of occupied stations2 stations
Module power supply: Voltage24 V DC (18...30 V DC)
Module power supply: Current0.12 A (at 24 V DC)
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O part: 27-point two-piece terminal block (M3.5 screw)
External dimensions: Height65 mm
External dimensions: Width151.9 mm
External dimensions: Depth63 mm
Weight0.35 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Amplitude: 3.5 mm Frequency: 8.4...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Amplitude: 1.75 mm Frequency: 8.4...150 Hz, Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65BT-64AD: frequently asked questions

Can I still buy the AJ65BT-64AD now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-64AD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65BT-64AD be shipped?

AJ65BT-64AD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BT-64AD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BT-64AD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-64AD, subject to availability and destination.
