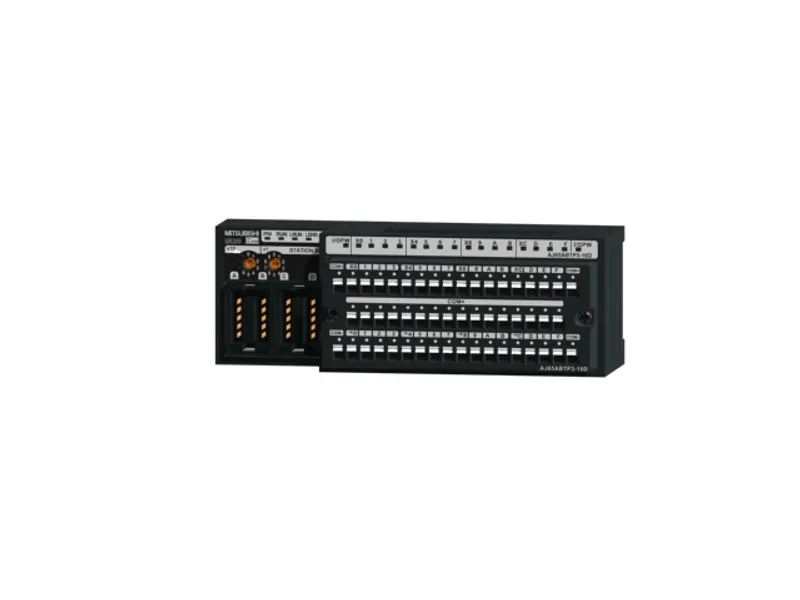

AJ65ABTP3-16D Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65ABTP3-16D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65ABTP3-16D now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65ABTP3-16D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65ABTP3-16D be shipped?
AJ65ABTP3-16D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65ABTP3-16D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65ABTP3-16D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65ABTP3-16D, subject to availability and destination.
The Mitsubishi Electric AJ65ABTP3-16D is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC 6 mA, response time: 1.5 ms, 16 points/common, positive common type, 3-wire spring-clamp terminal block push-in type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Subtype | Input |
| Sales status | 2023/12 Discontinued (Mitsubishi Electric) |
| Outline | DC input: 16 points, 24 V DC 6 mA, response time: 1.5 ms, 16 points/common, positive common type, 3-wire spring-clamp terminal block push-in type, number of occupied stations: 1 station |
Input specifications
| Input type | DC input (positive common type) |
| Number of input points | 16 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Rated input current | Approx. 6 mA |
| Maximum number of simultaneous input points | 100 % |
| ON voltage/ON current | 14 V or more/3.5 mA or more |
| OFF voltage/OFF current | 6 V or less/1.7 mA or less |
| Input resistance | Approx. 3.8 kΩ |
| Input response time: OFF to ON | 1.5 ms or less (24 V DC) |
| Input response time: ON to OFF | 1.5 ms or less (24 V DC) |
| Input short-circuit (ground) detection current | 50 mA or more/point |
| Input disconnection (no connection) detection current | 0.3 mA or less/point |
| Input common terminal arrangement | 16 points/common (3-wire, spring clamp terminal block push-in type)) |
| Input isolation method | Photocoupler |
| Internal circuit power supply for input part: Voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Internal circuit power supply for input part: Current | 30 mA or less (at 24VDC and all points ON), excluding external load current |
| I/O power supply current | 8 A or less/common |
Common specifications
| Dielectric withstand voltage | Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP1XB |
| Station type | Remote device station (Ver. 1 remote device station) |
| Number of occupied stations | 1 station |
| Module power supply: Voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...26.4 V DC) |
| Module power supply: Current | 55 mA or less (at 24 V DC, all points ON) |
| External interface | Communication part: One-touch connector for communication (sold separately) Module power supply part, I/O power supply part: One-touch connector for power supply and FG (sold separately) I/O part: 2-piece spring clamp terminal block push-in type |
| Communication cable | Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, CS-110 |
| External dimensions: Height | 50 mm |
| External dimensions: Width | 145 mm |
| External dimensions: Depth | 57.5 mm |
| Weight | 0.31 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
