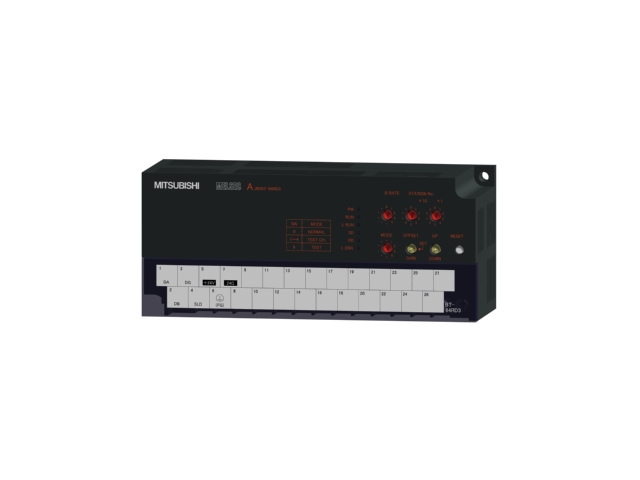

AJ65BT-64RD3 Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-64RD3 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65BT-64RD3 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-64RD3, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65BT-64RD3 be shipped?
AJ65BT-64RD3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65BT-64RD3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65BT-64RD3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-64RD3, subject to availability and destination.
The Mitsubishi Electric AJ65BT-64RD3 is a remote I/O in the MELSEC network modules. 4 channels, 3-wire platinum resistance thermometer (Pt100, JPt100), conversion speed: 40 ms/channel, 2-piece terminal block type, number of occupied stations: 4 stations. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | Analog I/O |
| Subtype | Temperature input |
| Sales status | 2021/09 Discontinued (Mitsubishi Electric) |
| Outline | 4 channels, 3-wire platinum resistance thermometer (Pt100, JPt100), conversion speed: 40 ms/channel, 2-piece terminal block type, number of occupied stations: 4 stations |
Specifications
| Number of channels | 4 channels |
| Digital output: Temperature measured value | 16-bit signed binary value (-1800...6000: value to the first decimal place × 10) 32-bit signed binary value (-180000...600000: value to the third decimal place × 1000) |
| Measuring method | 3-wire method |
| Applicable resistance temperature detector | Pt100, JPt100 |
| Measured temperature range: Pt100 | -180...600 ˚C |
| Measured temperature range: JPt100 | -180...600 ˚C |
| Temperature detecting output current | 1 mA |
| Resolution | 0.025 ˚C |
| Overall accuracy (accuracy for maximum value): Ambient temperature: 25±5 ﾟC | ±0.1 % |
| Overall accuracy (accuracy for maximum value): Ambient temperature: less than 20 °C, more than 30 °C | ±0.25 % |
| Conversion speed | 40 ms/channel |
| Isolation method | Between platinum RTD input and CC-Link transmission: Photocoupler Between channels: Non-isolation |
| Dielectric withstand voltage | Between batch of power supply system and ground, between batch of power supply system and batch of communication system, between batch of communication system and batch of temperature input, between batch of temperature input and ground: 500 V AC 1 minute |
| Insulation resistance | Between batch of power supply system and ground, between batch of power supply system and batch of communication system, between batch of communication system and batch of temperature input, between batch of temperature input and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Station type | Remote device station (Ver. 1 remote device station) |
| Number of occupied stations | 4 stations |
| Module power supply: Voltage | 24 V DC (18...30 V DC) |
| Module power supply: Current | 0.17 A |
| Module power supply: Allowable momentary power failure time | 1 ms |
| External interface | Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O part: 27-point two-piece terminal block (M3.5 screw) |
| Communication cable | CC-Link dedicated cable |
| External dimensions: Height | 65 mm |
| External dimensions: Width | 151.9 mm |
| External dimensions: Depth | 63 mm |
| Weight | 0.38 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Amplitude: 3.5 mm Frequency: 8.4...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Amplitude: 1.75 mm Frequency: 8.4...150 Hz, Acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
