AJ65BT-D35ID2 Mitsubishi MELSEC network modules Bridge/repeater
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-D35ID2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65BT-D35ID2 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-D35ID2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65BT-D35ID2 be shipped?
AJ65BT-D35ID2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65BT-D35ID2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65BT-D35ID2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-D35ID2, subject to availability and destination.
The Mitsubishi Electric AJ65BT-D35ID2 is a bridge/repeater in the MELSEC network modules. D-2N Series 2 reader writers connectable, for CC-Link, number of occupied stations: 4 stations. Mitsubishi Electric has discontinued it (2011/01 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Bridge/repeater |
| Type | Others |
| Subtype | ID interface |
| Sales status | 2011/01 Discontinued (Mitsubishi Electric) |
| Outline | D-2N Series 2 reader writers connectable, for CC-Link, number of occupied stations: 4 stations |
Specifications
| Connectable reader writer | D-2N422RW(-C2), D-2N422RWS(-C2) |
| Number of connectable reader writers | 2 |
| Connectable cable | D-NS422CAB10 (10 m), D-NS422CAB20 (20 m), D-NS422CAB40 (40 m), D-NS422CAB100 (100 m) (Maximum of two cables can be combined, maximum extension distance of cable: 200m) |
| Data carrier that can be used | D-2N03PS, D-2N03PM |
| Dielectric withstand voltage | Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Station type | Remote device station (Ver. 1 remote device station) |
| Number of occupied stations | 4 stations |
| Module power supply: Voltage | 24 V DC (20.4...26.4 V DC) |
| Module power supply: Current | 0.45 A |
| External interface | Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) |
| External dimensions: Height | 80 mm |
| External dimensions: Width | 170 mm |
| External dimensions: Depth | 63.5 mm |
| Weight | 0.39 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
More Mitsubishi Electric (Factory Automation) parts
Available on requestAJ65BT-64DAV Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65BT-64RD3 Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65BT-64RD4 Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65BT-68TD Mitsubishi MELSEC network modules Remote I/O

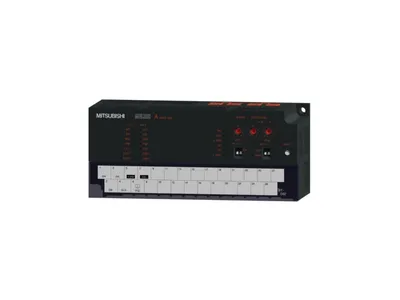

Available on requestAJ65BT-D62 Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65BT-D62D Mitsubishi MELSEC network modules Remote I/O

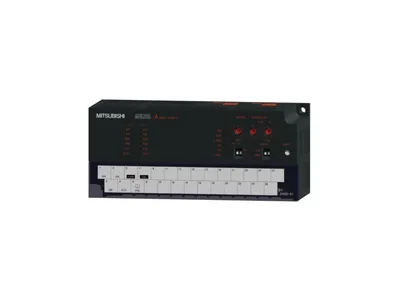

Available on requestAJ65BT-D62D-S1 Mitsubishi MELSEC network modules Remote I/O
