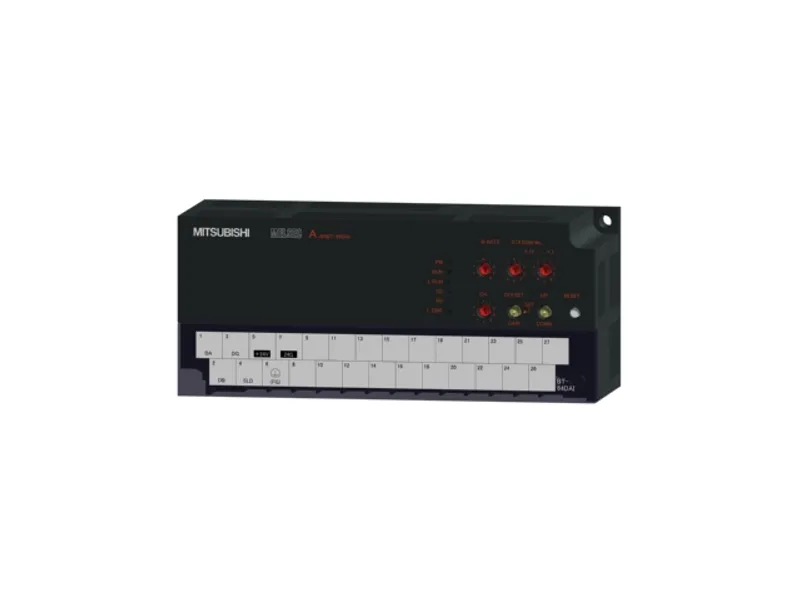

AJ65BT-64DAI Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-64DAI (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65BT-64DAI now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-64DAI, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65BT-64DAI be shipped?
AJ65BT-64DAI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65BT-64DAI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65BT-64DAI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-64DAI, subject to availability and destination.
The Mitsubishi Electric AJ65BT-64DAI is a remote I/O in the MELSEC network modules. 4 channels, input (resolution): 0...4000, output: 4...20 mA DC, conversion speed: 1 ms/channel, 2-piece terminal block type, number of occupied stations: 2 stations. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | Analog I/O |
| Subtype | Analog output |
| Sales status | 2021/09 Discontinued (Mitsubishi Electric) |
| Outline | 4 channels, input (resolution): 0...4000, output: 4...20 mA DC, conversion speed: 1 ms/channel, 2-piece terminal block type, number of occupied stations: 2 stations |
Specifications
| Number of analog output points | 4 points (4 channels) |
| Digital input | 0...4095 |
| Analog output: Current | 4...20 mA DC (external load resistance 0...600 Ω) |
| I/O characteristics, resolution: Output range | Digital input value (maximum resolution) |
| I/O characteristics, resolution: Current output: 4...20 mA | 0...4000 (4 µA) |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC | ±1 % |
| D/A conversion speed | 1 ms/channel |
| Output short protection | Protected |
| Isolation method | Between external power supply and analog output channels: Transformer Between output channels: Non-isolation |
| Dielectric withstand voltage | Between all power supply and communication system terminals and all analog output terminals: 500 V AC for 1 minute |
| Insulation resistance | Between all power supply and communication system terminals and all analog output terminals: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Station type | Remote device station (Ver. 1 remote device station) |
| Number of occupied stations | 2 stations |
| Module power supply: Voltage | 24 V DC (20.4...26.4 V DC) |
| Module power supply: Current | 0.27 A (at 24 V DC) |
| Module power supply: Inrush current | 3.2 A, 0.43 ms or less |
| External interface | Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O part: 27-point two-piece terminal block (M3.5 screw) |
| External dimensions: Height | 65 mm |
| External dimensions: Width | 151.9 mm |
| External dimensions: Depth | 63 mm |
| Weight | 0.4 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Amplitude: 3.5 mm Frequency: 8.4...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Amplitude: 1.75 mm Frequency: 8.4...150 Hz, Acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Digital-Analog Converter Module type AJ65BT-64DAV/DAI User's Manual (SH-3615-G) | PDF · 5.51MB |
| Digital-Analog Conversion Module Type AJ65BT-64DAV/DAI User's Manual (Hardware) (IB-66750-I) | PDF · 2.00MB |
