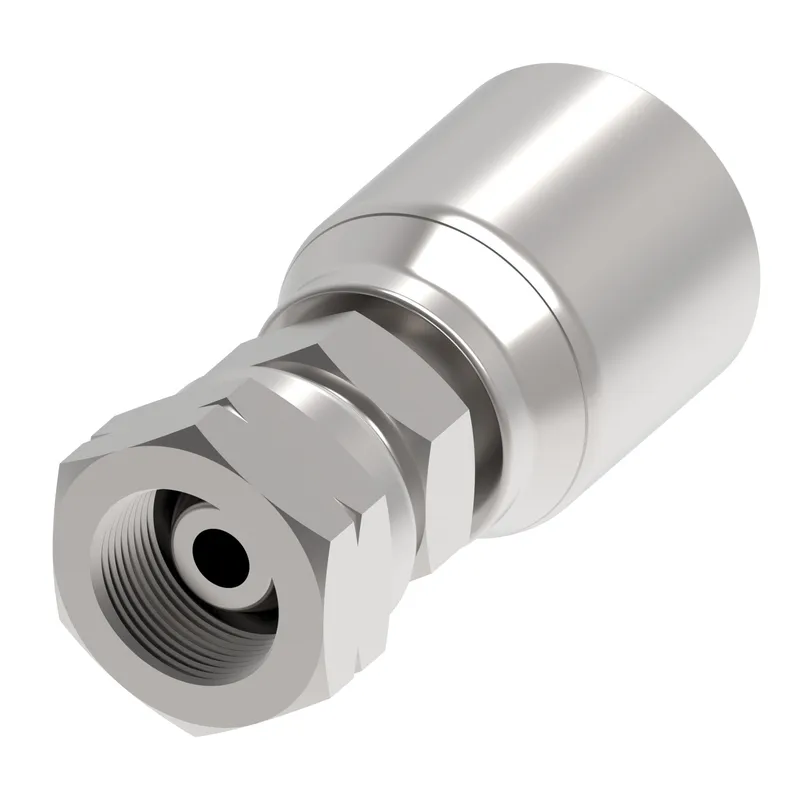

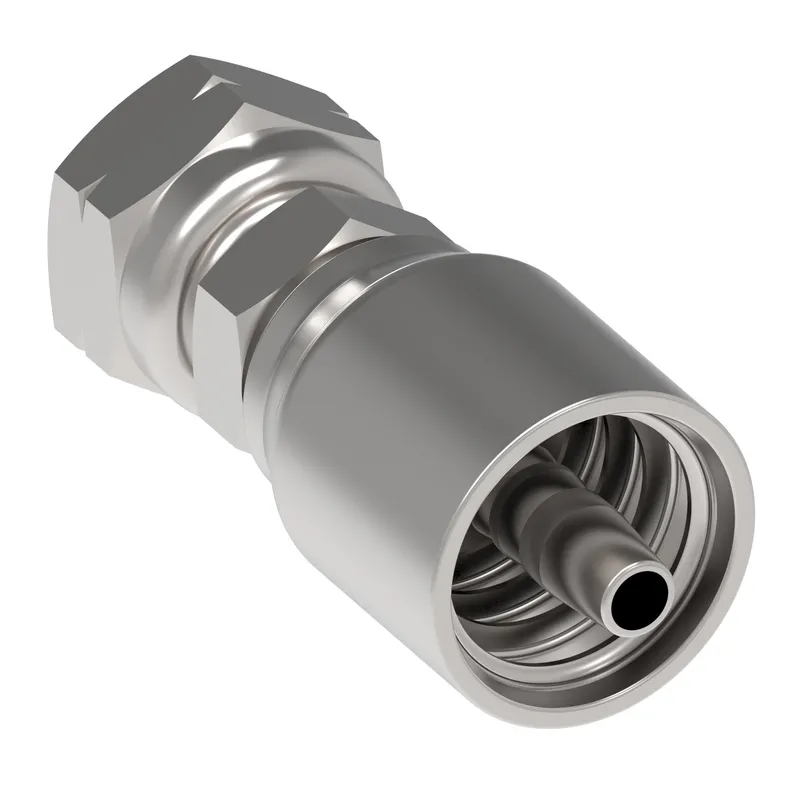

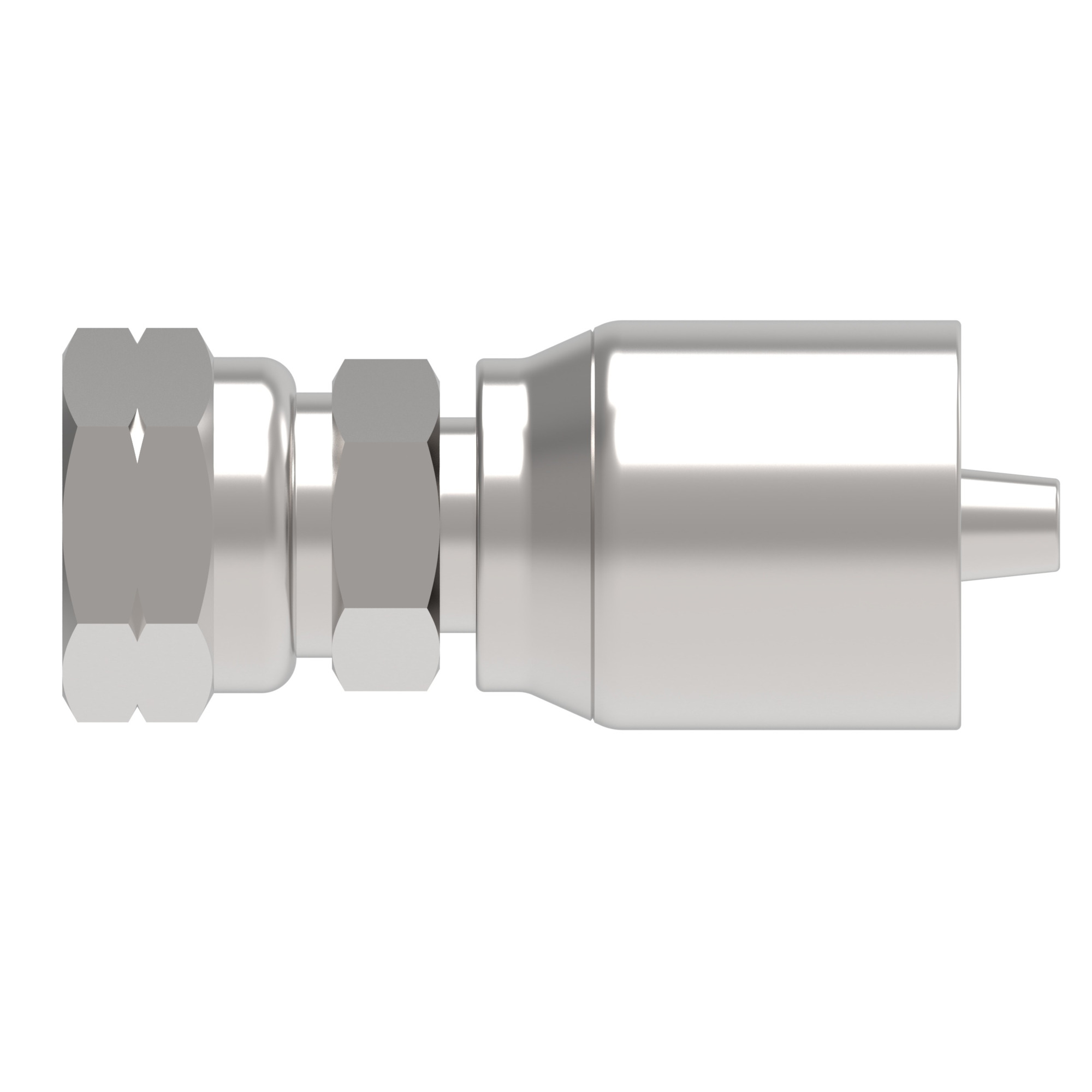

Danfoss 22611DY-08-08Z

HOSE NIPPLE ASSY, 1P/08, BF/08, CS, STR

MPN: 22611DY-08-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611DY-08-08Z?

Danfoss HOSE NIPPLE ASSY, 1P/08, BF/08, CS, STR, manufacturer part number 22611DY-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.090
A dimension MM	53.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-8
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.060
Hex size 1 MM	27.000
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	0.850
Hose cut off factor MM	21.500
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	1.210
Product height mm	30.734
Product length in	2.760
Product length mm	70.104
Product material	Carbon steel
Product width in	1.212
Product width mm	30.784
Thread sealant	No
Thread size 1	G 1/2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
