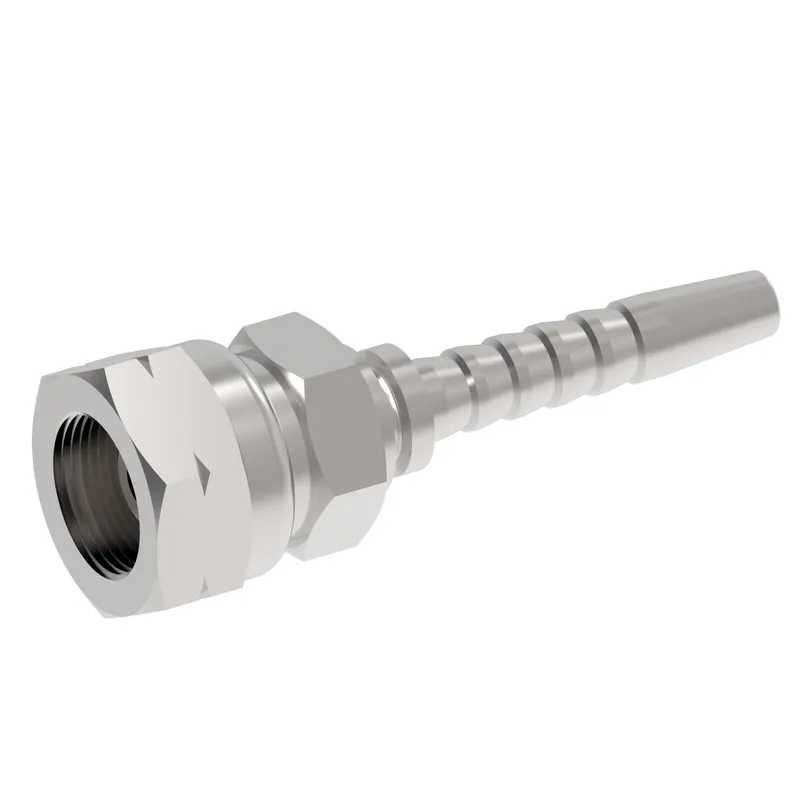

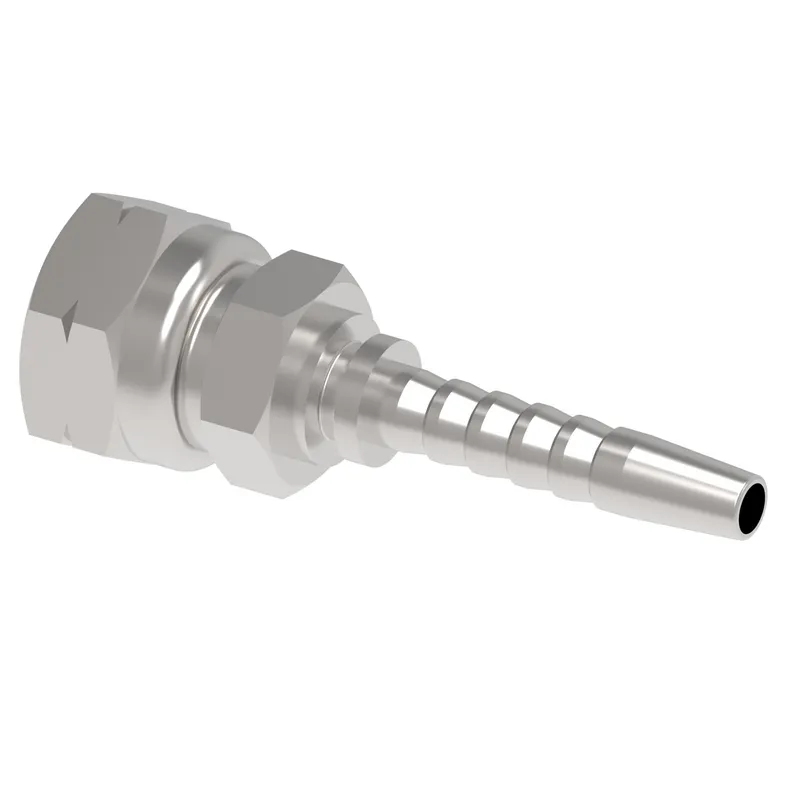

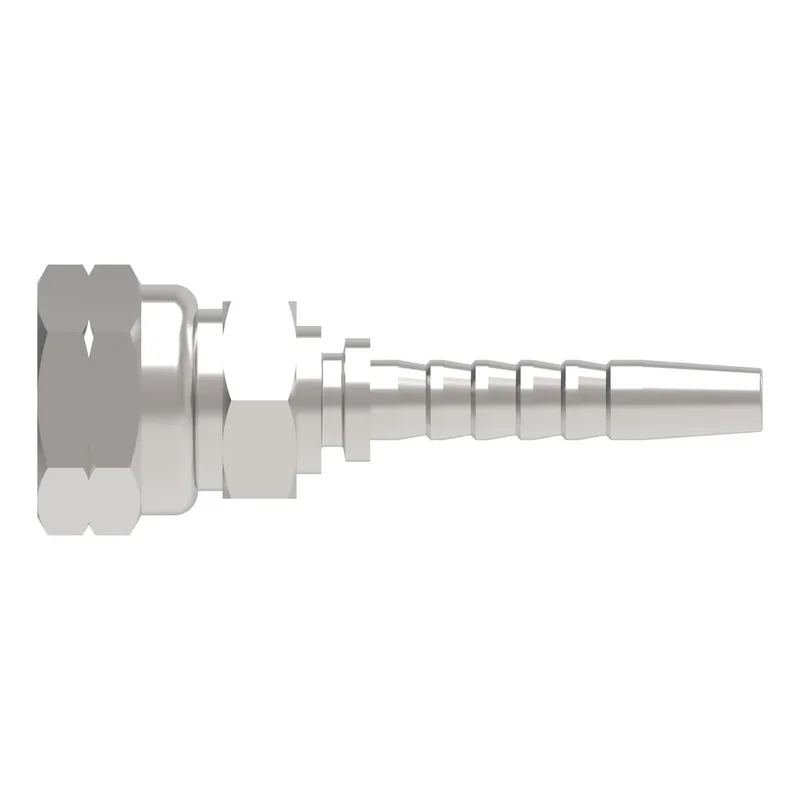

Danfoss 22611D-16-16Z

HOSE NIPPLE ASSY, 2P/16, BF/16, CS, STR

MPN: 22611D-16-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611D-16-16Z?

Danfoss HOSE NIPPLE ASSY, 2P/16, BF/16, CS, STR, manufacturer part number 22611D-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.240
A dimension MM	82.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	162-184 lb-ft(220-250 Nm)
End size 1	-16
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 MM	41.000
Hose cut off factor IN	1.390
Hose cut off factor MM	35.500
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	21.000
Product height in	1.860
Product height mm	47.244
Product length in	3.710
Product length mm	94.234
Product material	Carbon steel
Product width in	1.610
Product width mm	40.894
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
