Danfoss 22611Y-04-04Z

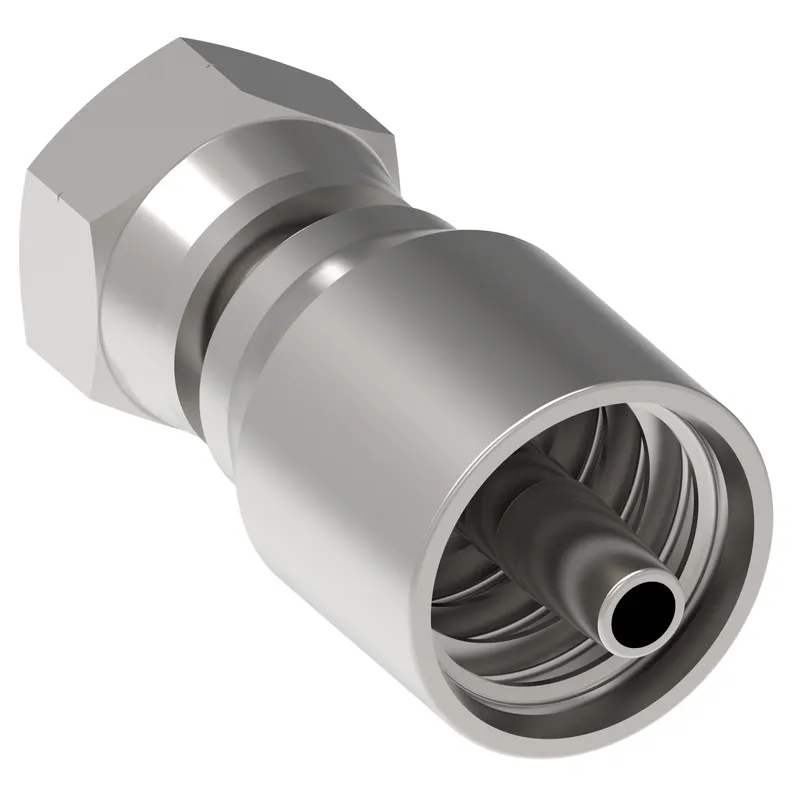

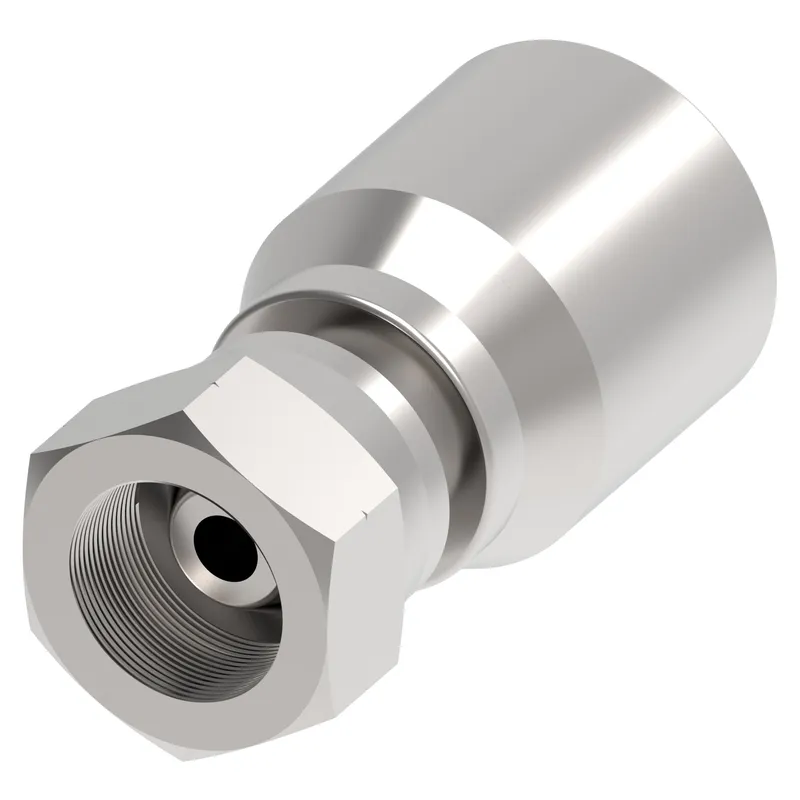

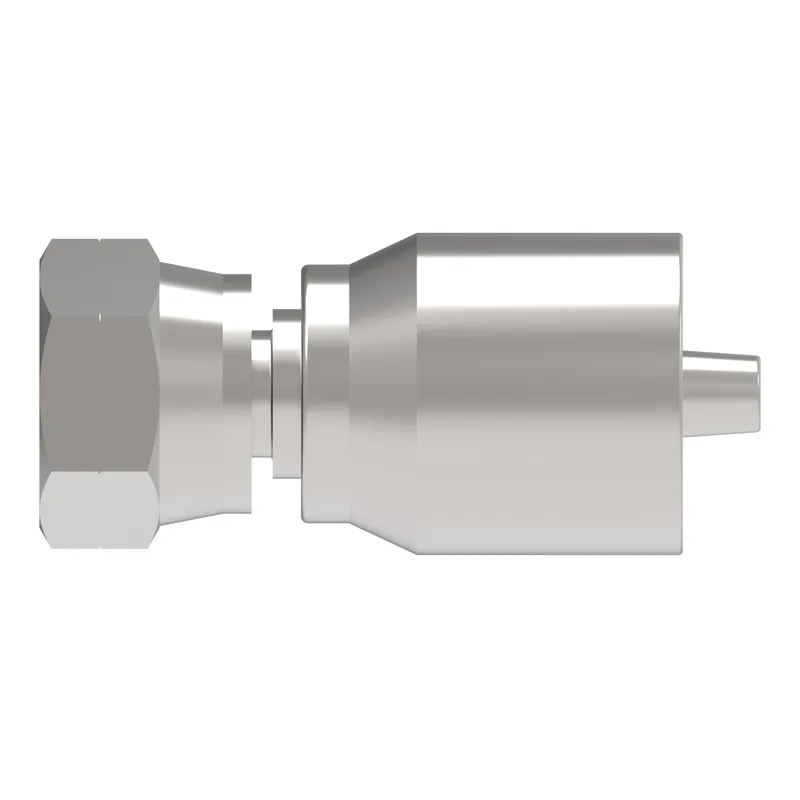

HOSE NIPPLE ASSY, 1P/04, BF/04, CS, STR

MPN: 22611Y-04-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611Y-04-04Z?

Danfoss HOSE NIPPLE ASSY, 1P/04, BF/04, CS, STR, manufacturer part number 22611Y-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.810
A dimension MM	46.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	19-23 lb-ft(25-30 Nm)
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	0.750
Hex size 2 MM	19.050
Hose cut off factor IN	0.710
Hose cut off factor MM	18.000
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	0.900
Product height mm	22.860
Product length in	2.030
Product length mm	51.562
Product material	Carbon steel
Product width in	0.897
Product width mm	22.784
Thread sealant	No
Thread size 1	G 1/4
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
