Danfoss 22611DY-16-16Z

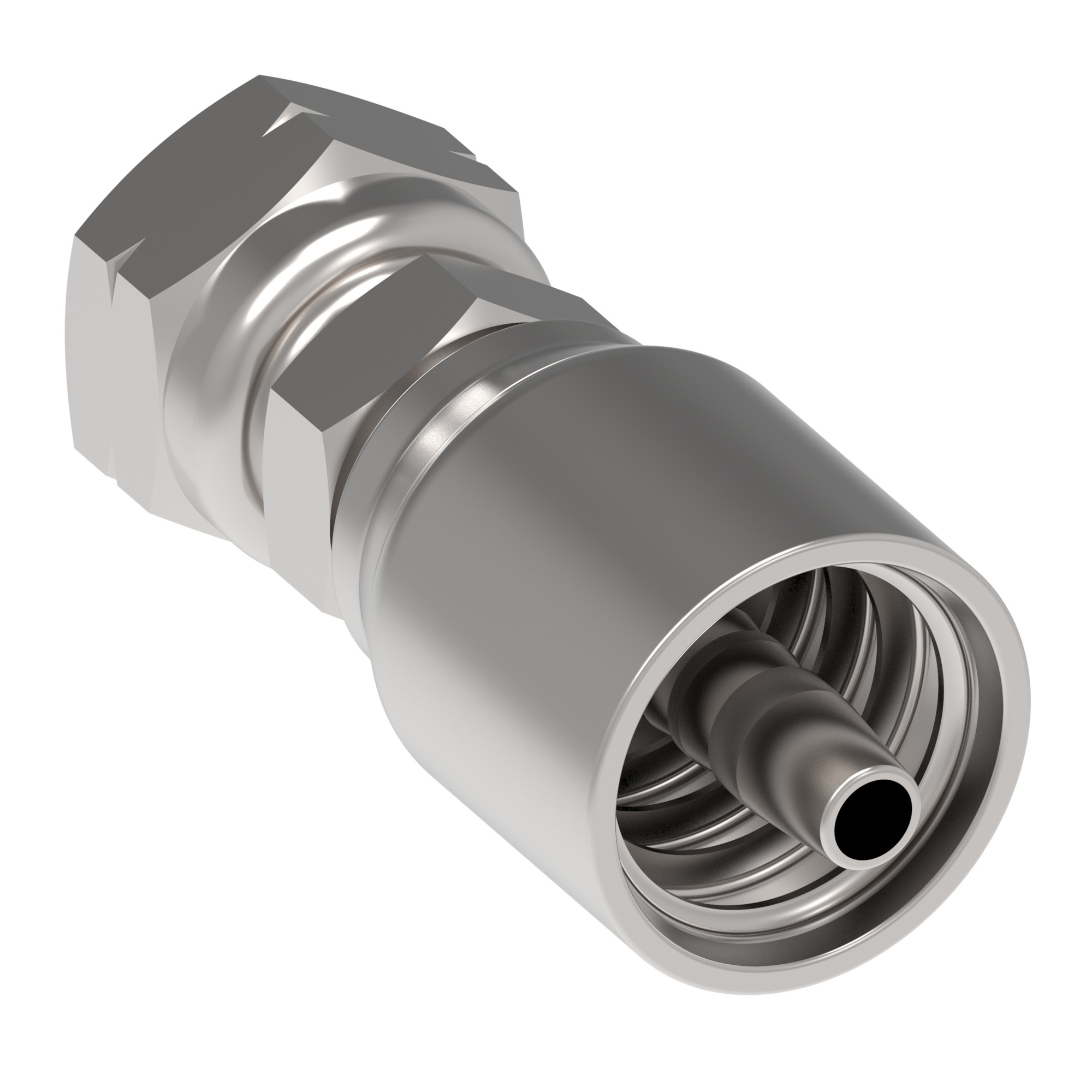

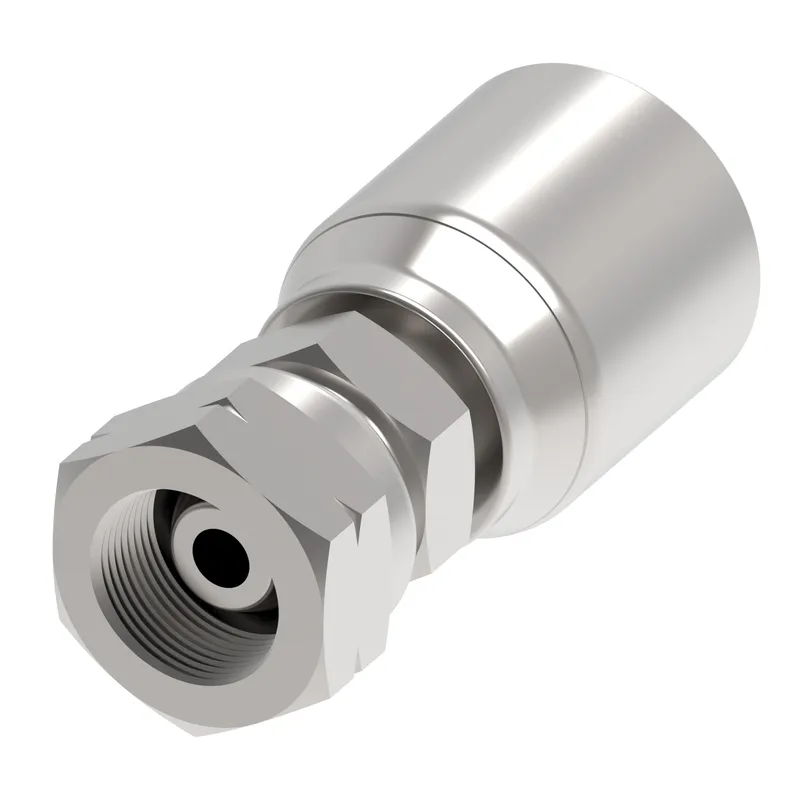

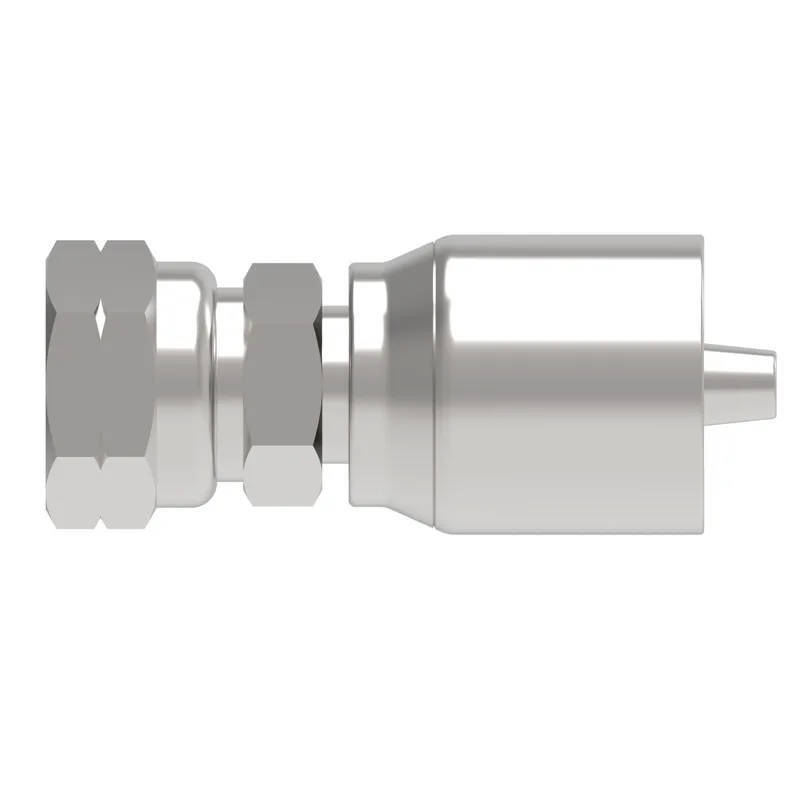

HOSE NIPPLE ASSY, 1P/16, BF/16, CS, STR

MPN: 22611DY-16-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611DY-16-16Z?

Danfoss HOSE NIPPLE ASSY, 1P/16, BF/16, CS, STR, manufacturer part number 22611DY-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.910
A dimension MM	74.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	162-184 lb-ft(220-250 Nm)
End size 1	-16
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.614
Hex size 1 MM	40.996
Hex size 2 IN	1.614
Hex size 2 MM	40.996
Hose cut off factor IN	1.063
Hose cut off factor MM	27.000
Hose size	-16
Inside diameter IN	0.830
Inside diameter MM	21.000
Product height in	1.860
Product height mm	47.244
Product length in	3.250
Product length mm	82.550
Product material	Carbon steel
Product width in	1.830
Product width mm	46.482
Thread sealant	No
Thread size 1	G 1
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

22611DY-16-16Z: frequently asked questions

When can 22611DY-16-16Z be shipped?

22611DY-16-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22611DY-16-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22611DY-16-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22611DY-16-16Z, subject to availability and destination.
