Danfoss 22611DY-06-06Z

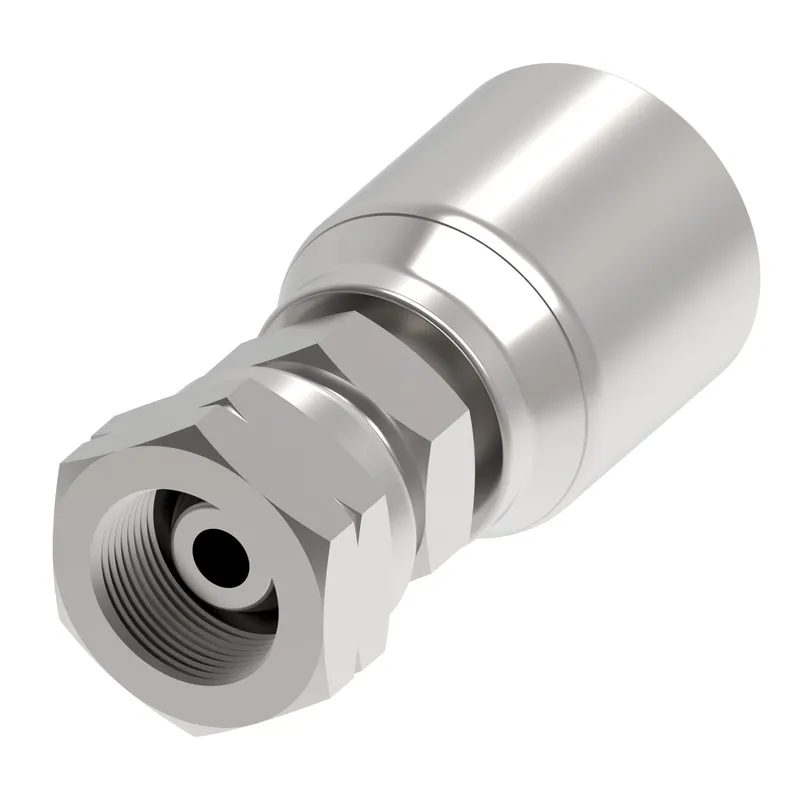

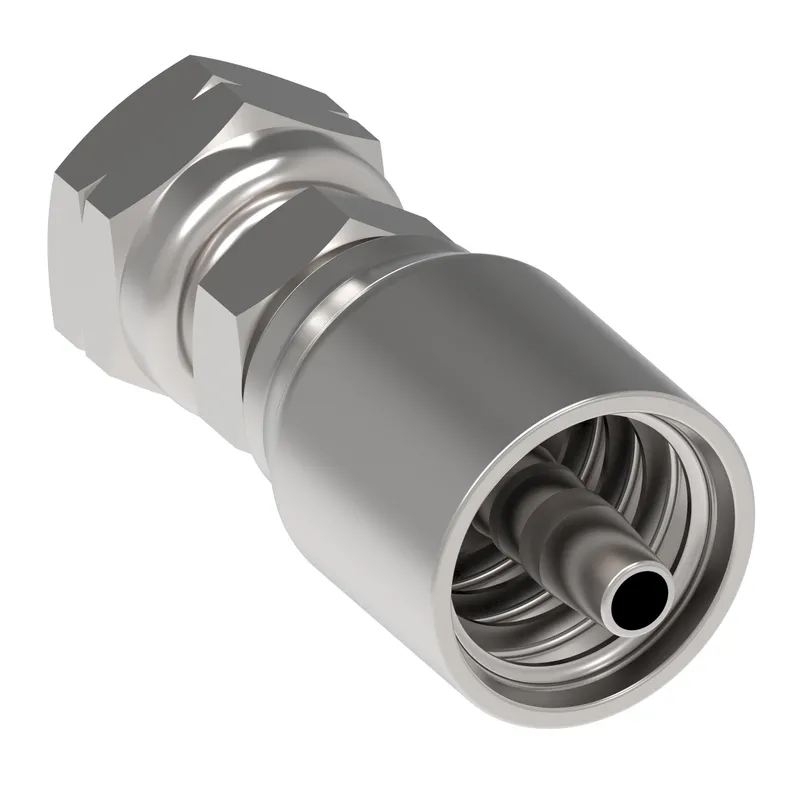

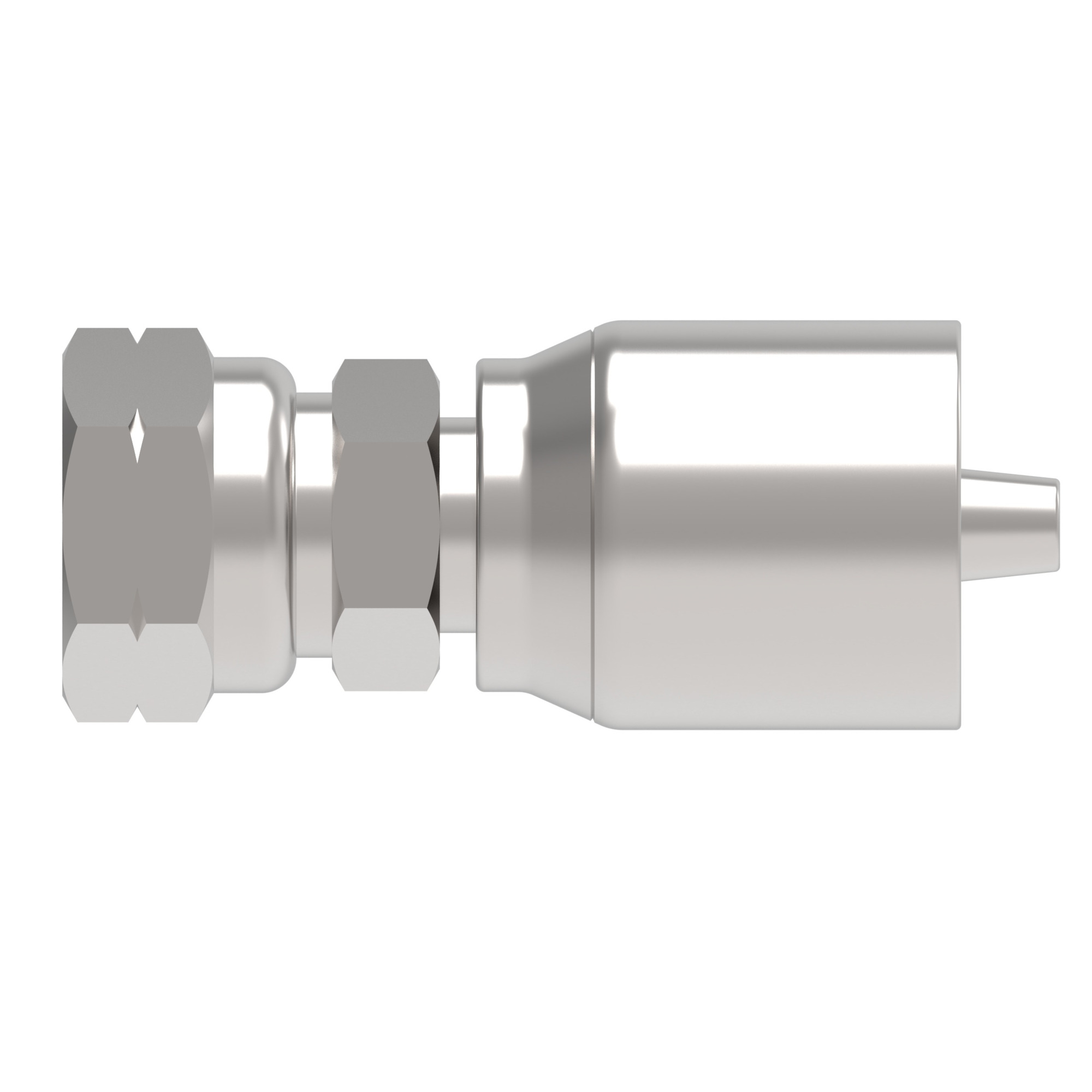

HOSE NIPPLE ASSY, 1P/06, BF/06, CS, STR

MPN: 22611DY-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611DY-06-06Z?

Danfoss HOSE NIPPLE ASSY, 1P/06, BF/06, CS, STR, manufacturer part number 22611DY-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.950
A dimension MM	49.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	33-40 lb-ft(45-55 Nm)
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hex size 2 IN	0.870
Hex size 2 MM	22.098
Hose cut off factor IN	0.770
Hose cut off factor MM	19.500
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	1.070
Product height mm	27.178
Product length in	2.470
Product length mm	62.738
Product material	Carbon steel
Product width in	1.074
Product width mm	27.279
Thread sealant	No
Thread size 1	G 3/8
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

22611DY-06-06Z: frequently asked questions

When can 22611DY-06-06Z be shipped?

22611DY-06-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22611DY-06-06Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22611DY-06-06Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22611DY-06-06Z, subject to availability and destination.
