Danfoss 22611D-20-20WZ

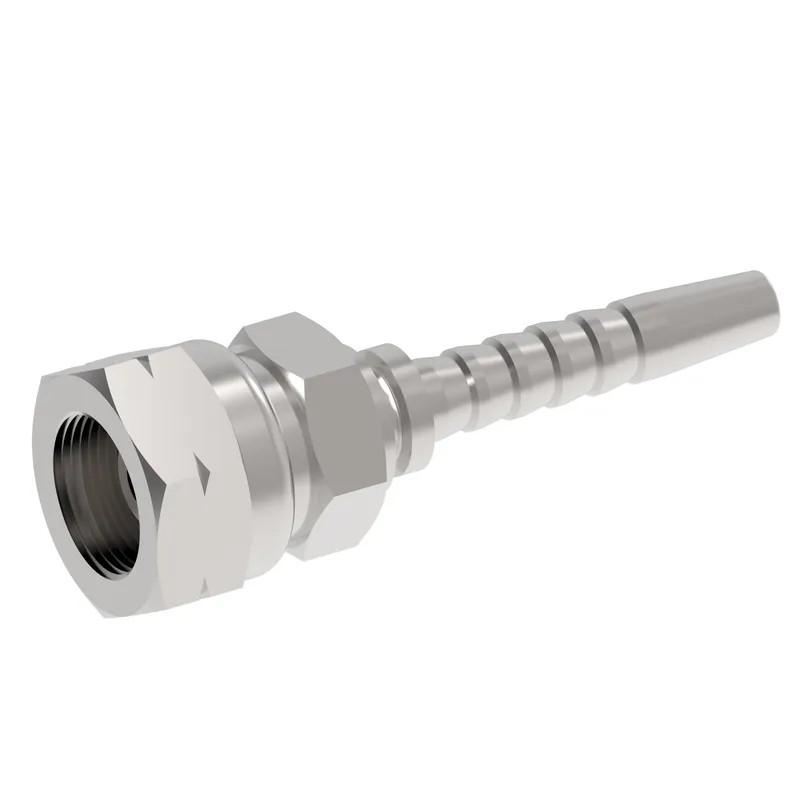

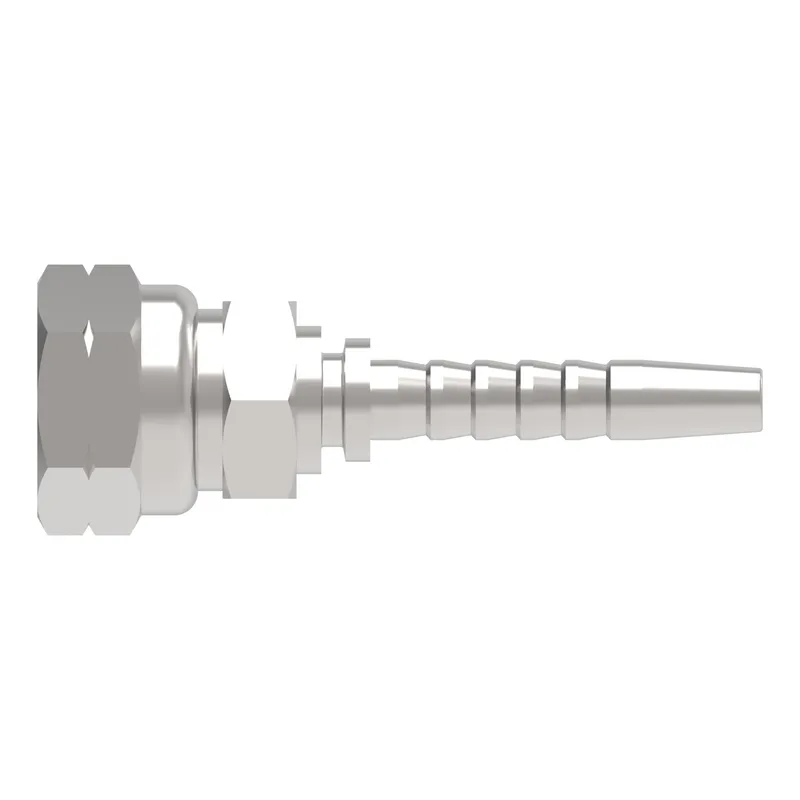

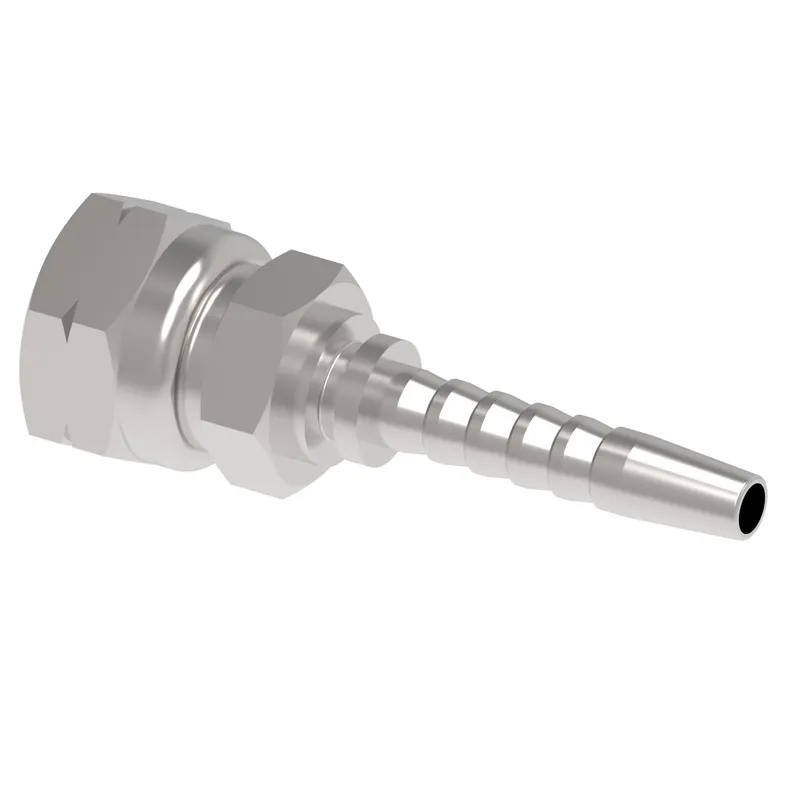

HOSE NIPPLE ASSY, 2P/20, BF/20, CS, STR

MPN: 22611D-20-20WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611D-20-20WZ?

Danfoss HOSE NIPPLE ASSY, 2P/20, BF/20, CS, STR, manufacturer part number 22611D-20-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.930
A dimension MM	100.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	170-192 lb-ft(230-260 Nm)
End size 1	-20
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.960
Hex size 1 MM	49.784
Hex size 2 MM	50.000
Hose cut off factor IN	1.810
Hose cut off factor MM	46.000
Hose size	-20
Inside diameter IN	1.060
Inside diameter MM	27.000
Product height in	2.260
Product height mm	57.404
Product length in	3.720
Product length mm	94.488
Product material	Carbon steel
Product width in	1.960
Product width mm	49.784
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1 1/4
