Danfoss 1G24FLB24TY

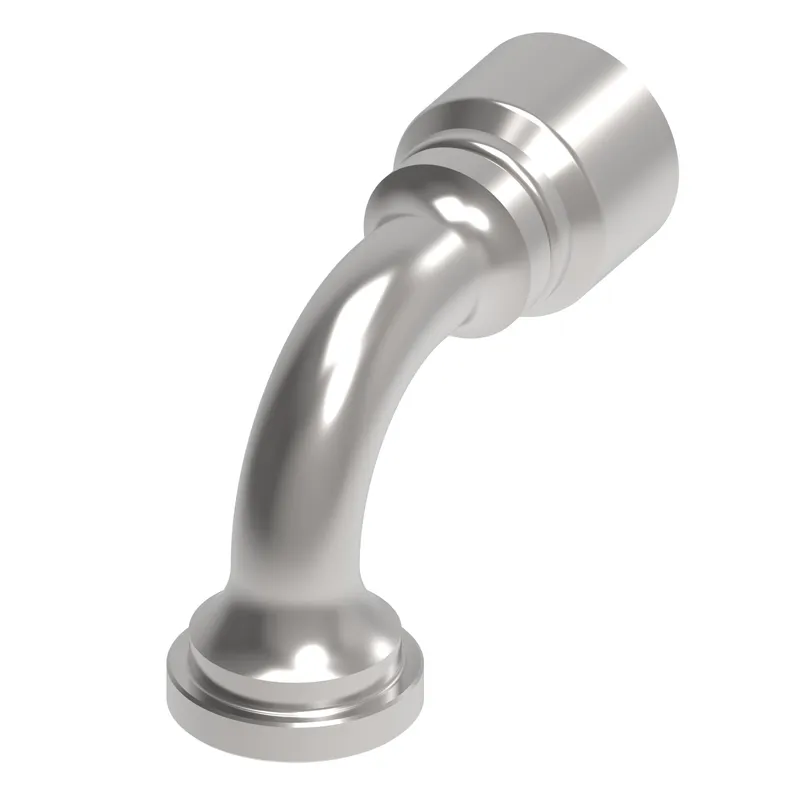

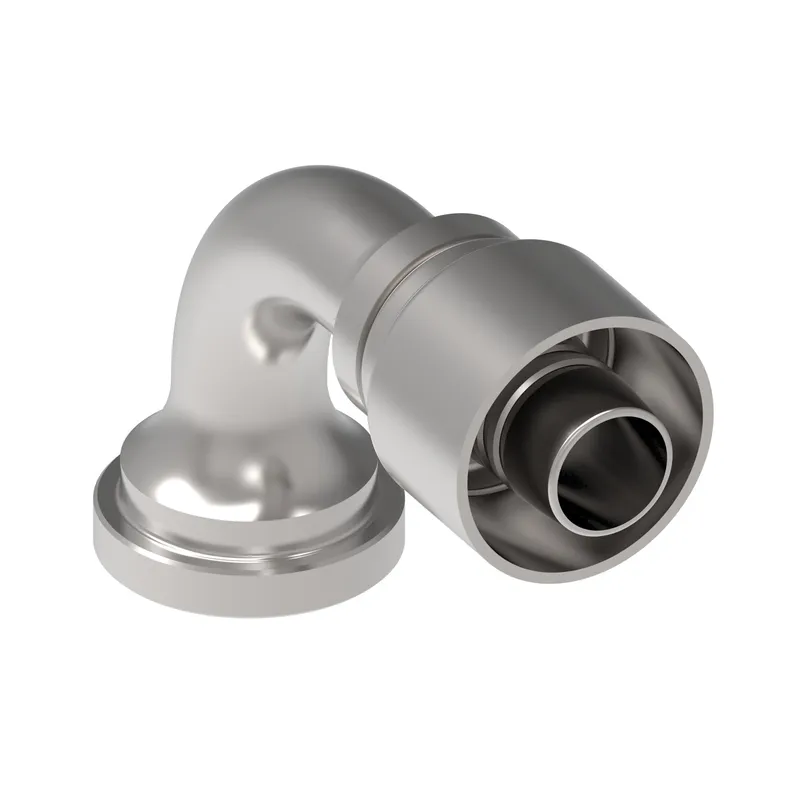

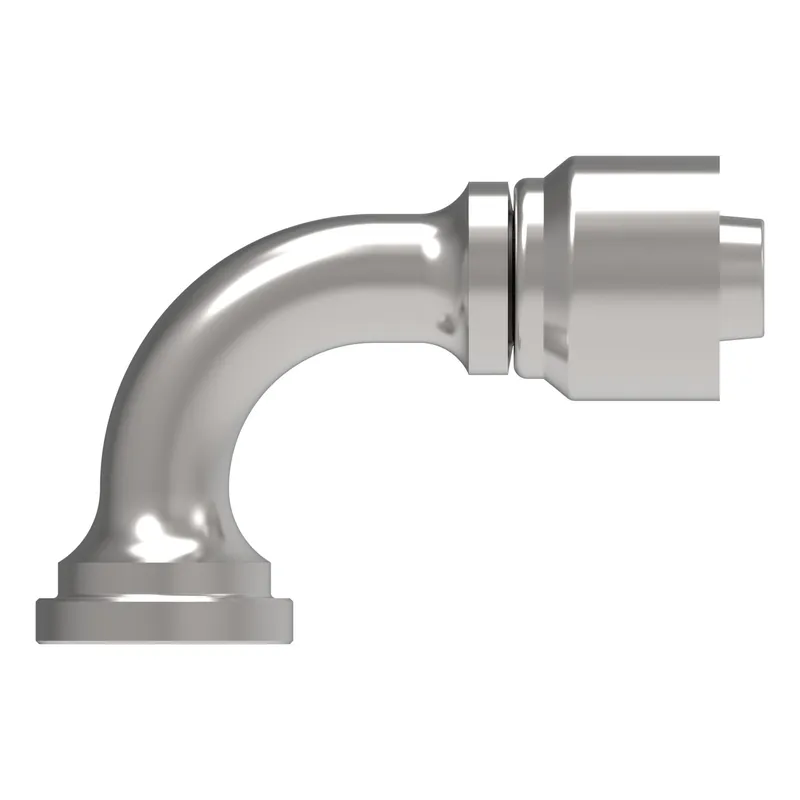

HOSE FTG, 1G/24, C61/24, CS, 90D

MPN: 1G24FLB24TY
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G24FLB24TY?

Danfoss HOSE FTG, 1G/24, C61/24, CS, 90D, manufacturer part number 1G24FLB24TY. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	6.180
A dimension MM	156.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	3.110
Drop dimension MM	79.00
End size 1	-24
End Type 1	Split flange code 61
Finish plating	Nickel plating
Hose cut off factor IN	4.350
Hose cut off factor MM	110.600
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	4.250
Product height mm	107.950
Product length in	7.370
Product length mm	187.198
Product material	Carbon steel
Product width in	2.370
Product width mm	60.198
Series	OTC
Thread sealant	No
Working pressure max BAR	206
Working pressure max PSI	2950
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
