Danfoss 1E20CTA20

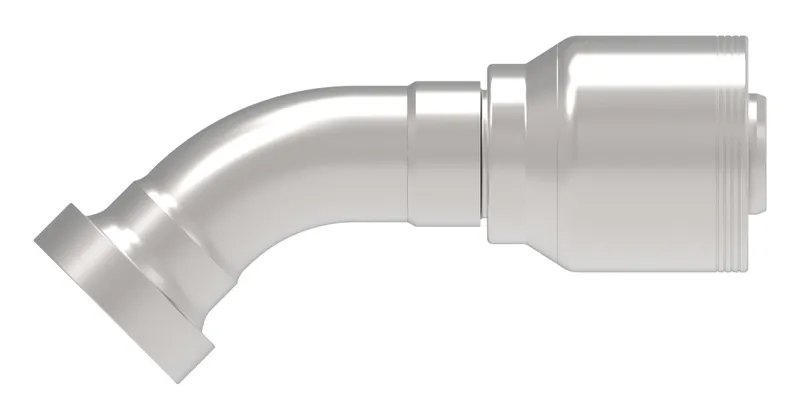

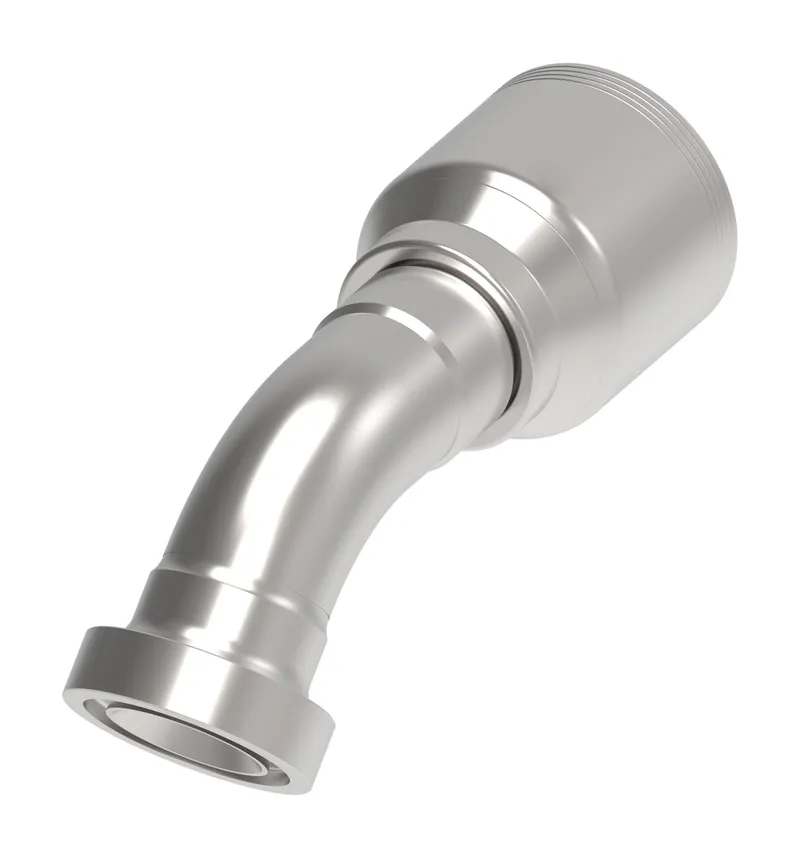

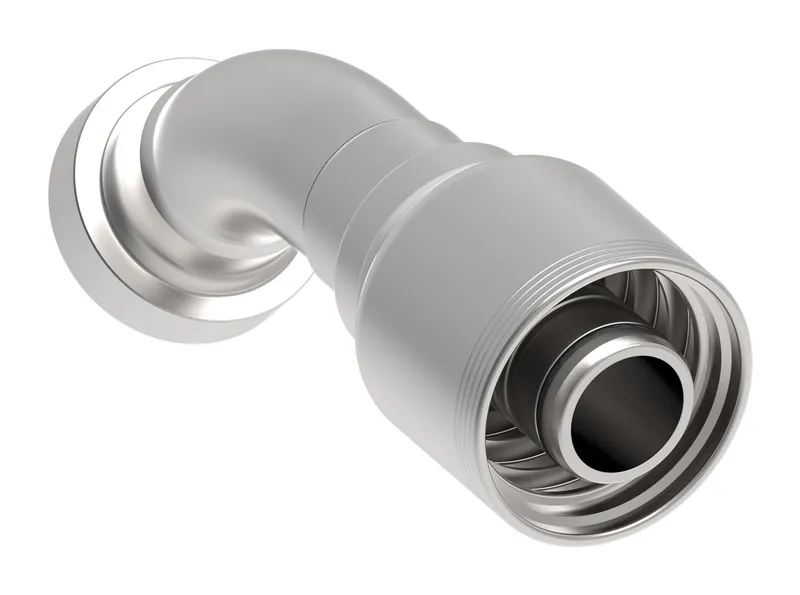

HOSE FTG, 1A/20, CATCL/20, CS, 45D

MPN: 1E20CTA20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20CTA20?

Danfoss HOSE FTG, 1A/20, CATCL/20, CS, 45D, manufacturer part number 1E20CTA20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131973
A dimension IN	6.670
A dimension MM	169.400
Angle shape	45 Degree
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC254
Construction Style	Crimp
Drop dimension IN	1.650
Drop dimension MM	41.80
End size 1	-20
End type 1	Caterpillar flange
Finish plating	Dura-Kote
Hose cut off factor IN	4.500
Hose cut off factor MM	114.300
Hose size	-20
Inside diameter IN	0.990
Inside diameter MM	25.200
Product height in	1.650
Product height mm	41.910
Product length in	7.720
Product length mm	196.088
Product material	Carbon steel
Product width in	2.457
Product width mm	62.408 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
