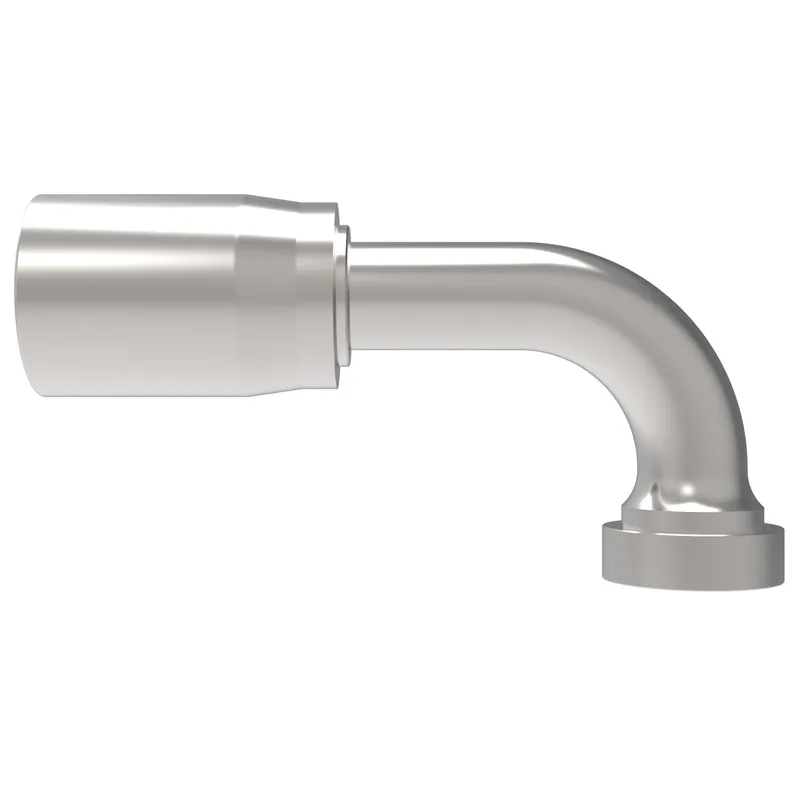

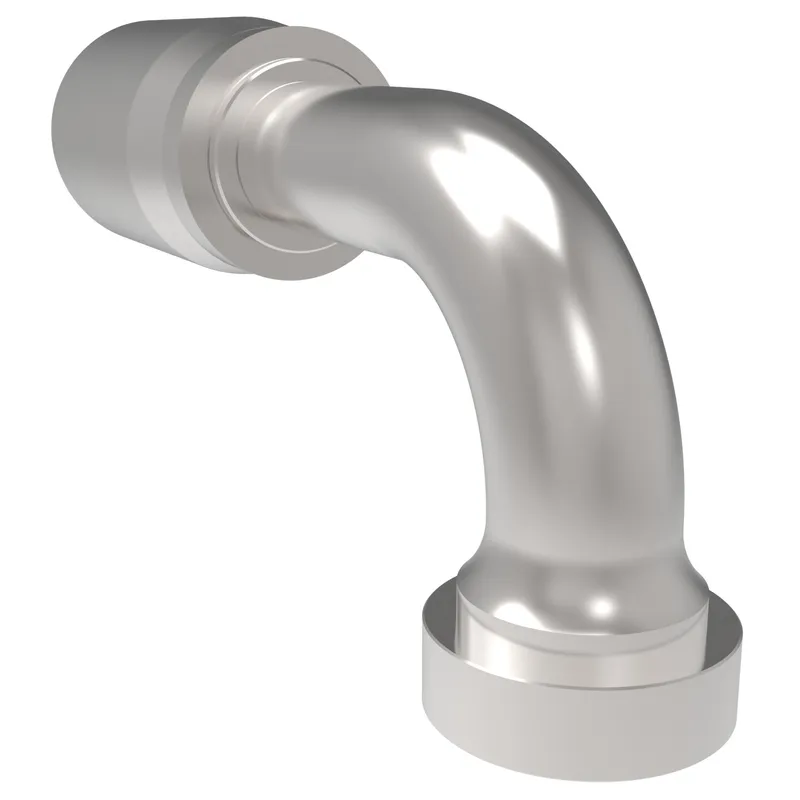

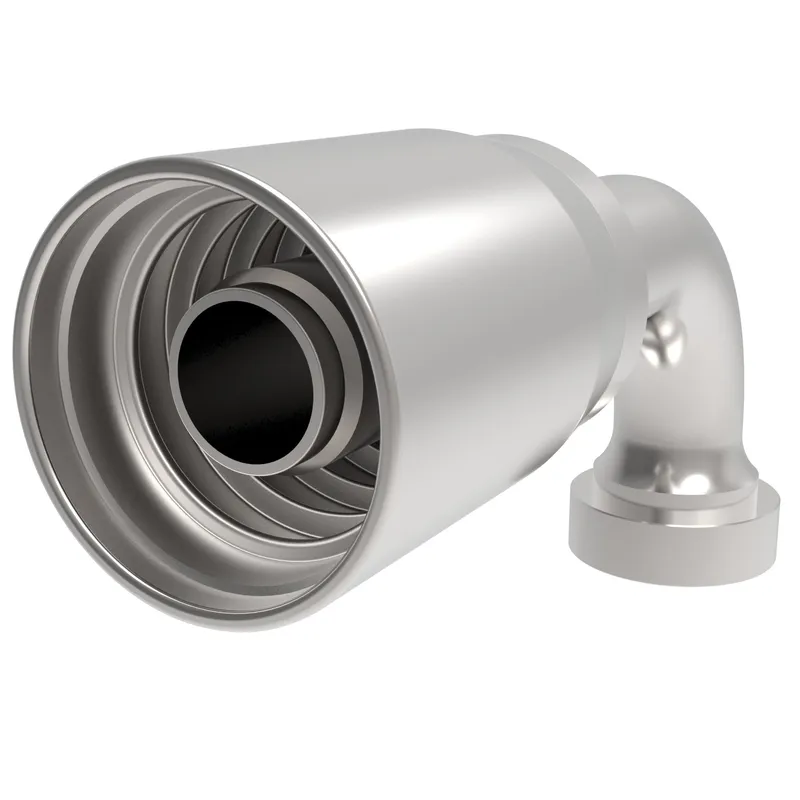

Danfoss 1E20CTB16

HOSE FTG, 1A/16, CATCL/20, CS, 90D

MPN: 1E20CTB16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20CTB16?

Danfoss HOSE FTG, 1A/16, CATCL/20, CS, 90D, manufacturer part number 1E20CTB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131980
A dimension IN	5.720
A dimension MM	145.200
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC254
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
Drop dimension IN	3.660
Drop dimension MM	92.90
End size 1	-20
End type 1	Caterpillar flange
Finish plating	Dura-Kote
Hose cut off factor IN	4.150
Hose cut off factor MM	105.400
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	3.660
Product height mm	92.964
Product length in	6.790
Product length mm	172.466
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
