Danfoss 1E20BFB16

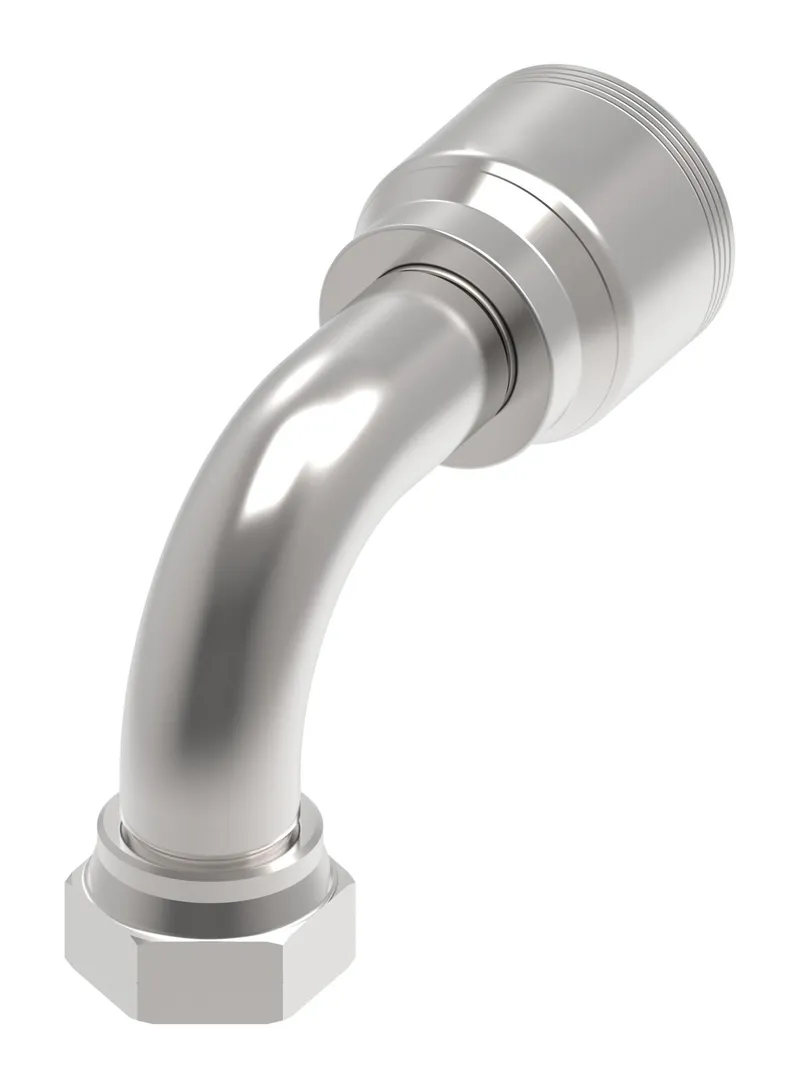

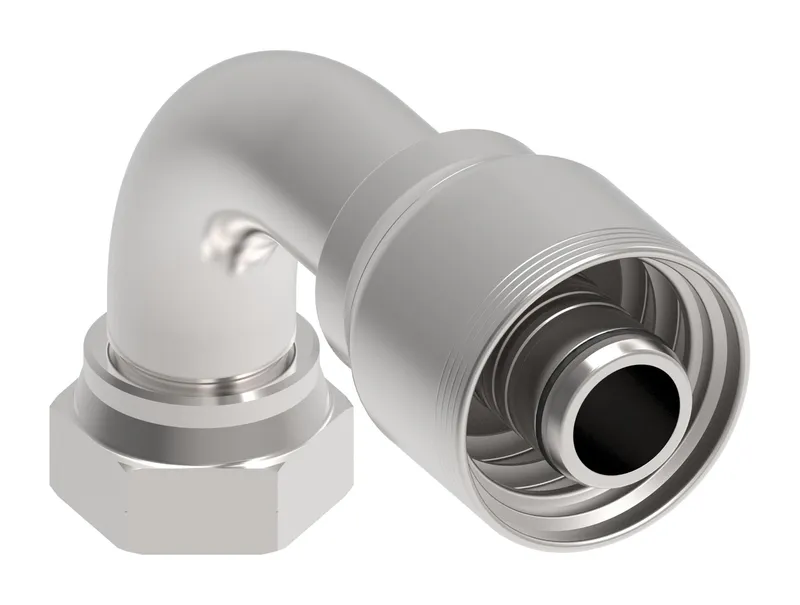

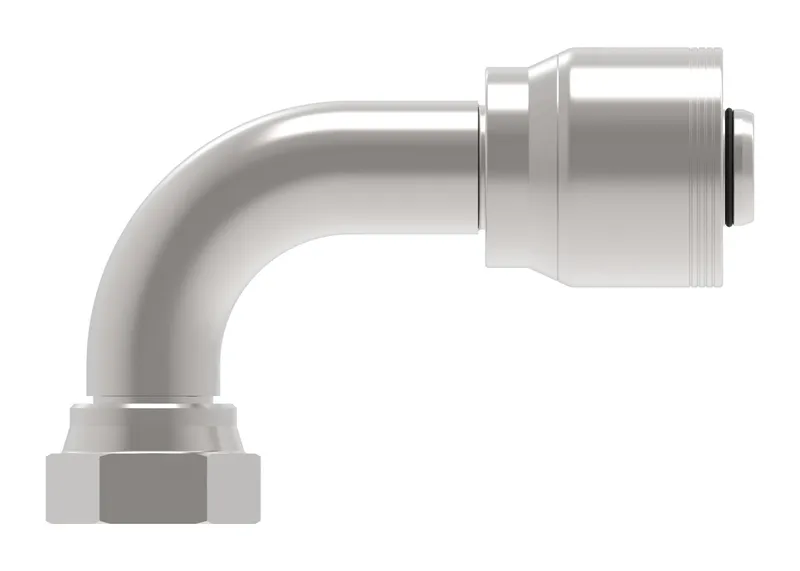

HOSE FTG, 1A/16, BF/20, CS, 90D

MPN: 1E20BFB16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20BFB16?

Danfoss HOSE FTG, 1A/16, BF/20, CS, 90D, manufacturer part number 1E20BFB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.940
A dimension MM	125.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC254
Construction Style	Crimp
Drop dimension IN	3.110
Drop dimension MM	79.00
End size 1	-20
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.968
Hex size 1 MM	49.987
Hose cut off factor IN	3.380
Hose cut off factor MM	85.800
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	3.110
Product height mm	78.994
Product length in	6.440
Product length mm	163.576
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1 1/4
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
