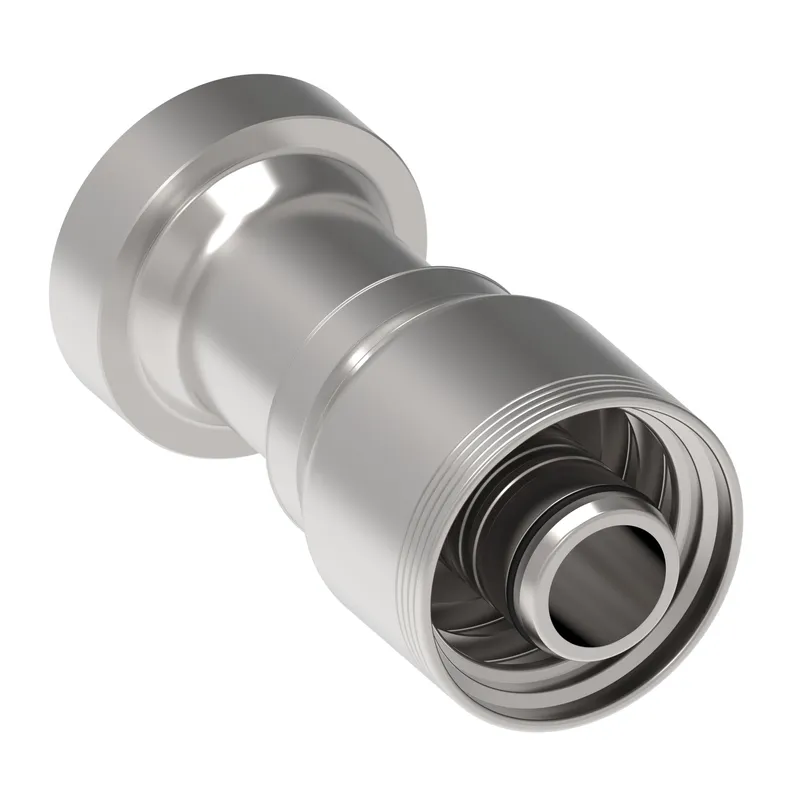

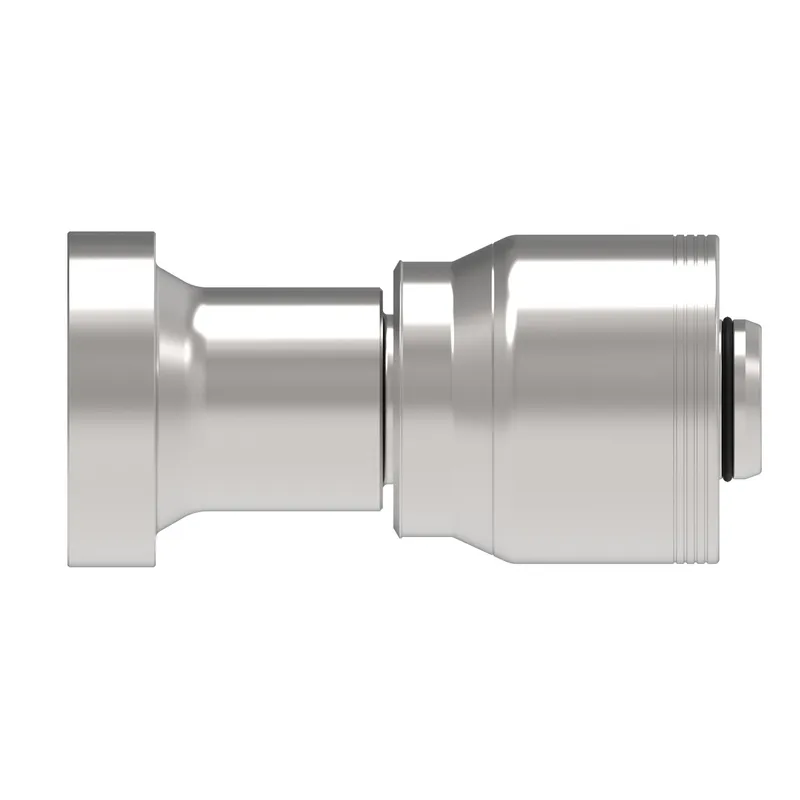

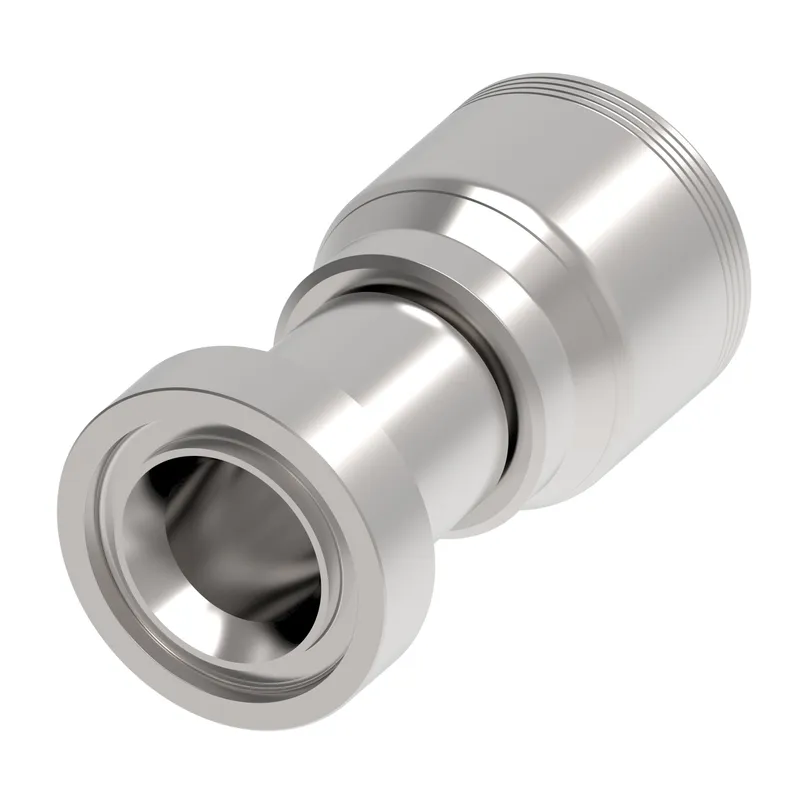

Danfoss 1E20CT16

HOSE FTG, 1A/16, CATCL/20, CS, STR

MPN: 1E20CT16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20CT16?

Danfoss HOSE FTG, 1A/16, CATCL/20, CS, STR, manufacturer part number 1E20CT16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131942
A dimension IN	4.130
A dimension MM	104.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
End size 1	-20
End type 1	Caterpillar flange
Finish plating	Dura-Kote
Hose cut off factor IN	2.560
Hose cut off factor MM	65.000
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	2.130
Product height mm	54.102
Product length in	5.370
Product length mm	136.398
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
