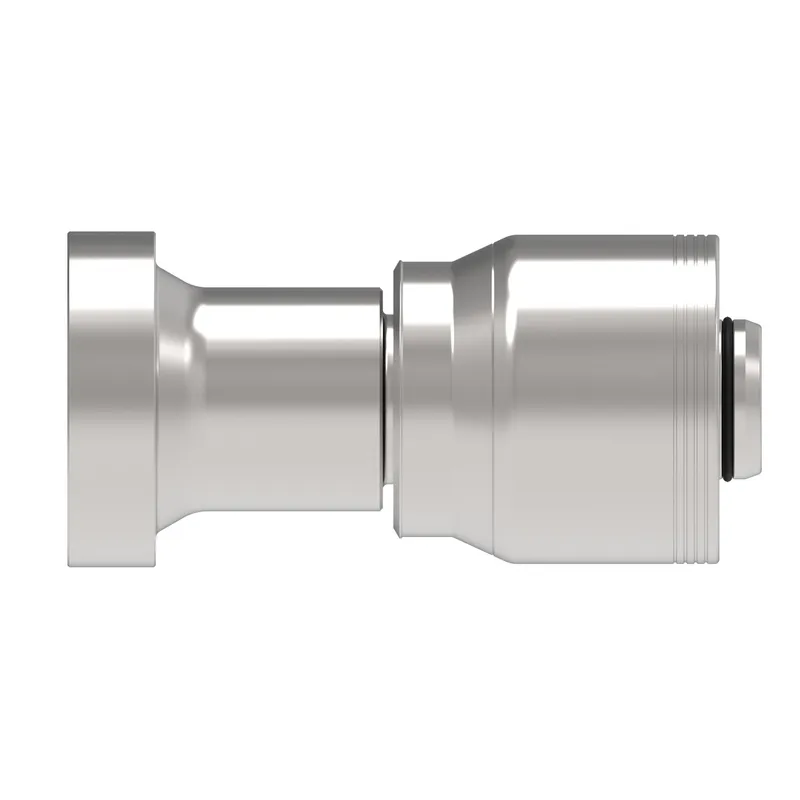

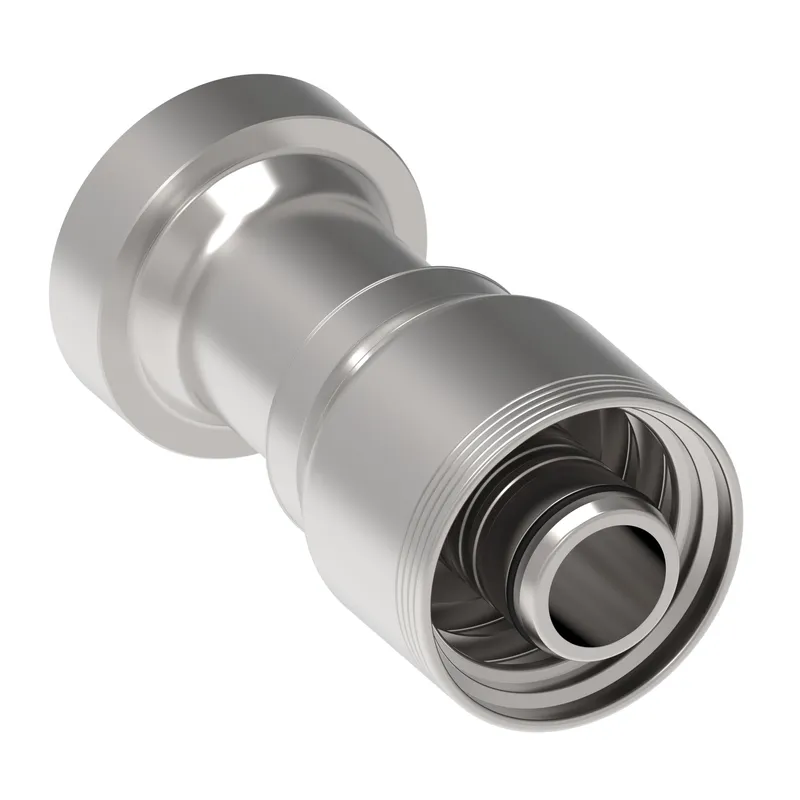

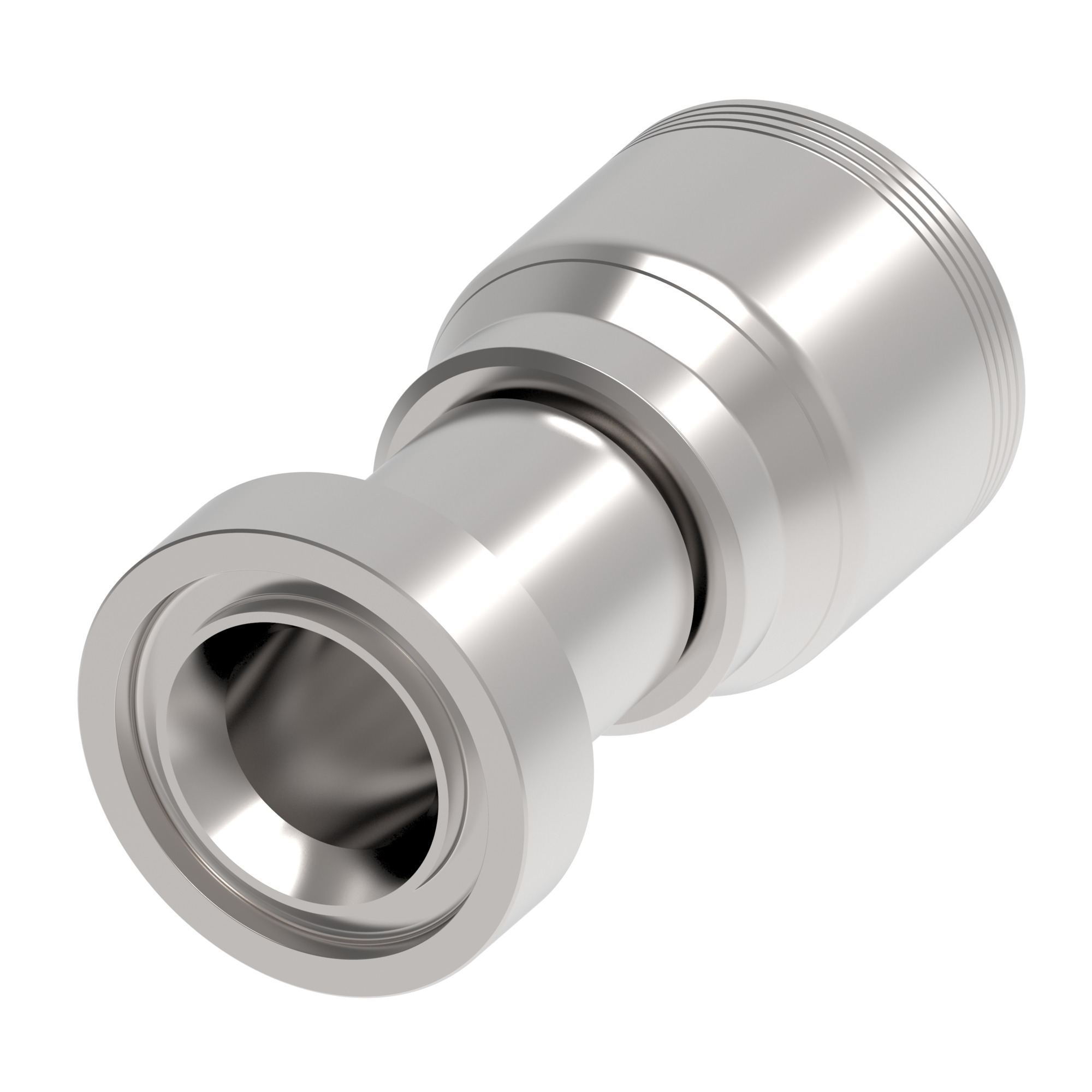

Danfoss 1E20CT20

HOSE FTG, 1A/20, CATCL/20, CS, STR

MPN: 1E20CT20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20CT20?

Danfoss HOSE FTG, 1A/20, CATCL/20, CS, STR, manufacturer part number 1E20CT20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131959
A dimension IN	4.900
A dimension MM	124.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC254
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
End size 1	-20
End type 1	Caterpillar flange
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.000
Hose cut off factor IN	2.720
Hose cut off factor MM	69.100
Hose size	-20
Inside diameter IN	0.990
Inside diameter MM	25.200
Product height in	2.457
Product height mm	62.408
Product length in	6.000
Product length mm	152.400
Product material	Carbon steel
Product width in	2.457
Product width mm	62.408 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
