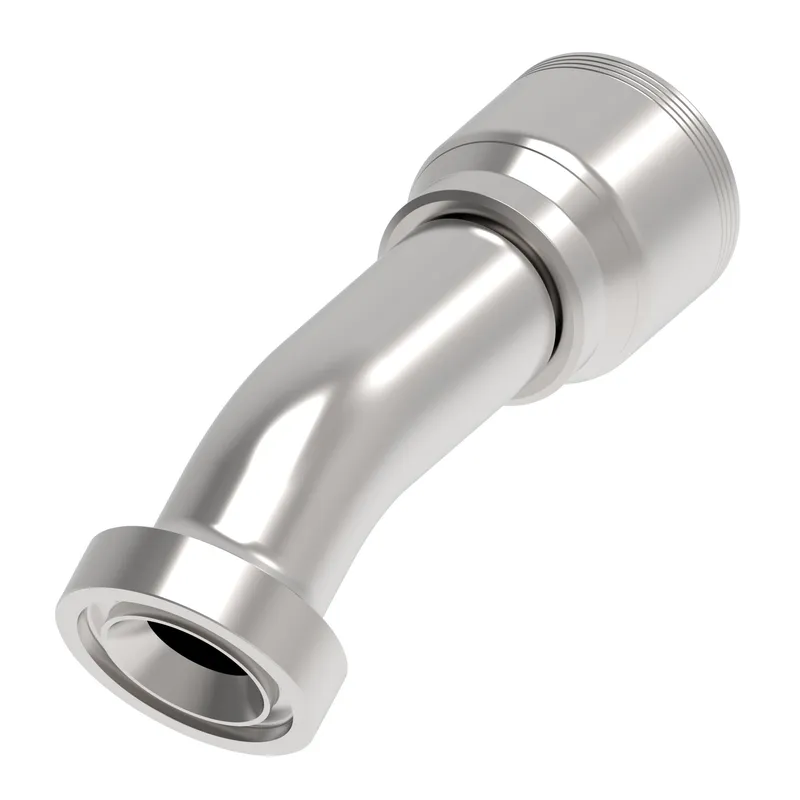

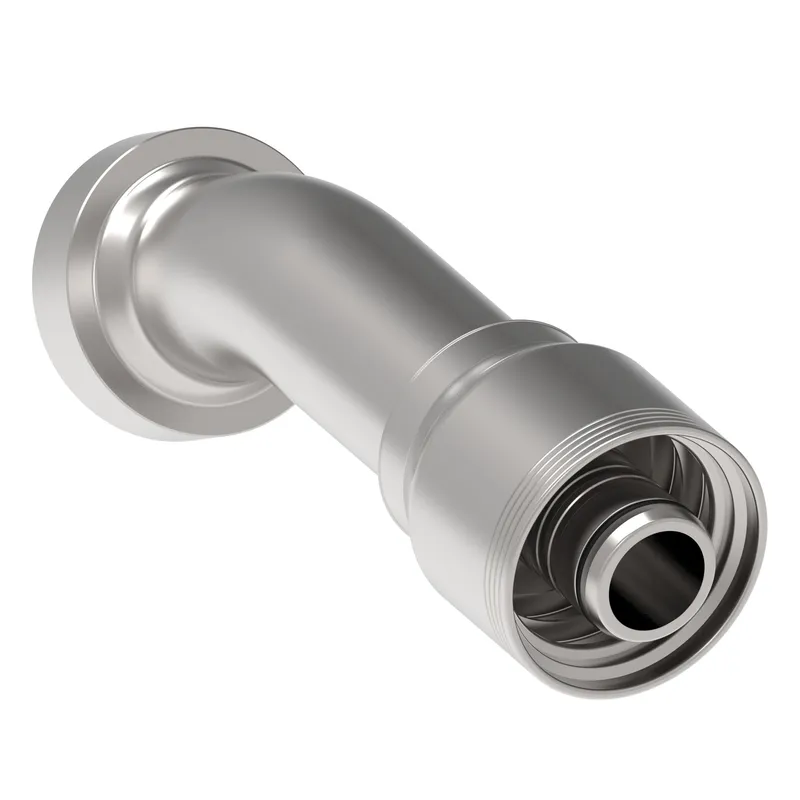

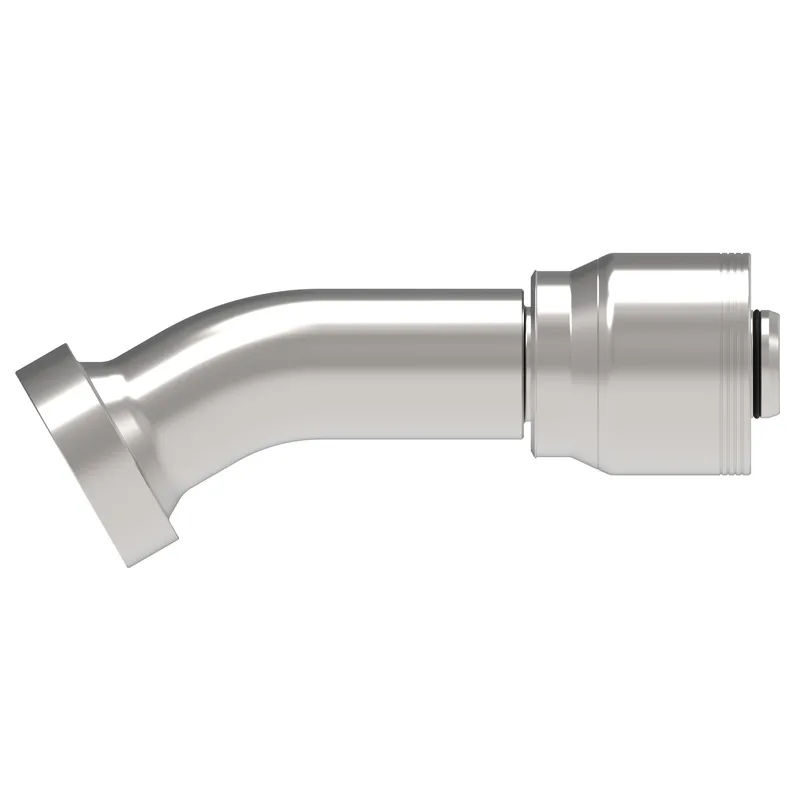

HOSE FTG, 1A/16, CATCL/20, CS, 30D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1E20CTF16 be shipped?
1E20CTF16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1E20CTF16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1E20CTF16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E20CTF16, subject to availability and destination.
Danfoss HOSE FTG, 1A/16, CATCL/20, CS, 30D, manufacturer part number 1E20CTF16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 6.370 |
| A dimension MM | 161.700 |
| Angle shape | 30 Degree |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible hoses | FC273, FC273B, FC500, GH466, GH810, FC254, FC606, GH506 |
| Construction Style | Crimp |
| Drop dimension IN | 1.000 |
| Drop dimension MM | 25.30 |
| End size 1 | -20 |
| End type 1 | Caterpillar flange |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 4.800 |
| Hose cut off factor MM | 122.000 |
| Hose size | -16 |
| Inside diameter IN | 0.760 |
| Inside diameter MM | 19.200 |
| Product height in | 3.130 |
| Product height mm | 79.502 |
| Product length in | 7.480 |
| Product length mm | 189.992 |
| Product material | Carbon steel |
| Product width in | 2.130 |
| Product width mm | 54.102 mm |
| Seal material | Ethylene propylene (EPDM) |
| Series | 1A/Z Series |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
