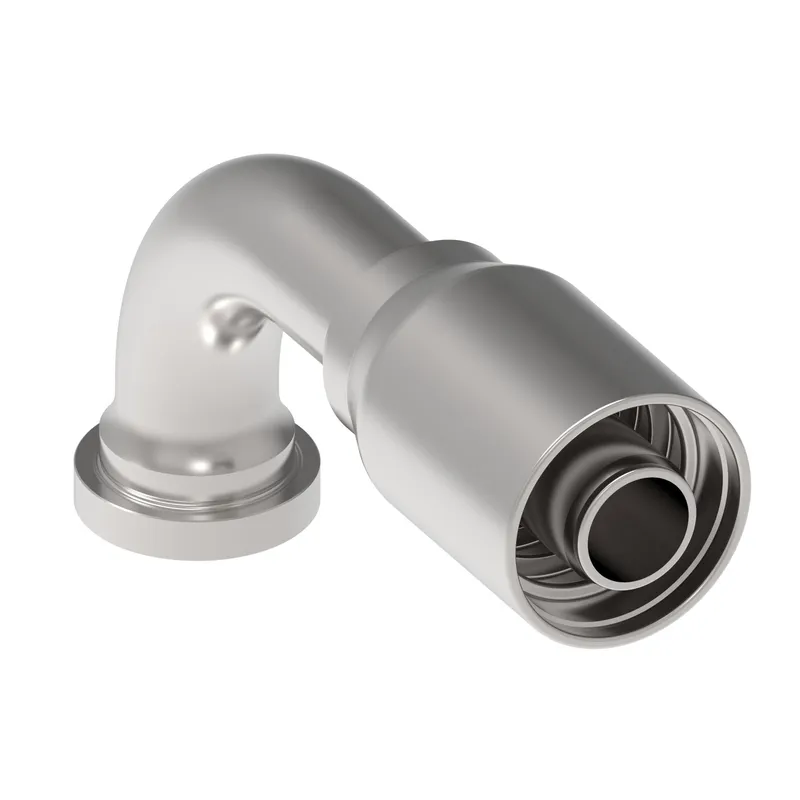

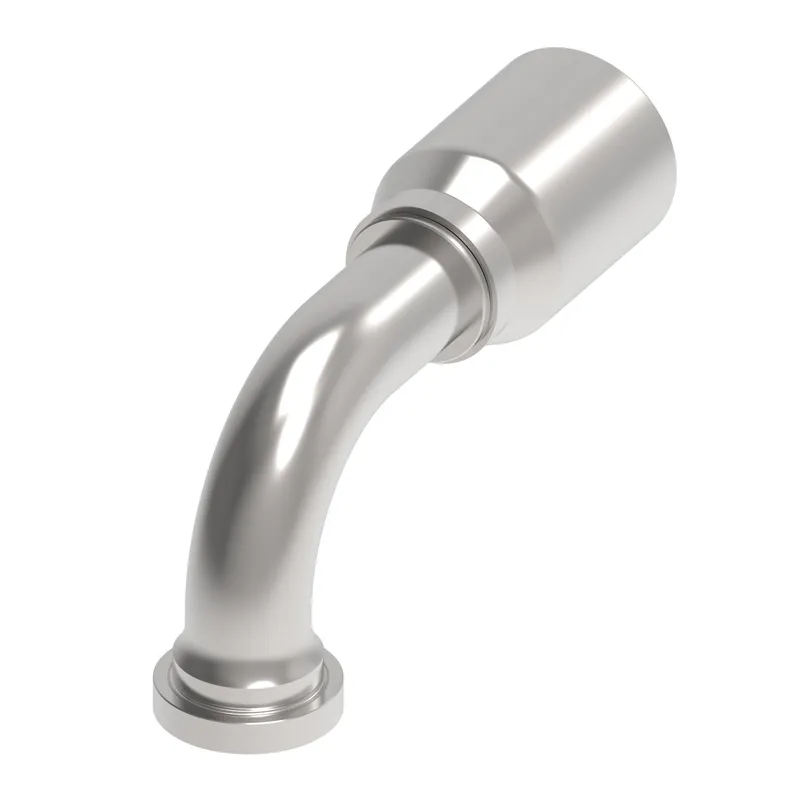

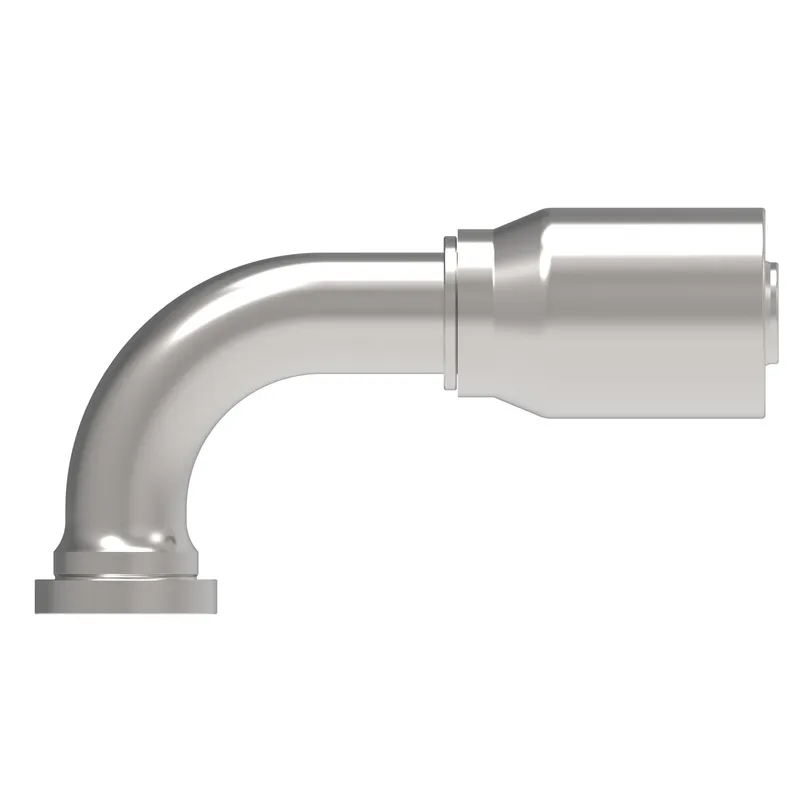

What is the Danfoss 1E16FLB16?

Danfoss HOSE FTG, 1A/16, C61/16, CS, 90D, manufacturer part number 1E16FLB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146131898
A dimension IN4.960
A dimension MM126.000
Angle shape90 Degree
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN1.00
Compatible tube OD MM25.400
Construction StyleCrimp
Drop dimension IN2.800
Drop dimension MM71.00
End size 1-16
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN3.390
Hose cut off factor MM86.200
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in2.800
Product height mm71.120
Product length in6.170
Product length mm156.718
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN1.000
Tube OD 1 MM25.400
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
