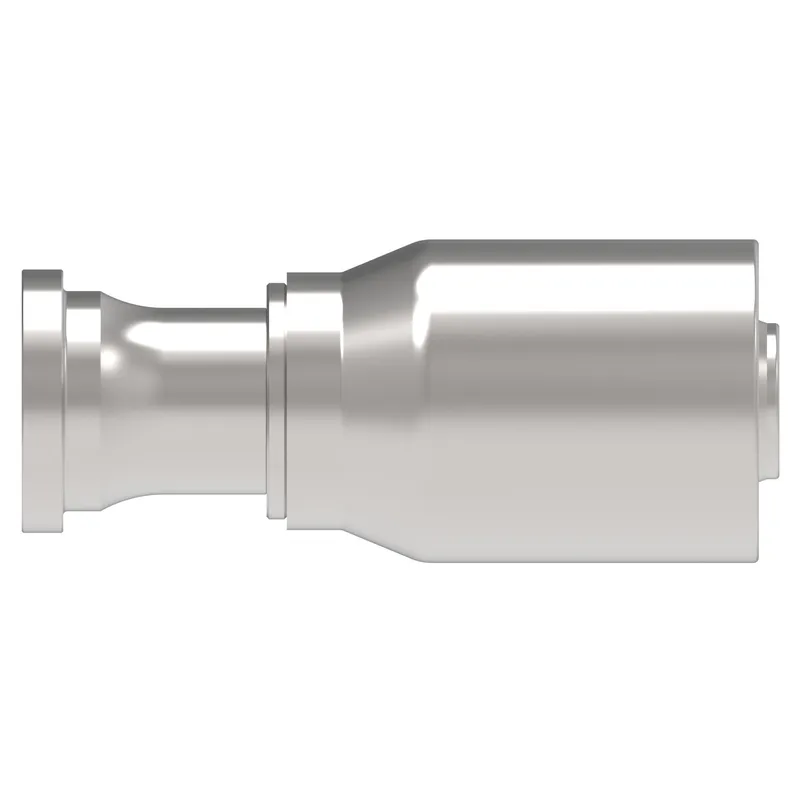

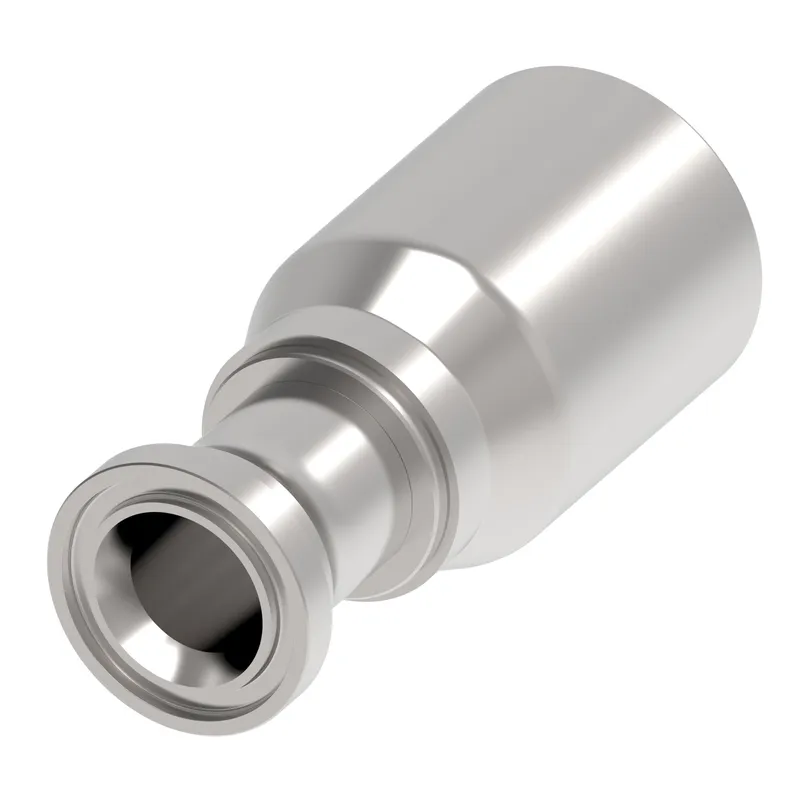

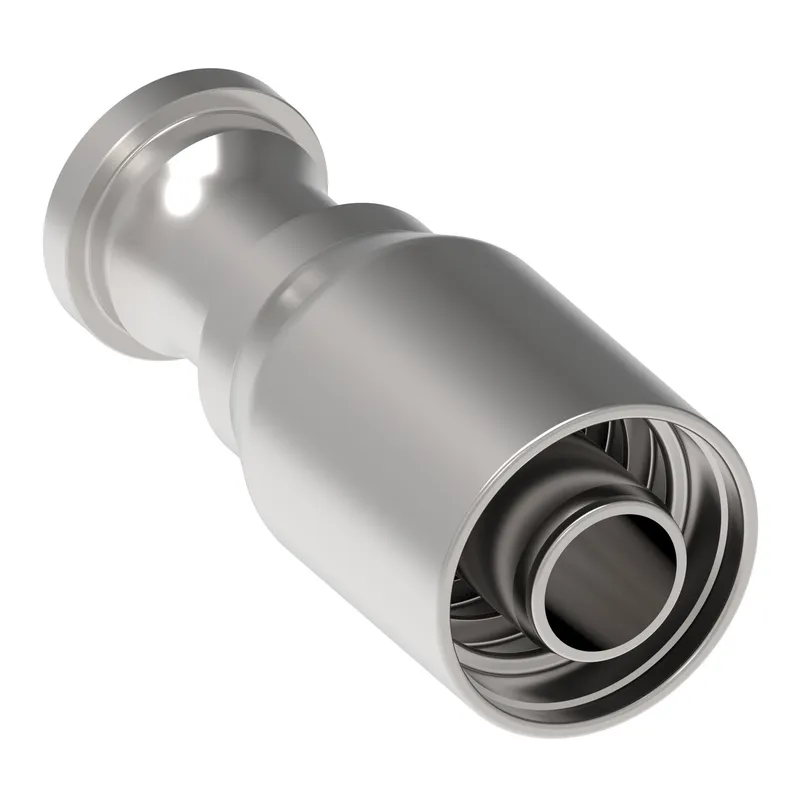

Danfoss 1E16FL16

HOSE FTG, 1A/16, C61/16, CS, STR

MPN
1E16FL16
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E16FL16?

Danfoss HOSE FTG, 1A/16, C61/16, CS, STR, manufacturer part number 1E16FL16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146131850
A dimension IN3.670
A dimension MM93.300
Angle shapeStraight
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Construction StyleCrimp
End size 1-16
End type 1Split flange code 61
Finish platingDura-Kote
Hex size 1 IN0.000
Hex size 1 MM0.000
Hex size 2 IN0.000
Hose cut off factor IN2.110
Hose cut off factor MM53.600
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in2.126
Product height mm54.000
Product length in4.780
Product length mm121.412
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1E16FL16: frequently asked questions

When can 1E16FL16 be shipped?

1E16FL16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E16FL16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E16FL16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E16FL16, subject to availability and destination.
