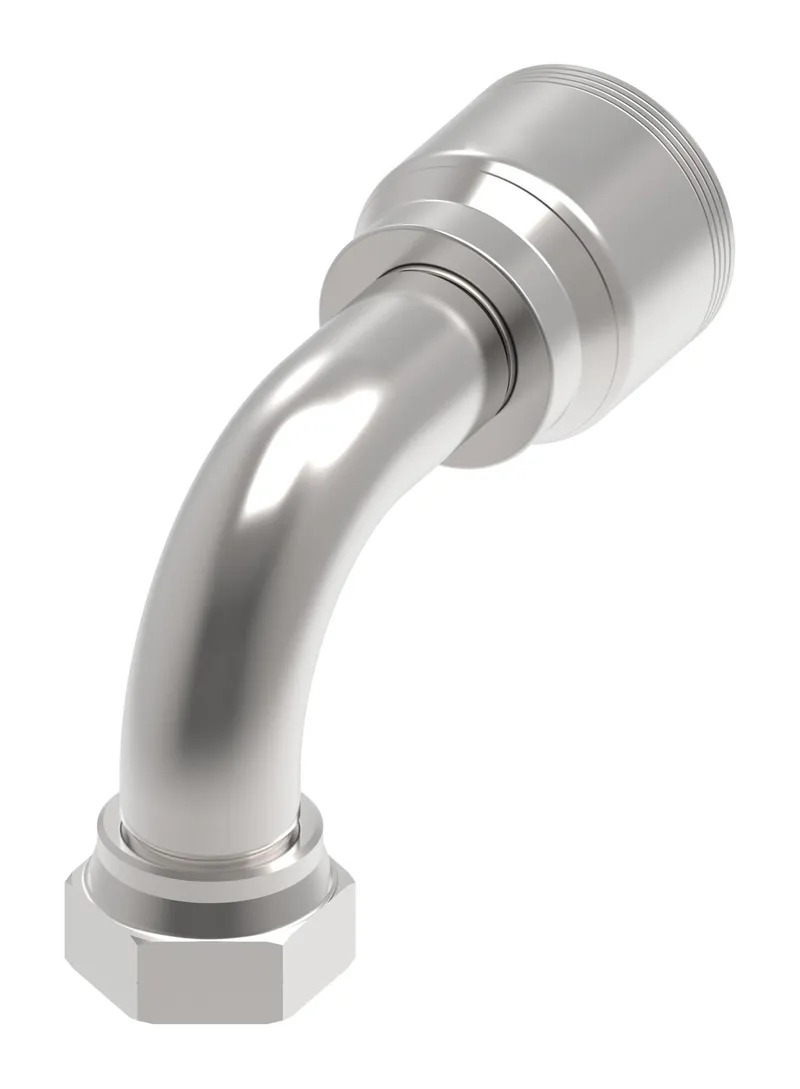

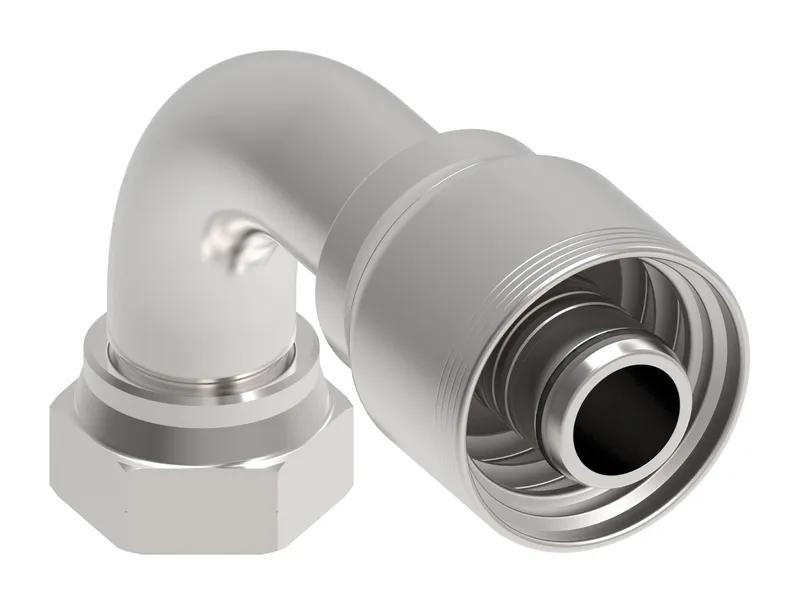

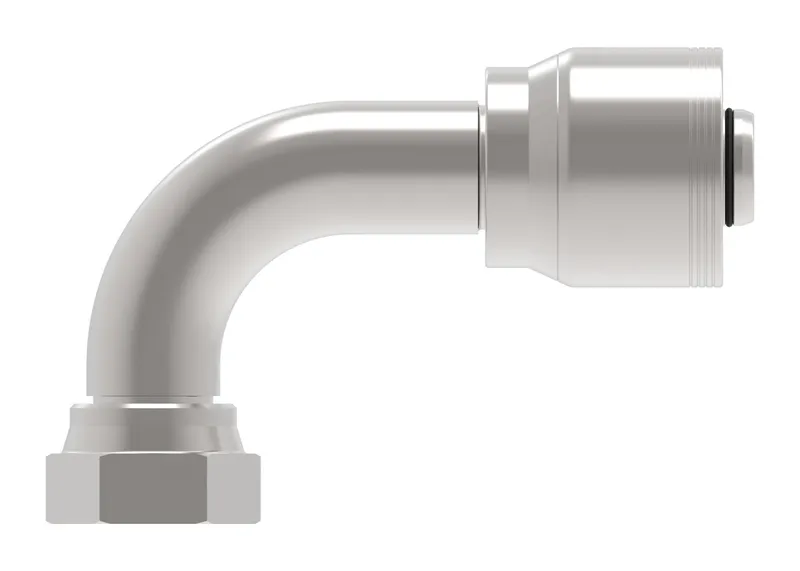

Danfoss 1E16BFB12

HOSE FTG, 1A/12, BF/16, CS, 90D

MPN: 1E16BFB12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E16BFB12?

Danfoss HOSE FTG, 1A/12, BF/16, CS, 90D, manufacturer part number 1E16BFB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131683
A dimension IN	4.170
A dimension MM	105.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	2.680
Drop dimension MM	68.00
End size 1	-16
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hose cut off factor IN	2.740
Hose cut off factor MM	69.600
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	2.680
Product height mm	68.000
Product length in	4.170
Product length mm	105.900
Product material	Carbon steel
Product width in	1.614
Product width mm	41.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread size 1	G 1
Working pressure max BAR	280
Working pressure max PSI	4050
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
