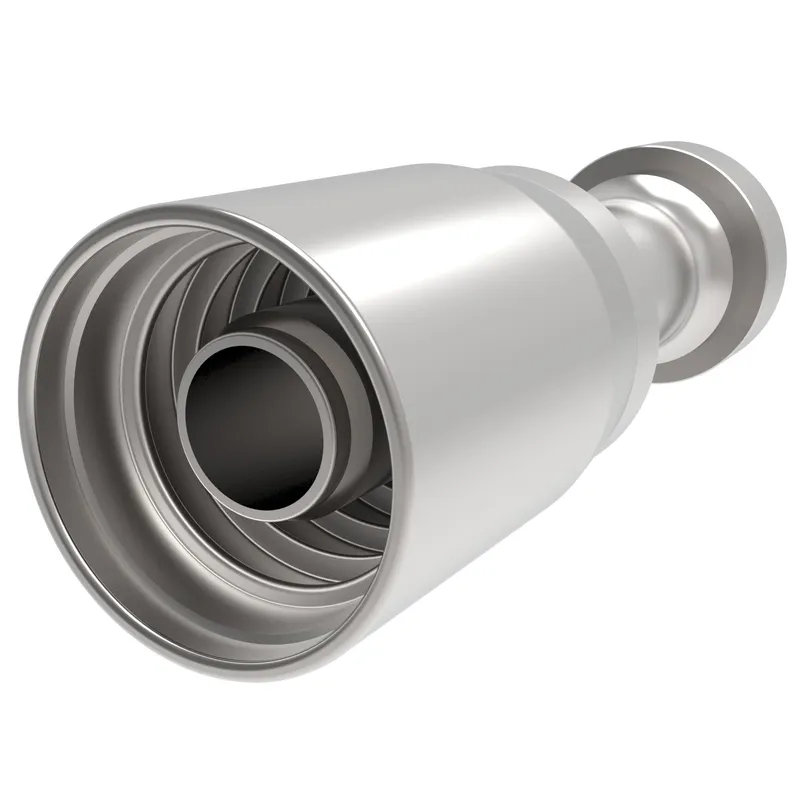

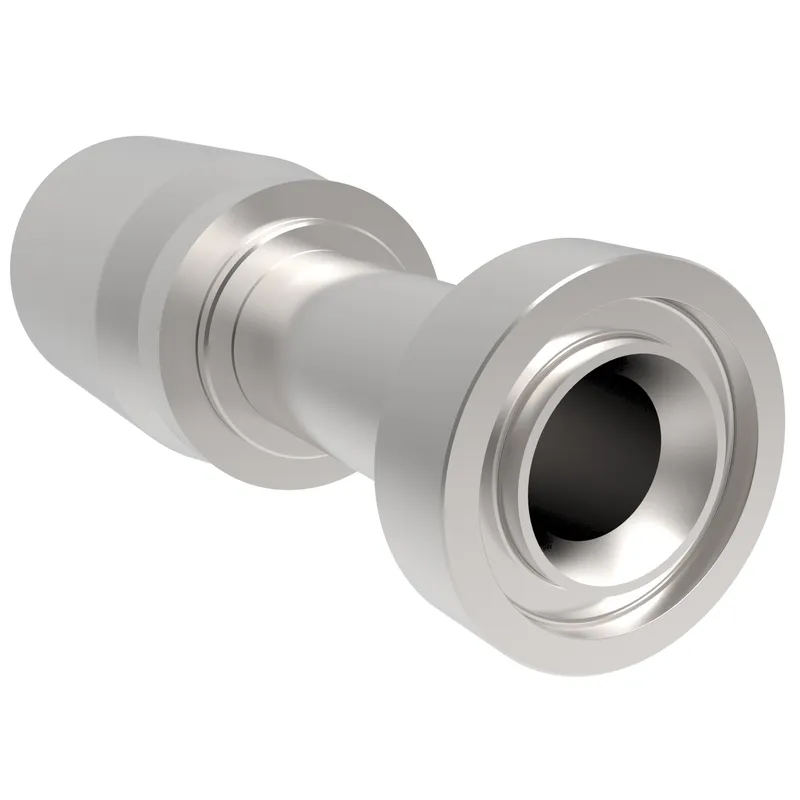

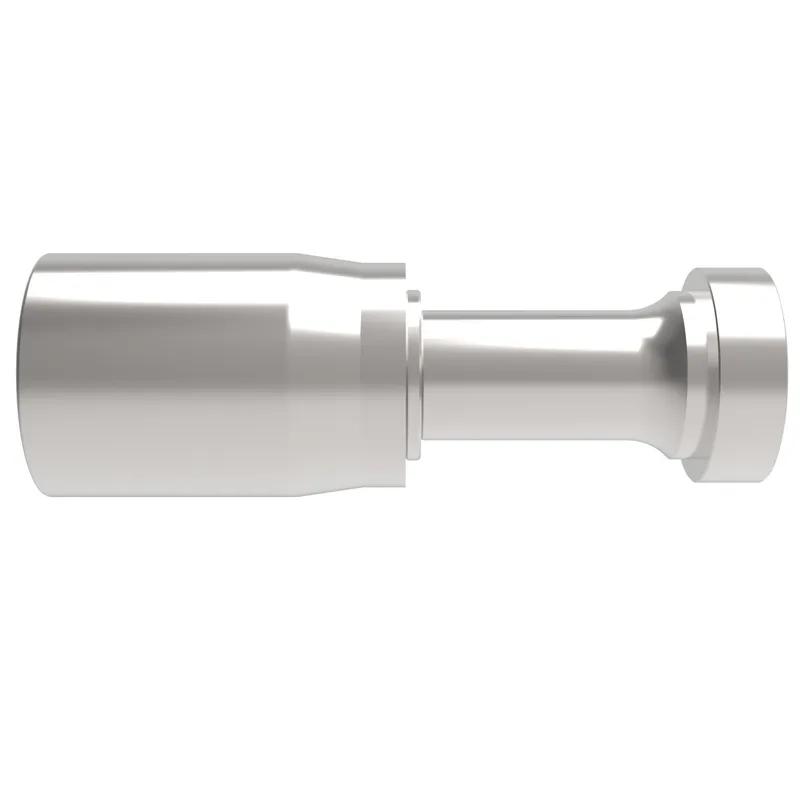

What is the Danfoss 1E16CT16?

Danfoss HOSE FTG, 1A/16, CATCL/16, CS, STR, manufacturer part number 1E16CT16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146131713
A dimension IN4.020
A dimension MM102.100
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN1.00
Compatible tube OD MM25.400
Construction StyleCrimp
End size 1-16
End size 2-16
End type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN2.450
Hose cut off factor MM62.300
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in2.126
Product height mm54.000
Product length in5.510
Product length mm139.954
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN1.000
Tube OD 1 MM25.400
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1E16CT16: frequently asked questions

When can 1E16CT16 be shipped?

1E16CT16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E16CT16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E16CT16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E16CT16, subject to availability and destination.
