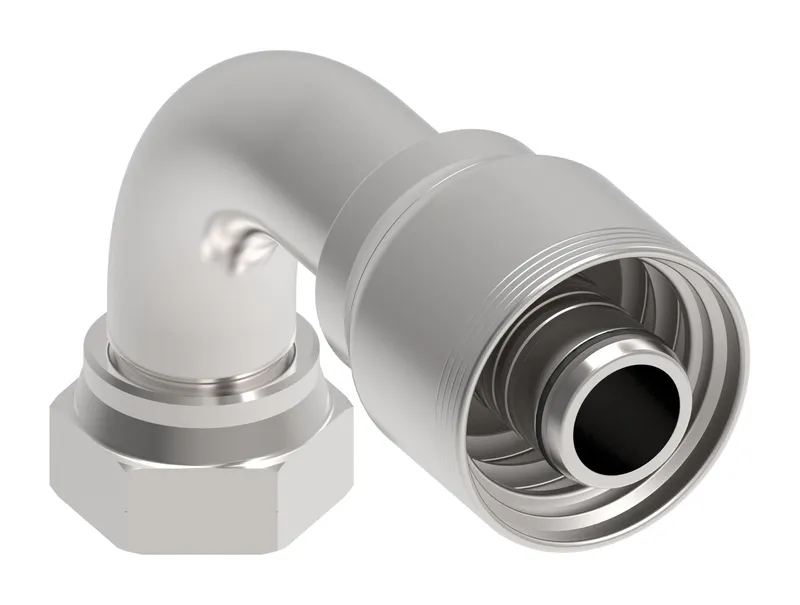

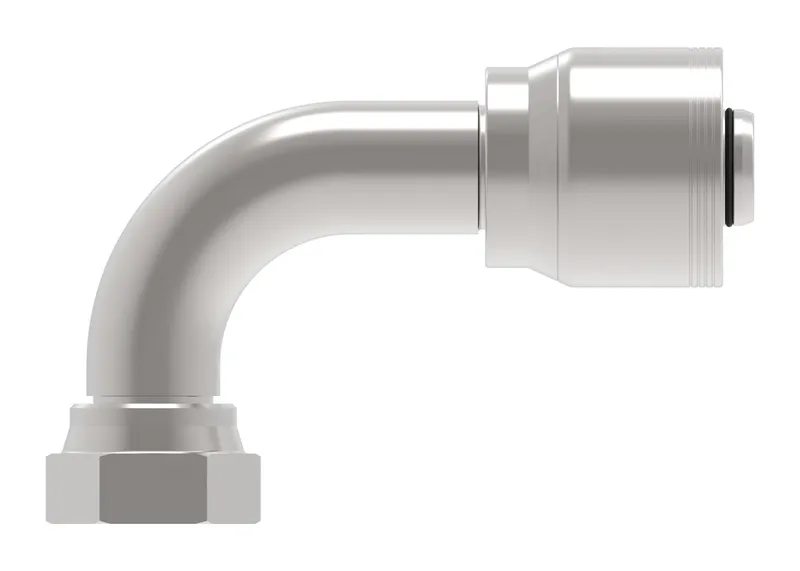

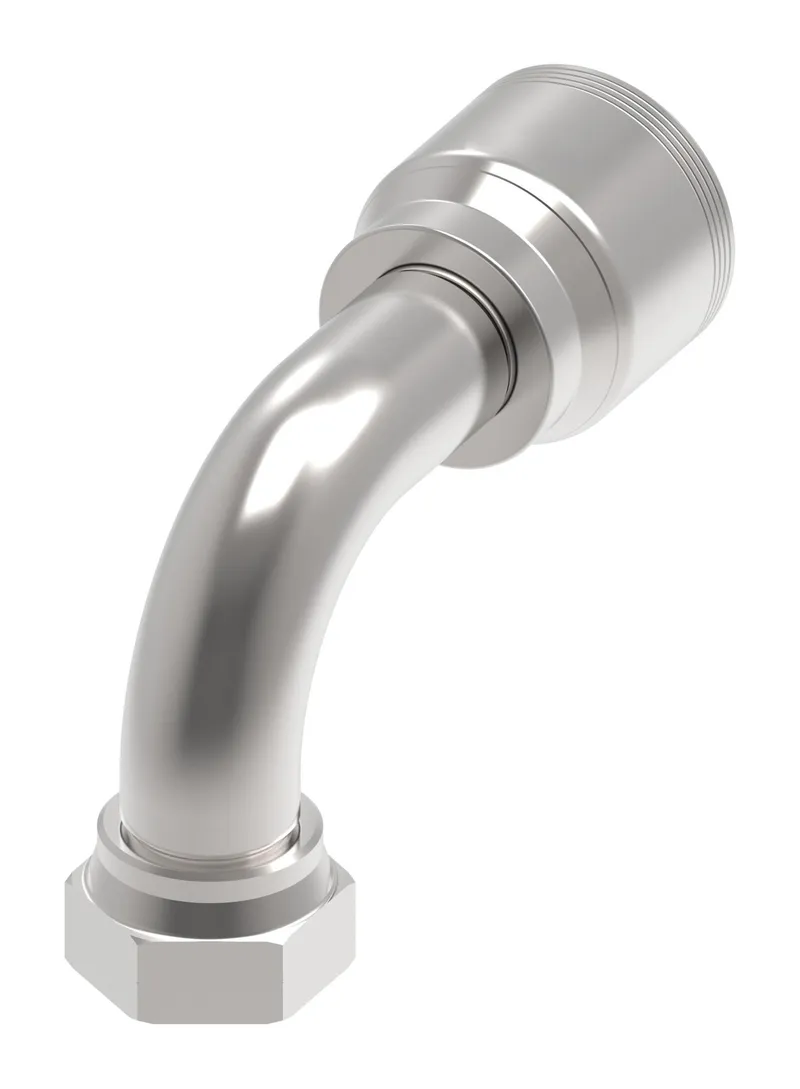

Danfoss 1E16BFB16

HOSE FTG, 1A/16, BF/16, CS, 90D

MPN: 1E16BFB16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E16BFB16?

Danfoss HOSE FTG, 1A/16, BF/16, CS, 90D, manufacturer part number 1E16BFB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131690
A dimension IN	4.940
A dimension MM	125.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Construction Style	Crimp
Drop dimension IN	2.680
Drop dimension MM	68.00
End size 1	-16
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.614
Hex size 1 MM	40.996
Hose cut off factor IN	3.380
Hose cut off factor MM	85.800
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	2.680
Product height mm	68.072
Product length in	5.940
Product length mm	150.876
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1
Working pressure max BAR	280
Working pressure max PSI	4050
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
