Danfoss 1E12FLB12

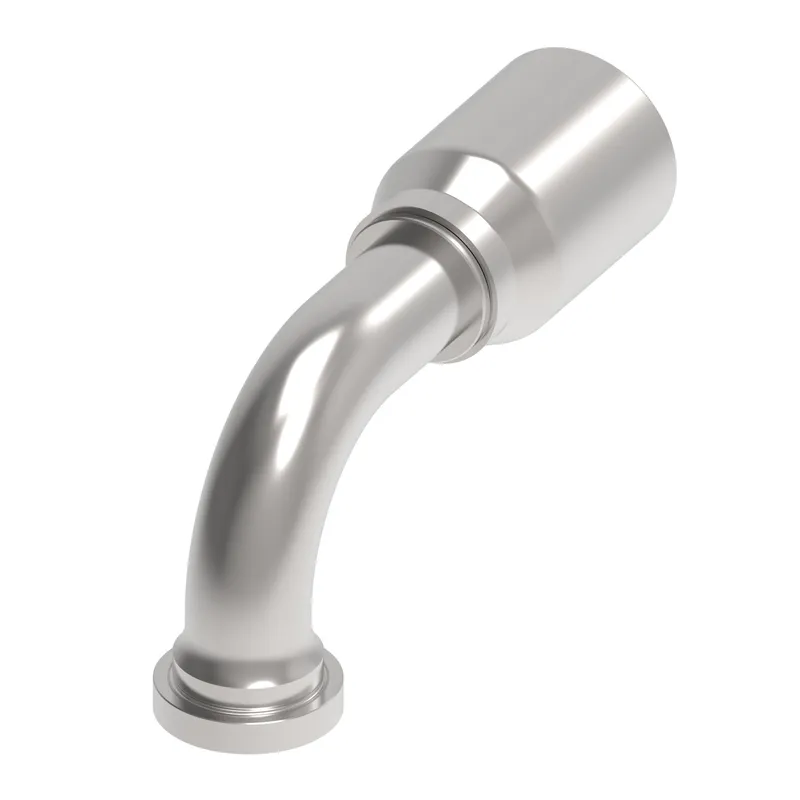

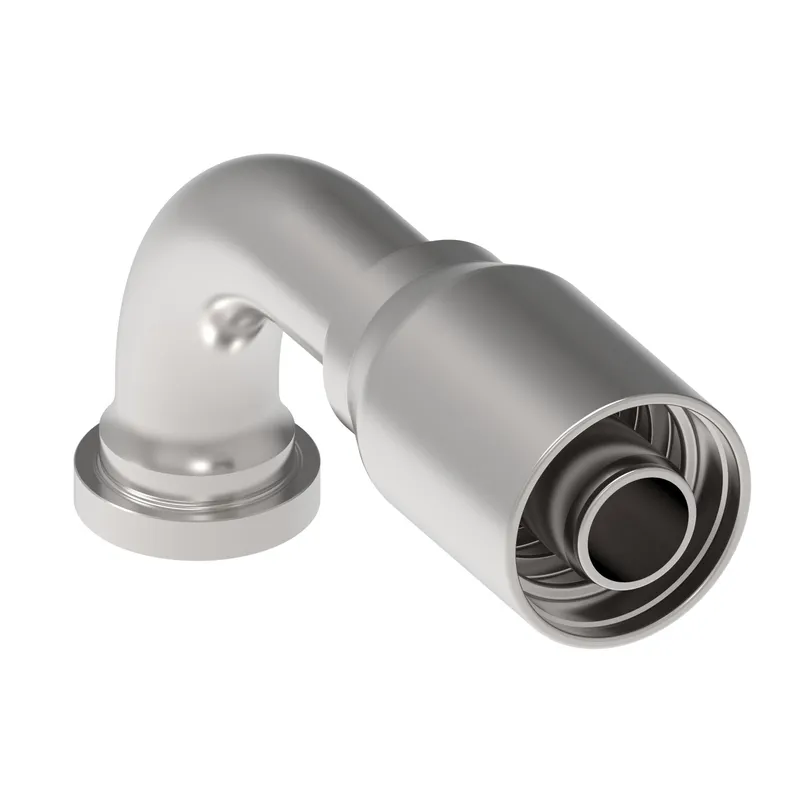

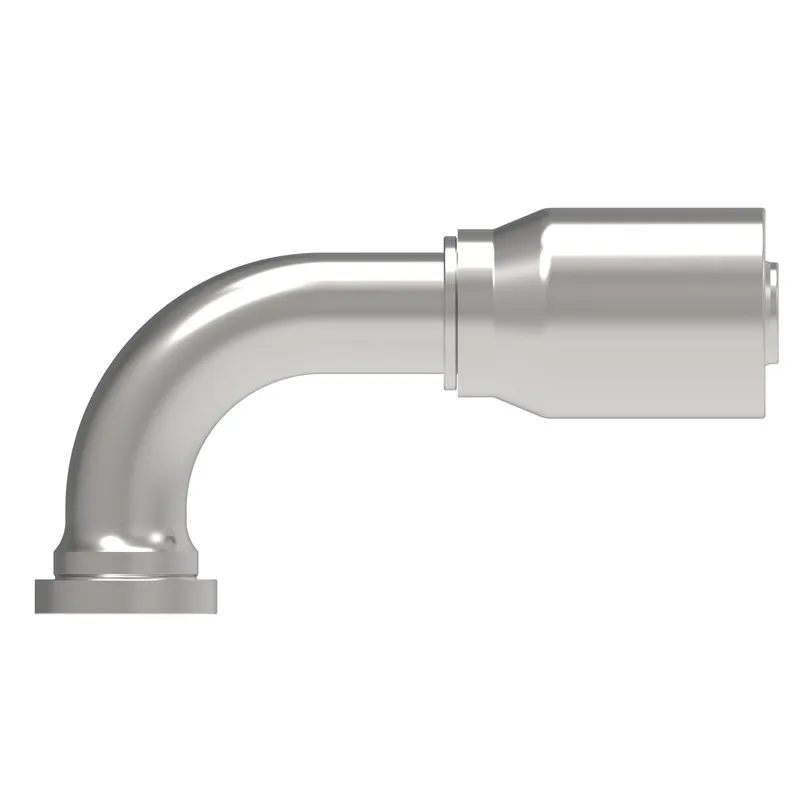

HOSE FTG, 1A/12, C61/12, CS, 90D

MPN: 1E12FLB12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E12FLB12?

Danfoss HOSE FTG, 1A/12, C61/12, CS, 90D, manufacturer part number 1E12FLB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131638
A dimension IN	4.270
A dimension MM	108.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
Drop dimension IN	2.320
Drop dimension MM	59.00
End size 1	-12
End type 1	Split flange code 61
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.000
Hose cut off factor IN	2.850
Hose cut off factor MM	72.300
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	2.320
Product height mm	58.928
Product length in	4.720
Product length mm	119.888
Product material	Carbon steel
Product width in	1.779
Product width mm	45.186 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	345
Working pressure max PSI	5000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
