Danfoss 1E16BF16

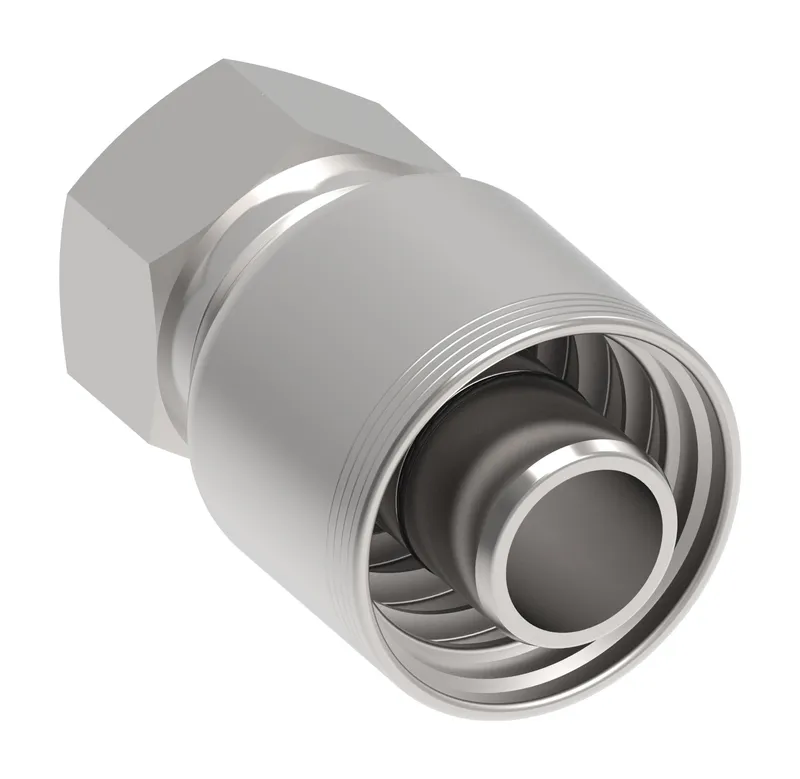

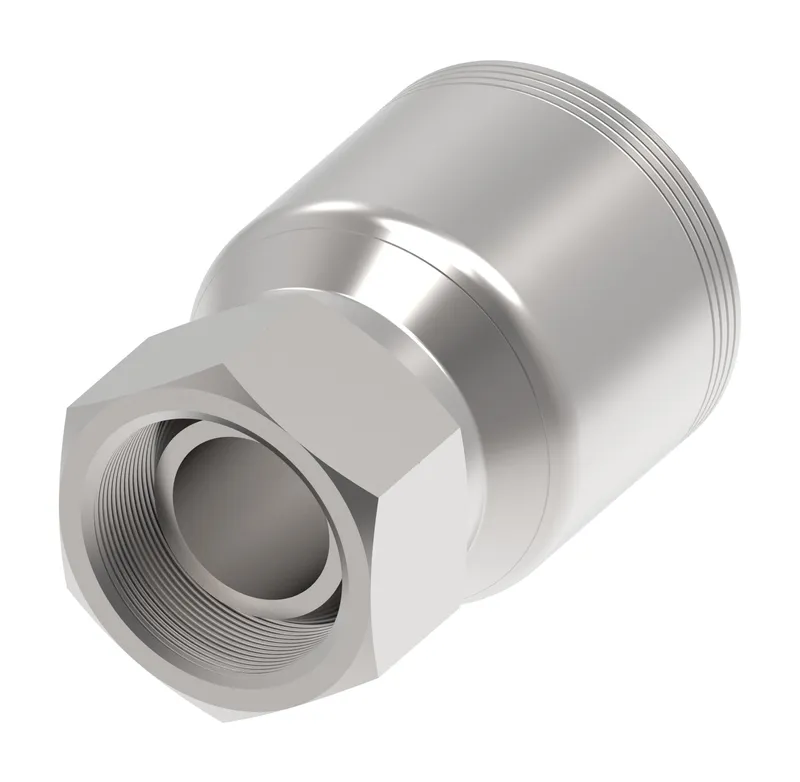

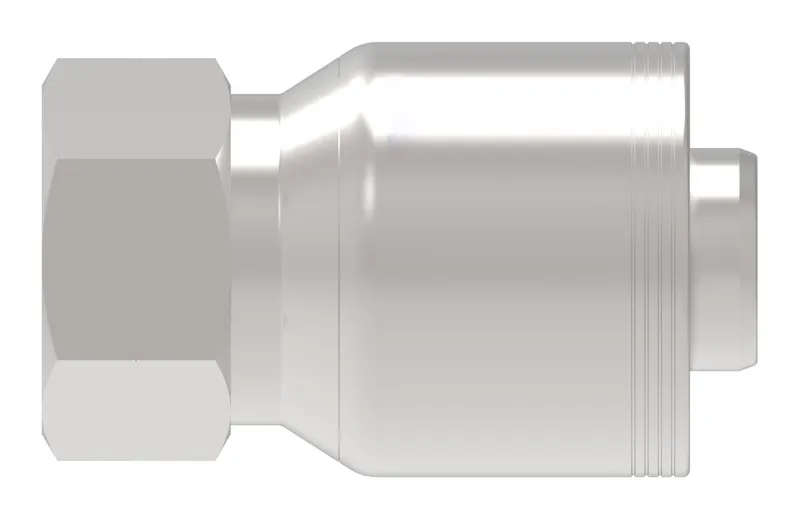

HOSE FTG, 1A/16, BF/16, CS, STR

MPN: 1E16BF16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E16BF16?

Danfoss HOSE FTG, 1A/16, BF/16, CS, STR, manufacturer part number 1E16BF16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131652
A dimension IN	2.800
A dimension MM	71.000
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
Drop dimension IN	1.270
Drop dimension MM	32.30
End size 1	-16
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hose cut off factor IN	0.760
Hose cut off factor MM	19.200
Hose size	-16
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	2.126
Product height mm	54.000
Product length in	4.210
Product length mm	106.934
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	280
Working pressure max PSI	4050
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1E16BF16: frequently asked questions

When can 1E16BF16 be shipped?

1E16BF16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E16BF16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E16BF16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E16BF16, subject to availability and destination.
