Danfoss 1E12FL12

HOSE FTG, 1A/12, C61/12, CS, STR

MPN
1E12FL12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

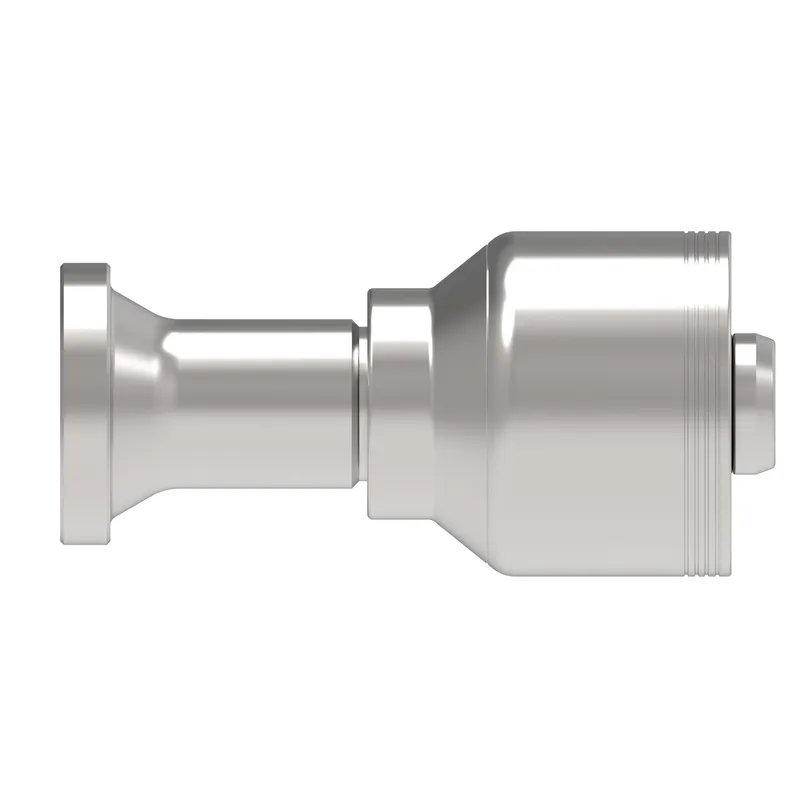

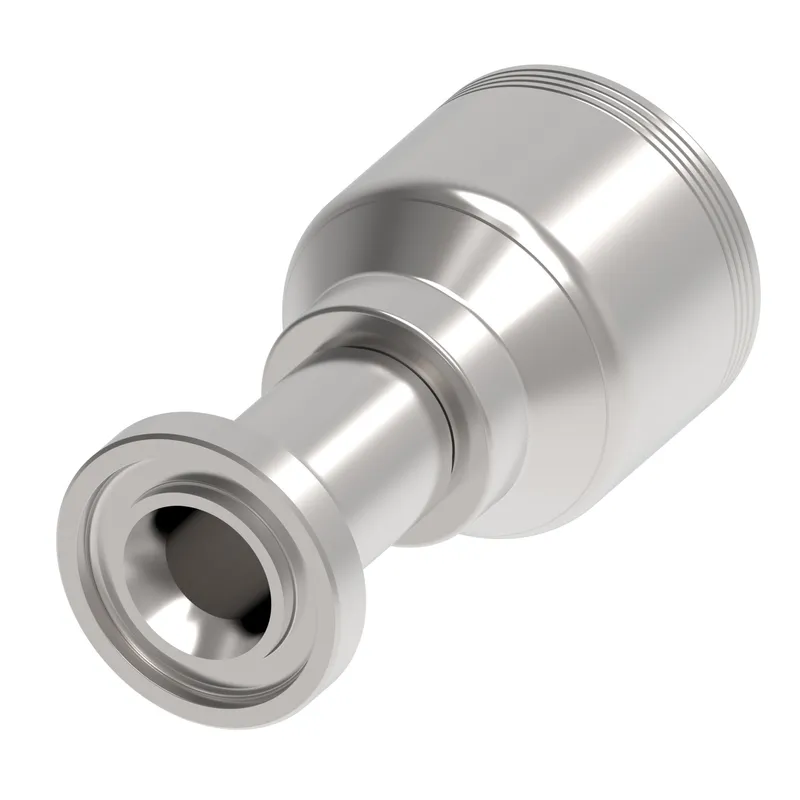

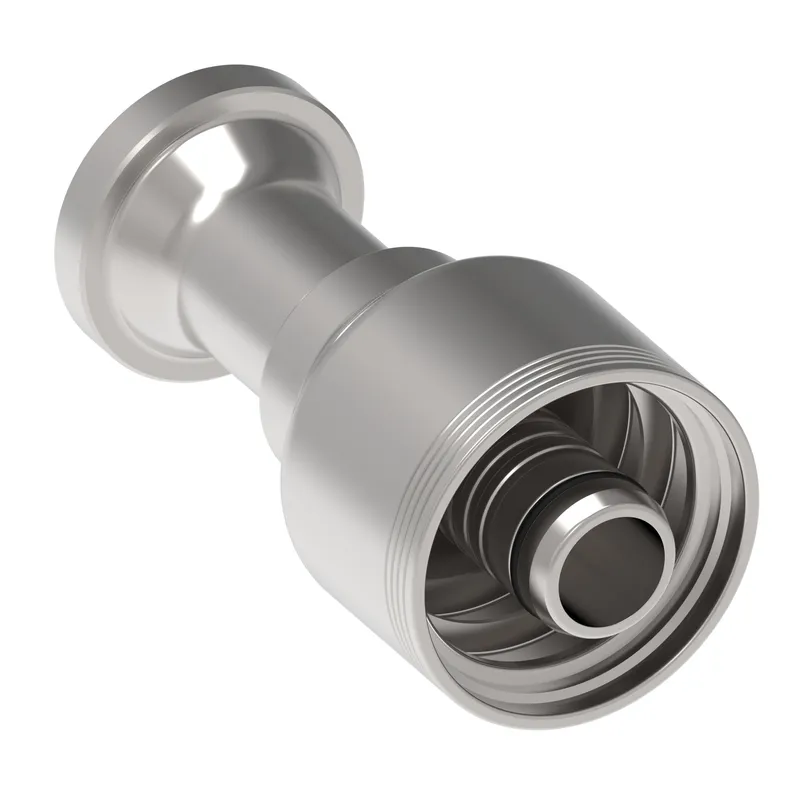

What is the Danfoss 1E12FL12?

Danfoss HOSE FTG, 1A/12, C61/12, CS, STR, manufacturer part number 1E12FL12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146131621
A dimension IN3.570
A dimension MM90.700
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Construction StyleCrimp
End size 1-12
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN2.150
Hose cut off factor MM54.500
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.834
Product height mm46.583
Product length in3.920
Product length mm99.568
Product materialCarbon steel
Product width in1.834
Product width mm46.586 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1E12FL12: frequently asked questions

When can 1E12FL12 be shipped?

1E12FL12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E12FL12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E12FL12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E12FL12, subject to availability and destination.
