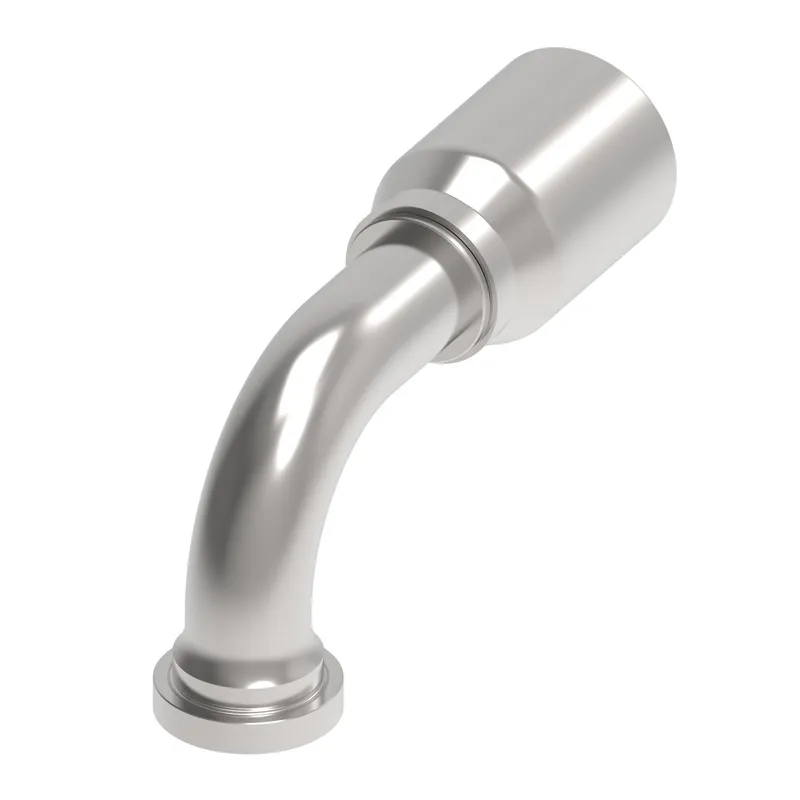

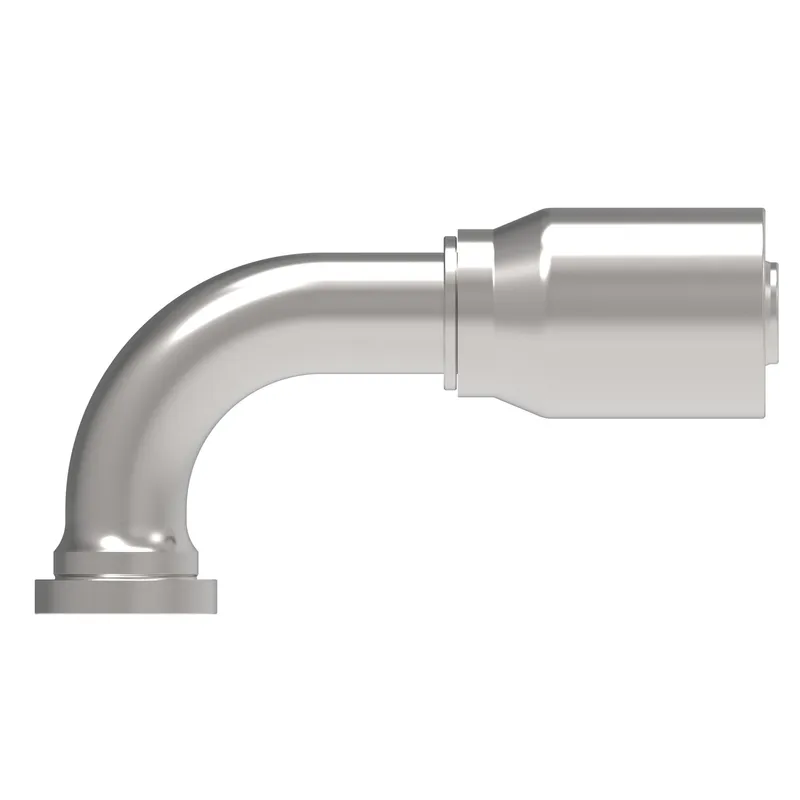

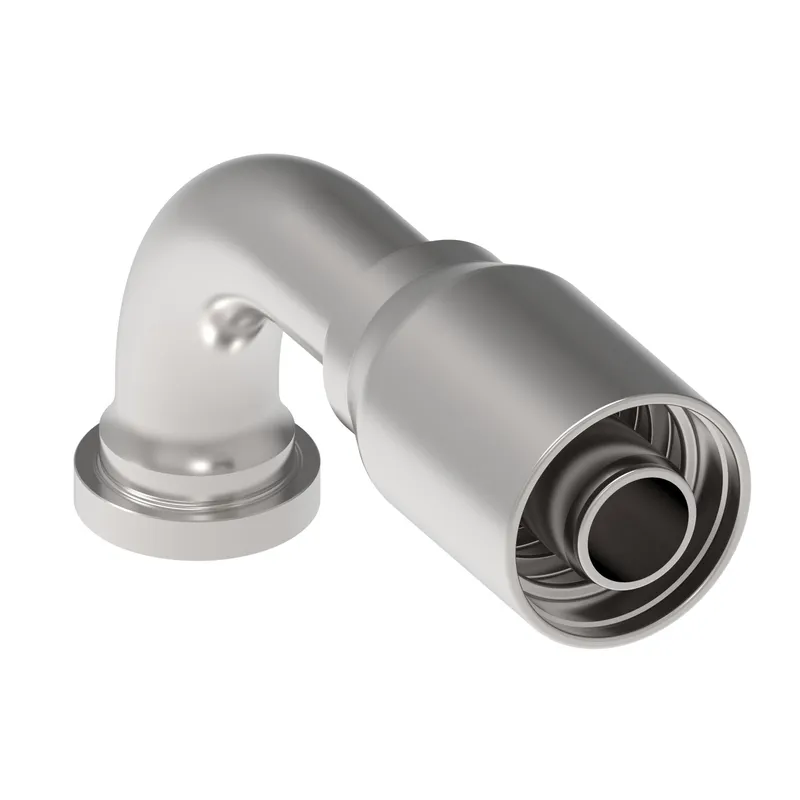

Danfoss 1E12FHB12

HOSE FTG, 1A/12, C62/12, CS, 90D

MPN
1E12FHB12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E12FHB12?

Danfoss HOSE FTG, 1A/12, C62/12, CS, 90D, manufacturer part number 1E12FHB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146131614
A dimension IN4.270
A dimension MM108.500
Angle shape90 Degree
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN0.75
Compatible tube OD MM19.050
Construction StyleCrimp
Drop dimension IN2.320
Drop dimension MM59.00
End size 1-12
End type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN2.850
Hose cut off factor MM72.300
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in2.320
Product height mm58.928
Product length in4.720
Product length mm119.888
Product materialCarbon steel
Product width in1.834
Product width mm46.586 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN0.750
Tube OD 1 MM19.050
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C126
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

1E12FHB12: frequently asked questions

When can 1E12FHB12 be shipped?

1E12FHB12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E12FHB12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E12FHB12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E12FHB12, subject to availability and destination.
