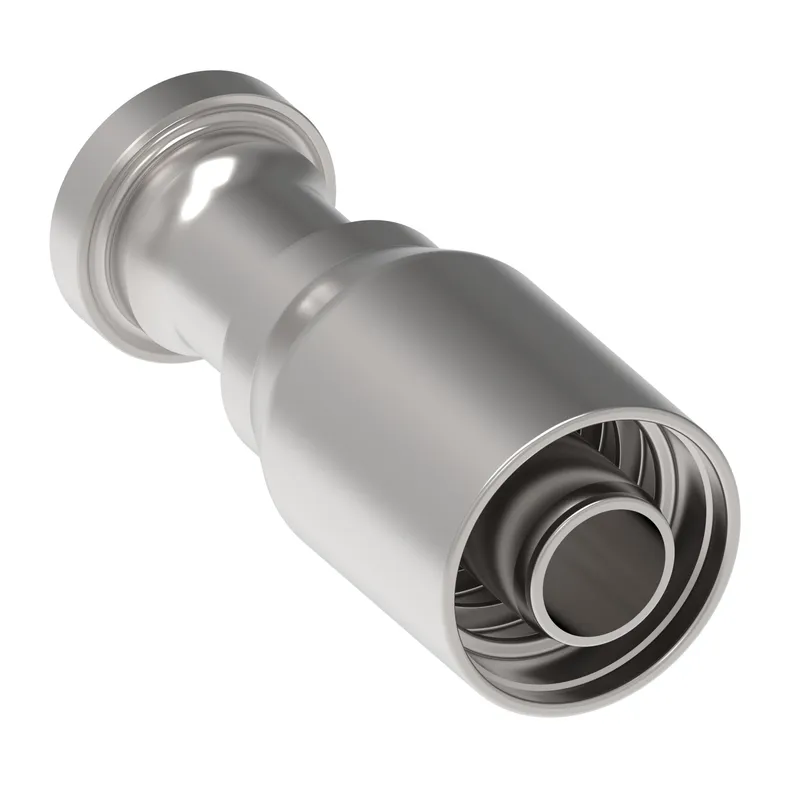

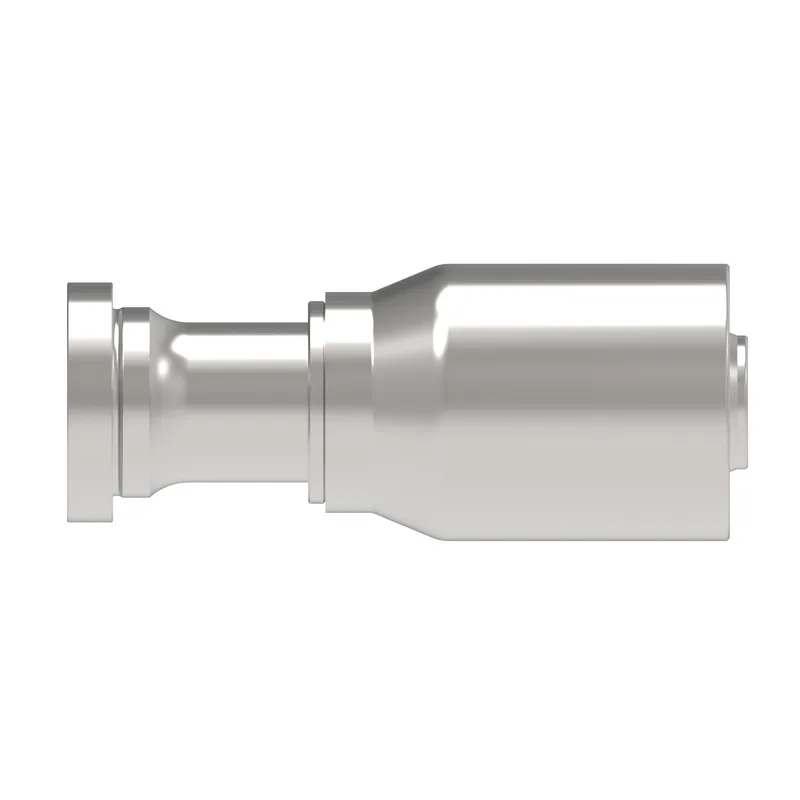

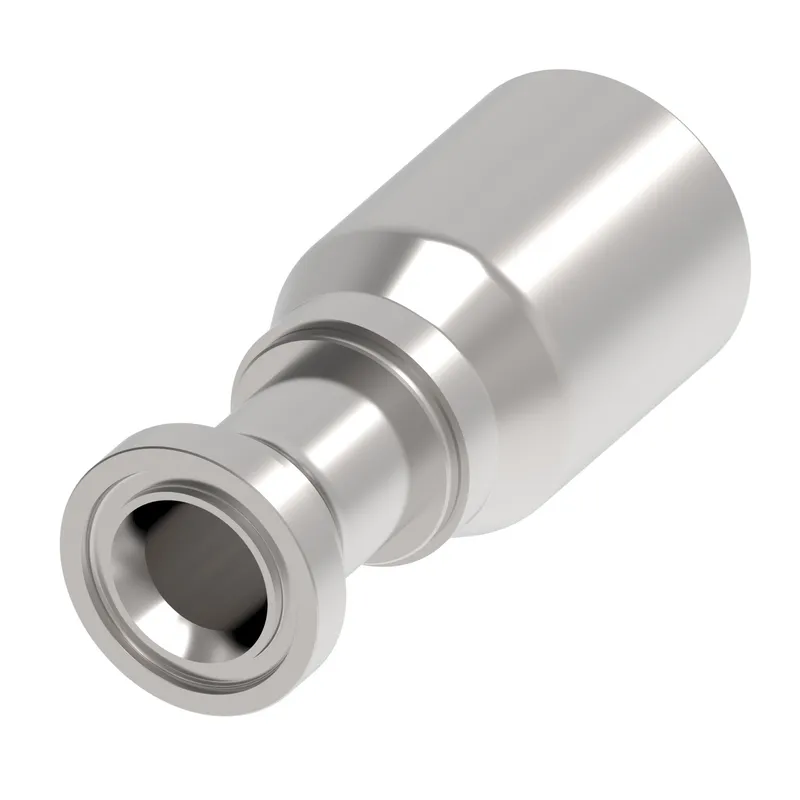

Danfoss 1E12FH12

HOSE FTG, 1A/12, C62/12, CS, STR

MPN: 1E12FH12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E12FH12?

Danfoss HOSE FTG, 1A/12, C62/12, CS, STR, manufacturer part number 1E12FH12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131591
A dimension IN	3.570
A dimension MM	90.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
End size 1	-12
End type 1	Split flange code 62
Finish plating	Dura-Kote
Hose cut off factor IN	2.150
Hose cut off factor MM	54.500
Hose size	-12
Inside diameter IN	0.5600
Inside diameter MM	14.2000
Product height in	1.630
Product height mm	41.402
Product length in	4.160
Product length mm	105.664
Product material	Carbon steel
Product width in	1.834
Product width mm	46.586 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-40
Working temperature min F	-40
