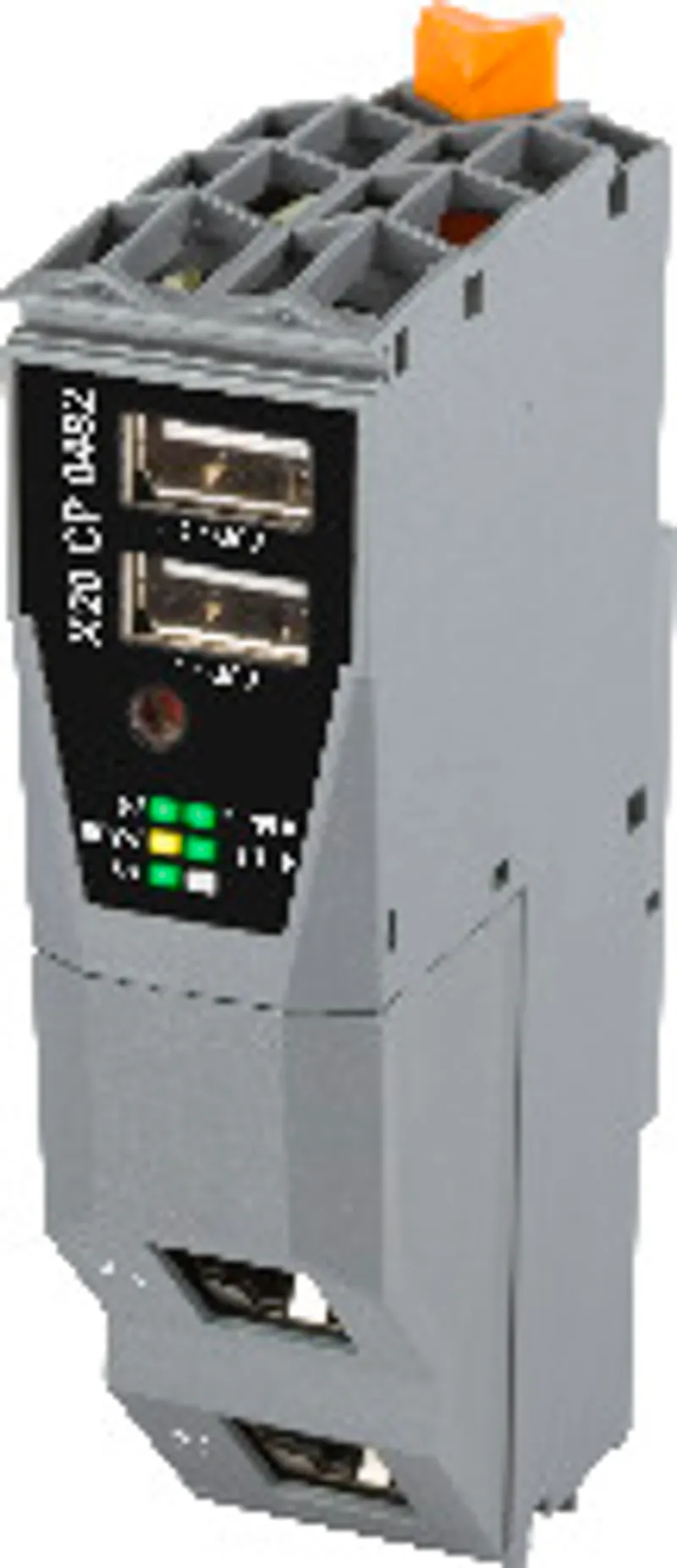

B&R X20CP0482
Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB
- MPN
- X20CP0482
- Category
- Compact-S PLC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20CP0482?
ARM Cortex-A9 processor with 300 MHz and integrated I/O processor
POWERLINK with onboard poll response chaining
Onboard Ethernet
2x onboard USB
128 MB DDR3 SDRAM
1 GB onboard flash drive
Fanless
No battery
Extremely compact
The controllers in the X20 Compact-S family are both powerful and compact. The fanless, battery-free design of these controllers means they are completely maintenance-free.
The X20CP0482 is equipped with an ARM Cortex- A9-300 processor, 128 MB RAM and 1 GB built-in flash drive. The FRAM for storing remanent variables has 16 kB available.
With POWERLINK, Ethernet, USB and RS232, the controller offers a wide range of communication options. An optional RS485 or CAN interface is available. If the application requires additional interfaces, the controller can be modularly expanded by one or two X20 interface slots. This allows the entire product range of X20 fieldbus interfaces to be used.
Specifications
Short description
| Interfaces | 1x Ethernet, 1x POWERLINK V2, 2x USB, 1x X2X Link |
| System module | Controller |
General information
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – Ethernet | Yes, using LED status indicator |
| Diagnostics – POWERLINK | Yes, using LED status indicator |
| Diagnostics – Temperature | Yes, using software register |
| Support – Controller redundancy | No |
| Support – Storage health data support | Yes |
| Support – ACOPOS support | Yes |
| Support – Visual Components support | Yes |
| Support – Multicore support | No |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| B&R ID code | 0xE951 |
| Cooling | Fanless |
| Status indicators | CPU function, Ethernet, POWERLINK |
| Power consumption | 2.7 W (note: Without USB interface.) |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Controller
| Processor – Data code | 32 kB |
| Processor – Program code | 32 kB |
| Processor – Type | ARM Cortex-A9 |
| Processor – Clock frequency | 300 MHz |
| Processor – L2 cache | 512 kB |
| Standard memory – RAM | 128 MB DDR3 SDRAM |
| Application memory – Guaranteed | 40 TB |
| Application memory – Results for 5 years | 21.9 GB/day |
| Application memory – Type | 1 GB eMMC flash memory |
| Application memory – Data retention | 10 years |
| Application memory – Guaranteed erase/write cycles | 20,000 |
| Application memory – Error-correcting code (ECC) | Yes |
| Slots for interface modules – X20BB5x | 0 |
| Slots for interface modules – X20BB6x | 1 |
| Slots for interface modules – X20BB7x | 2 |
| Real-time clock | Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C |
| Floating point unit (FPU) | Yes |
| Integrated I/O processor | Processes I/O data points in the background |
| Remanent variables | 16 kB FRAM, retention >10 years (note: The memory size for remanent variables is configurable in Automation Studio.) |
| Shortest task class cycle time | 1 ms |
| Typical instruction cycle time | 0.0247 µs |
Interfaces
| Interface IF2 – Physical layer | 10BASE-T/100BASE-TX |
| Interface IF2 – Half-duplex | Yes |
| Interface IF2 – Full-duplex | Yes |
| Interface IF2 – Autonegotiation | Yes |
| Interface IF2 – Auto-MDI/MDIX | Yes |
| Interface IF2 – Signal | Ethernet |
| Interface IF2 – Variant | 1x RJ45 shielded |
| Interface IF2 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF2 – Transfer rate | 10/100 Mbit/s |
| Interface IF3 – Physical layer | 100BASE-TX |
| Interface IF3 – Half-duplex | Yes |
| Interface IF3 – Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Interface IF3 – Autonegotiation | Yes |
| Interface IF3 – Auto-MDI/MDIX | Yes |
| Interface IF3 – Fieldbus | POWERLINK V2 managing or controlled node |
| Interface IF3 – Type | Type 6Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> (note: For additional information, see section) |
| Interface IF3 – Variant | 1x RJ45 shielded |
| Interface IF3 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF3 – Transfer rate | 100 Mbit/s |
| Interface IF4 – Type | USB 1.1/2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Max. output current | 0.2 A |
| Interface IF5 – Type | USB 1.1/2.0 |
| Interface IF5 – Variant | Type A |
| Interface IF5 – Max. output current | 0.2 A |
| Interface IF6 – Fieldbus | X2X Link master |
| On base module | X20BBx2: Compact-S PLC base module with integrated RS232 interface; X20BBx3: Compact-S PLC base module with integrated RS485 interface; X20BBx7: Compact-S PLC base module with integrated RS232 and CAN bus interface |
Electrical properties
| Electrical isolation | Ethernet (IF2) and POWERLINK (IF3) isolated from each other, from other interfaces and from PLC; X2X (IF6) isolated from other interfaces and PLC: Yes, with X20PS9600 / No, with X20PS9602; USB (IF4, IF5) not isolated from each other and PLC |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating" in the X20PS960x data sheet. |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch – X20BB5x | 37.5 +0.2 mm (note: The pitch is based on the width of the Compact-S PLC base.) |
| Pitch – X20BB6x | 62.5 +0.2 mm (note: The pitch is based on the width of the Compact-S PLC base.) |
| Pitch – X20BB7x | 87.5 +0.2 mm (note: The pitch is based on the width of the Compact-S PLC base.) |
| Note | Order 1x terminal block X20TB12 separately.; Order 1x power supply module X20PS9600 or X20PS9602 separately.; Order 1x Compact-S PLC base X20BB5x, X20BB6x or X20BB7x separately. |
Accessories
Required accessories (order separately)
| X20PS9602 | System modules for Compact-S PLC — Supply for Compact-S CPU, X2X Link and internal I/O power supply; Cost-effective power supply module for small X20 systems; No galvanic iso… |
| X20PS9600 | System modules for Compact-S PLC — Supply for Compact-S CPU, X2X Link and internal I/O power supply; Galvanic isolation of supply and CPU / X2X Link power supply; Redundancy… |
| X20BB77 | System modules for Compact-S PLC — Base for X20 Compact-S controllers; 2 slots for X20 interface modules; RS232 connection; CAN bus connection; Integrated terminating resisto… |
| X20BB72 | System modules for Compact-S PLC — Base for X20 Compact-S controllers; 2 slots for X20 interface modules; RS232 connection The bus module is a base for all X20 Compact-S cont… |
| X20BB67 | System modules for Compact-S PLC — Base for X20 Compact-S controllers; 1 slot for X20 interface modules; RS232 connection; CAN bus connection; Integrated terminating resistor… |
| X20BB63 | System modules for Compact-S PLC — Base for X20 Compact-S controllers; 1 slot for X20 interface modules; RS485 connection; Integrated terminating resistor The bus base is a b… |
| X20BB62 | System modules for Compact-S PLC — Base for X20 Compact-S controllers; 1 slot for X20 interface modules; RS232 connection The bus module is the base for all X20CP048x Compact… |
| X20BB57 | System modules for Compact-S PLC — Base for all X20 Compact-S controllers; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is… |
| X20BB53 | System modules for Compact-S PLC — Base for all X20 Compact-S controllers; RS485 connection; Integrated terminating resistor The bus base is the basis for all X20 Compact-S c… |
| X20BB52 | System modules for Compact-S PLC — Base for all X20 Compact-S controllers; RS232 connection The bus module is the base for all X20 Compact-S controllers. The left and right e… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (1)
| 0TGF016.01 | Technology Guard — Technology Guard (MSD) with integrated flash drive, 16 GB (MLC) |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (13)
- 2226379 CSA Certificate of Compliance X20 X67
- 64331_A1 BV Certificate of Compliance X20
- ABS Certificate of Product Design Assessment - X20 IO Series
- CCS Type Approval Certificate - X20
- E115267 UL Certificate of Compliance X20
- EU Data Act - X20 PLC - Connected Product Information Notice
- EU Declaration ATEX X20
- EU Declaration of conformity PLC X20
- KR Type Approval Certificate MIL39390-AC003 (X20 System)
- Lloyds Register (X20 only)
- RINA Type Approval Certificate - X20 / Power Panel T30
- TAA00000BJ DNV Type Approval Certificate X20
- UK Declaration PLC X20
