Compact-S PLC Parts

B&R

Interfaces, 1x Ethernet, 2x USB, 1x X2X Link

B&R

Interfaces, 1x Ethernet, 2x USB, 1x X2X Link

B&R

Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB

B&R

Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB

B&R

Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB

B&R

Interfaces, 1x Ethernet (2-port switch), 2x USB, 1x X2X Link

B&R

Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB

Compare Compact-S PLC

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power consumption	Processor – Clock frequency	Application memory – Type	Shortest task class cycle time	Typical instruction cycle time

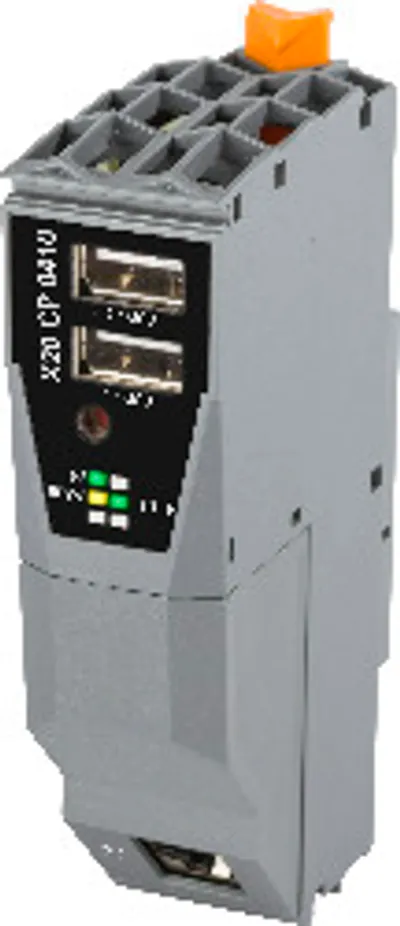

X20CP0410	2.2 W (note: Without USB interface.)	166 MHz (compatible)	256 MB eMMC flash memory	4 ms	0.0446 µs
X20CP0411	2.2 W (note: Without USB interface.)	240 MHz	512 MB eMMC flash memory	2 ms	0.0309 µs
X20CP0482	2.7 W (note: Without USB interface.)	300 MHz	1 GB eMMC flash memory	1 ms	0.0247 µs
X20CP0483	2.9 W (note: Without USB interface.)	500 MHz	1 GB eMMC flash memory	0.8 ms	0.0145 µs

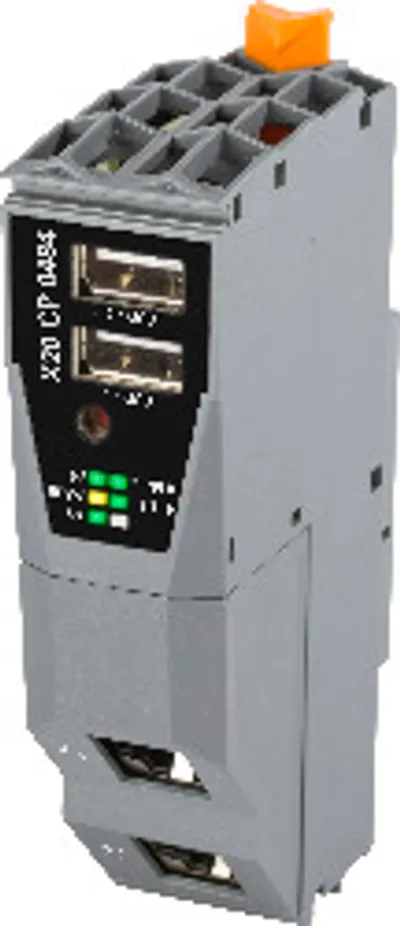

X20CP0484	2.95 W (note: Without USB interface.)	667 MHz	2 GB eMMC flash memory	0.4 ms	0.0106 µs

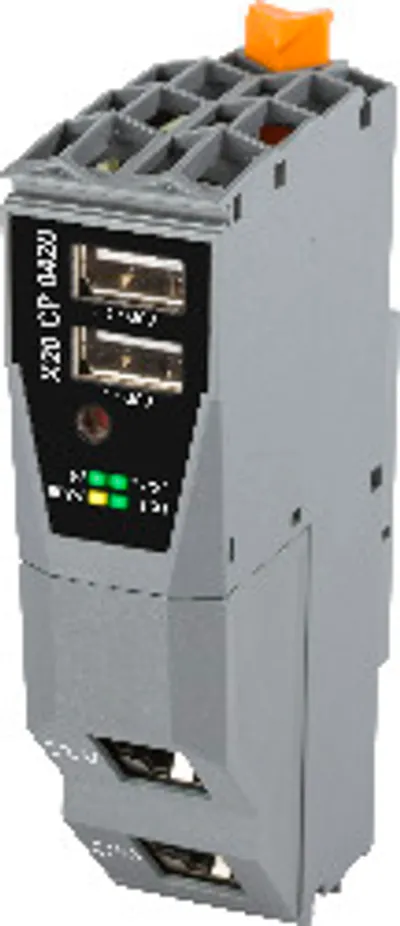

X20CP0420	2.5 W (note: Without USB interface.)	166 MHz (compatible)	256 MB eMMC flash memory	4 ms	0.0446 µs
X20CP0484-1	2.97 W (note: Without USB interface.)	667 MHz	2 GB eMMC flash memory	0.4 ms	0.0106 µs

System module	Controller
Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – Ethernet	Yes, using LED status indicator
Diagnostics – Temperature	Yes, using software register
Support – Controller redundancy	No
Support – Storage health data support	Yes
Support – ACOPOS support	Yes
Support – Visual Components support	Yes
