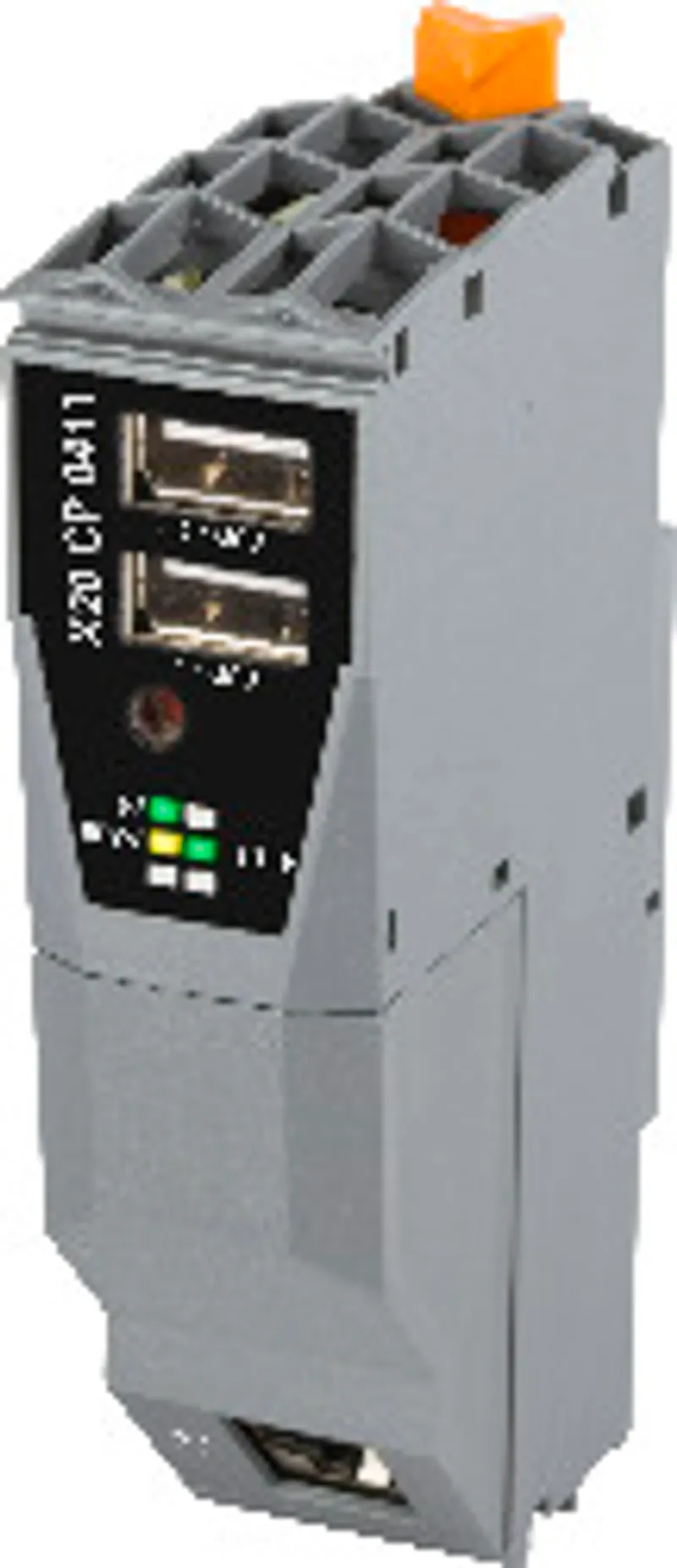

B&R X20CP0411
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Compact-S PLC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20CP0411 be shipped?
X20CP0411 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20CP0411 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20CP0411 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP0411, subject to availability and destination.
ARM Cortex-A9 processor with 240 MHz and integrated I/O processorOnboard Ethernet2x onboard USB128 MB DDR3 SDRAM512 MB onboard flash driveFanlessNo batteryExtremely compact The controllers in the X20 Compact-S family are both powerful and compact. The fanless, battery-free design of these controllers means they are completely maintenance-free.The X20CP0411 is equipped with an ARM Cortex-A9-240 processor, 128 MB RAM and 512 MB built-in flash drive. The FRAM for storing remanent variables has 16 kB available.With Ethernet, USB and RS232, the controller offers plenty of communication options. An optional RS485 or CAN interface is available.
Specifications
Specifications
| Interfaces | 1x Ethernet, 2x USB, 1x X2X Link |
| System module | Controller |
| B&R ID code | 0xE950 |
| Cooling | Fanless |
| Status indicators | CPU function, Ethernet |
| CPU function | Yes, using LED status indicator |
| Ethernet | Yes, using LED status indicator |
| Temperature | Yes, using software register |
| Controller redundancy | No |
| Storage health data support | Yes |
| ACOPOS support | Yes |
| Visual Components support | Yes |
| Power consumption | 2.2 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| Real-time clock | Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C |
| FPU | Yes |
| Type | USB 1.1/2.0 |
| Clock frequency | 240 MHz |
| Data code | 32 kB |
| Program code | 32 kB |
| L2 cache | 512 kB |
| Integrated I/O processor | Processes I/O data points in the background |
| Remanent variables | 16 kB FRAM, retention >10 years |
| Shortest task class cycle time | 2 ms |
| Typical instruction cycle time | 0.0309 µs |
| RAM | 128 MB DDR3 SDRAM |
| Data retention | 10 years |
| Guaranteed | 40 TB |
| Results for 5 years | 21.9 GB/day |
| Guaranteed erase/write cycles | 20,000 |
| Error-correcting code (ECC) | Yes |
| Signal | Ethernet |
| Variant | Type A |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 10/100 Mbit/s |
| Physical layer | 10BASE-T/100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Max. output current | 0.2 A |
| Fieldbus | X2X Link master |
| On base module | X20BB52: Compact-S PLC base module with integrated RS232 interface X20BB53: Compact-S PLC base module with integrated RS485 interface X20BB57: Compact-S PLC base module with integrated RS232 and CAN bus interface |
| Electrical isolation | Ethernet (IF2) isolated from other interfaces and PLC X2X (IF6) isolated from other interfaces and PLC: Yes, with X20PS9600 / No, with X20PS9602 USB (IF4, IF5) not isolated from each other and PLC |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating" in the X20PS960x data sheet. |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9600 or X20PS9602 separately. Order 1x Compact-S PLC base X20BB5x separately. |
| X20BB5x | 37.5+0.2 mm |
