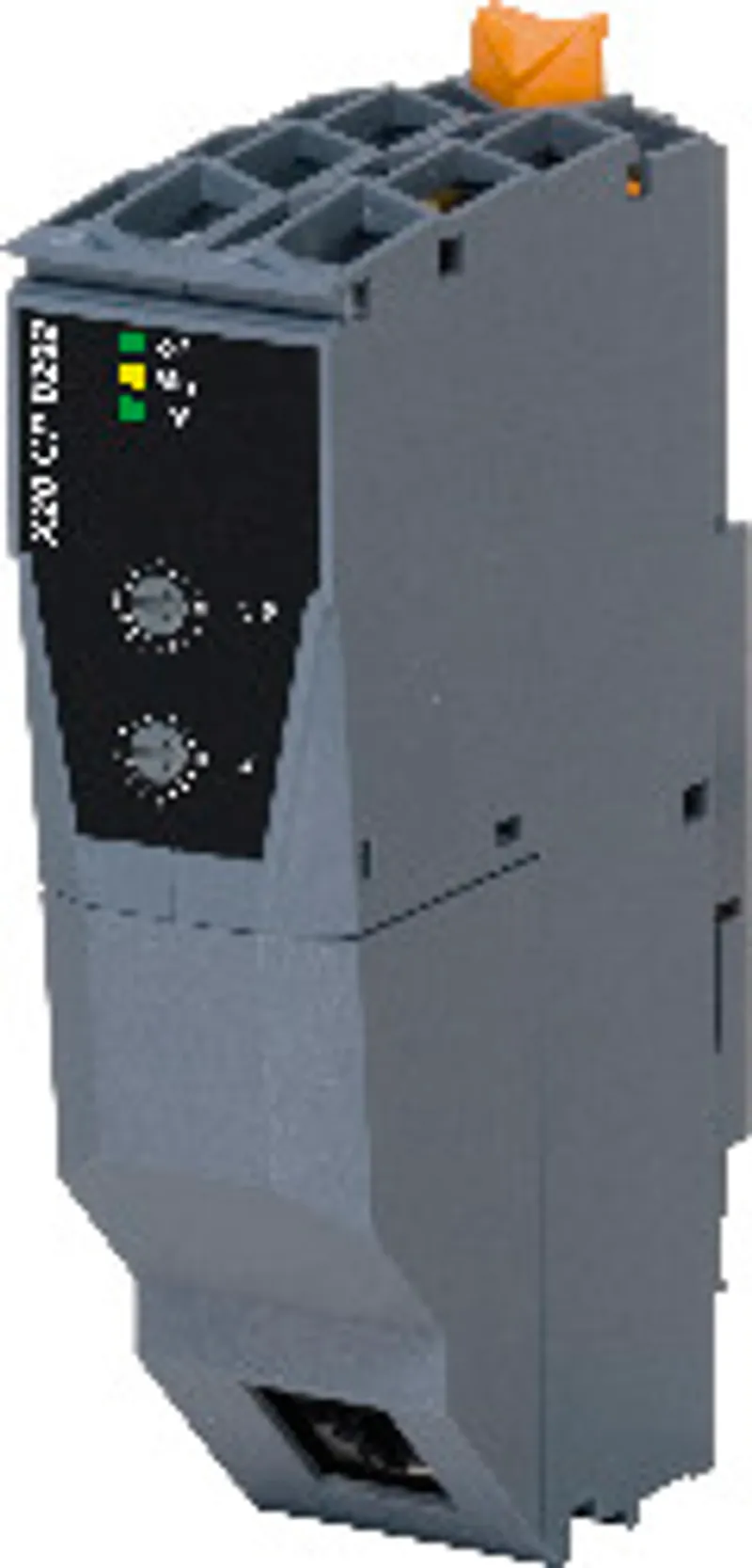

B&R X20CP0292
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20CP0292 be shipped?
X20CP0292 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20CP0292 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20CP0292 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP0292, subject to availability and destination.
Embedded µP25 with additional I/O processor750 kB User SRAM3 MB User FlashPROMOnboard EthernetOnly 37.5 mm wideBattery-free The X20CP0292 is the most powerful of the X20 Compact CPUs. Equipped with Embedded μP 25 and additional memory, it is predestined for basic drive and visualization applications. The network capability of the CPU is ensured by an onboard Ethernet interface.
Specifications
Specifications
| Interfaces | 1x onboard Ethernet |
| System module | CPU |
| B&R ID code | 0x22A6 |
| Status indicators | CPU function, Ethernet |
| CPU function | Yes, using LED status indicator |
| Ethernet | Yes, using LED status indicator |
| Overtemperature | Yes, using software |
| Temperature sensor | Yes |
| ACOPOS support | Yes, via CAN bus |
| Visual Components support | Yes |
| Power consumption | 3 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
| Real-time clock | Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C |
| Type | Embedded µP 25 |
| Integrated I/O processor | Processes I/O data points in the background |
| Backup battery | No |
| Shortest task class cycle time | 2 ms |
| Typical instruction cycle time | 0.5 µs |
| Retention time | >10 years |
| Memory | 2.75 kB FRAM |
| User PROM | 3 MB FlashPROM |
| User RAM | 750 kB SRAM |
| Signal | Ethernet |
| Variant | 1x RJ45 shielded |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Physical layer | 100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | No |
| Autonegotiation | No |
| Auto-MDI/MDIX | Yes |
| X20BB22 | Compact CPU base module with integrated RS232 interface |
| X20BB27 | Compact CPU base module with integrated RS232 and CAN interface |
| Electrical isolation | PLC isolated from Ethernet (IF2) |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | - |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9500 or X20PS9502 separately. Order 1x Compact CPU base X20BB22 or X20BB27 separately. |
| Pitch | 37.5+0.2 mm |
