B&R X20BB63
Bus module, X20 Compact-S PLC base - backplane for…
- MPN
- X20BB63
- Category
- System modules for Compact-S PLC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20BB63?

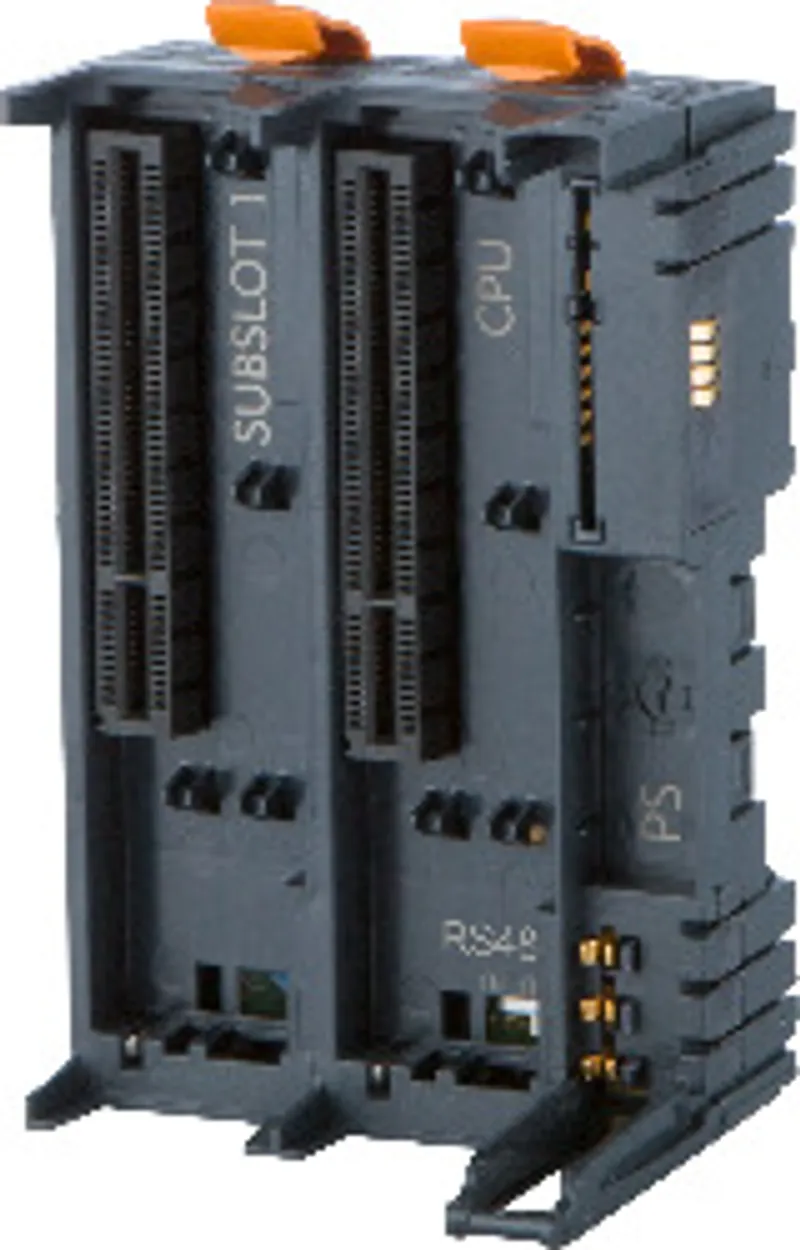

Base for X20 Compact-S controllers
1 slot for X20 interface modules
RS485 connection
Integrated terminating resistor
The bus base is a base for all X20 Compact-S controllers with the designation X20CP048x. It is equipped with 1 slot for X20 interface modules.
The left and right end cover plates are included in delivery.
Specifications
Short description
| Bus module | X20 Compact-S PLC base - backplane for Compact-S PLC and Compact-S PLC power supply module and X20 interface module |
| Interfaces | 1x RS485 connection |
General information
| Power consumption – Bus | 0.94 W |
| Power consumption – Internal I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| B&R ID code | 0x2A59 |
| Additional power dissipation caused by actuators (resistive) [W] | - |
I/O power supply
| Nominal voltage | 24 VDC |
| Permissible contact load | 10 A |
Electrical properties
| Electrical isolation | Bus not isolated from RS485 |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Left and right X20 end cover plates included in delivery |
| Pitch | 62.5 +0.2 mm |
